1990 Kawasaki Ninja® 250R Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

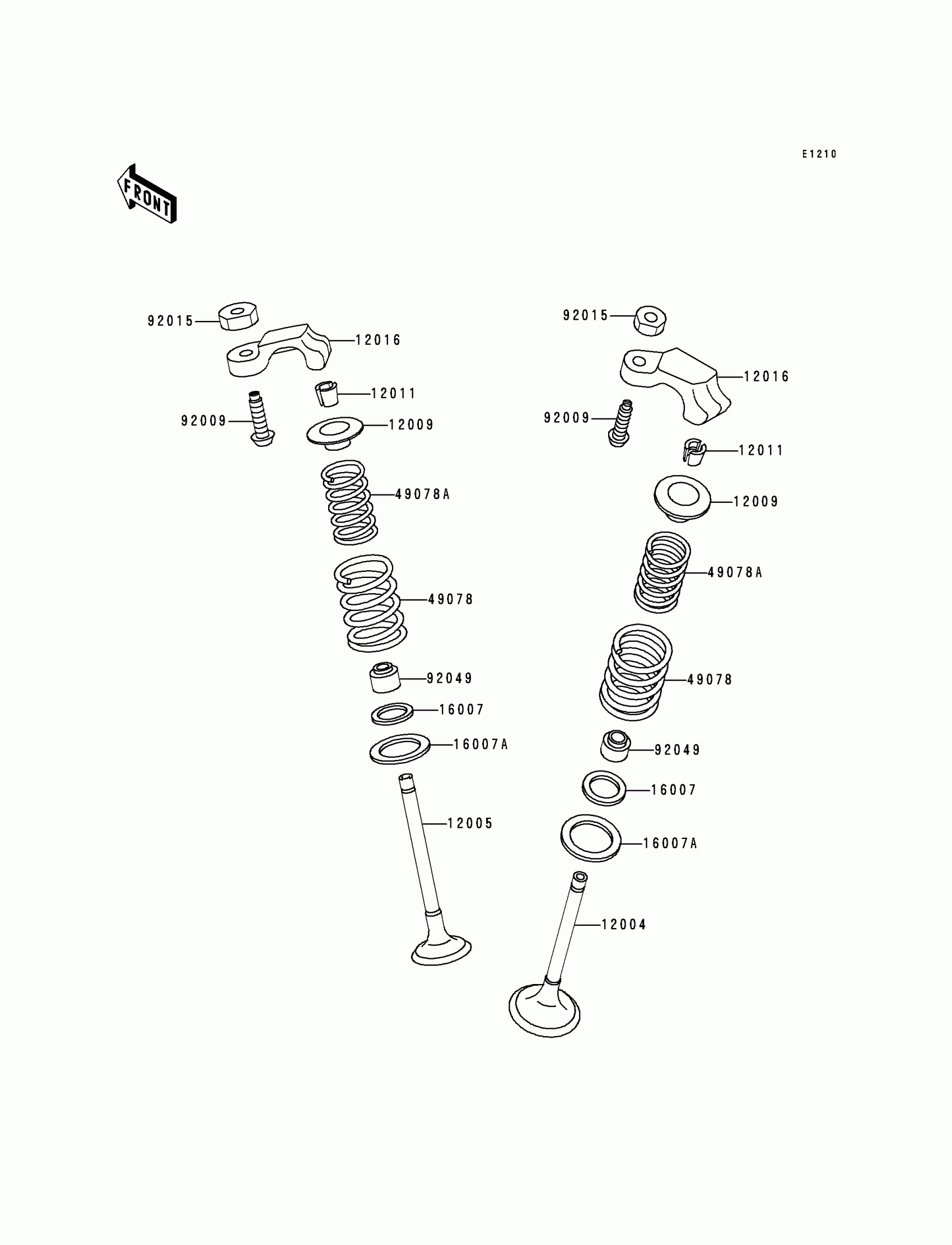

1990 Kawasaki Ninja® 250R Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1074

1

$42.96

In stock

12005

VALVE-EXHAUST

12005-1091

1
Out of stock

12009

1

$8.16

In stock

12011

COLLET

12011-1051

1

$1.64

In stock

12016

ARM-ROCKER

12016-1067

1

$91.59

In stock

16007

1

$4.85

In stock

16007A

1

$4.88

In stock

49078

SPRING-ENGINE VALVE

49078-1078

1

$16.03

In stock

49078A

SPRING-ENGINE VALVE

49078-1079

1

$16.03

In stock

92009

SCREW,6MM

92009-1424

1
Out of stock

92015

NUT,6MM

92015-1586

1

$5.59

In stock

92049

SEAL-OIL,VSB58.558

92049-1218

1
Out of stock
