1987 Kawasaki Ninja® 250R Cylinder Head Diagram

← All diagrams

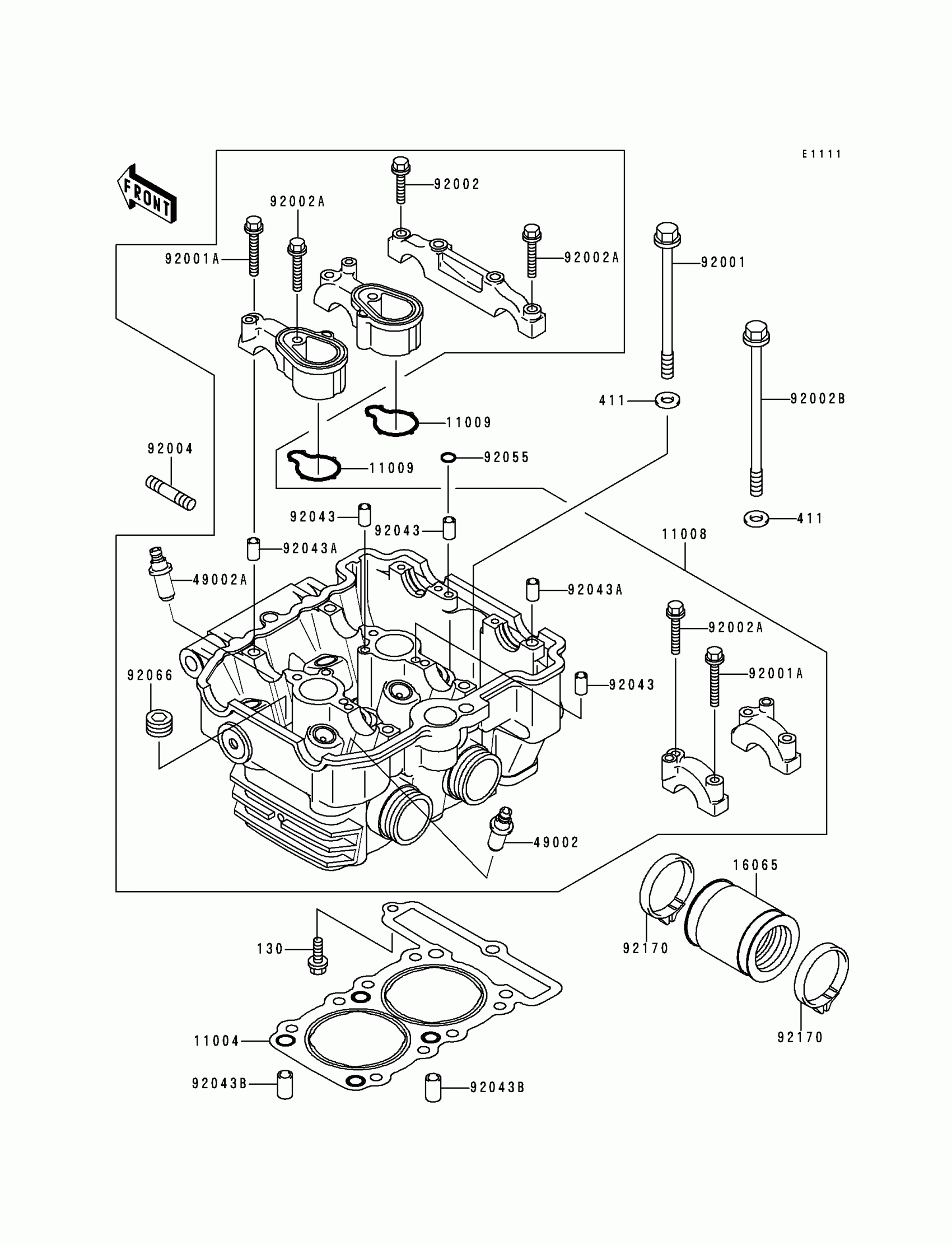

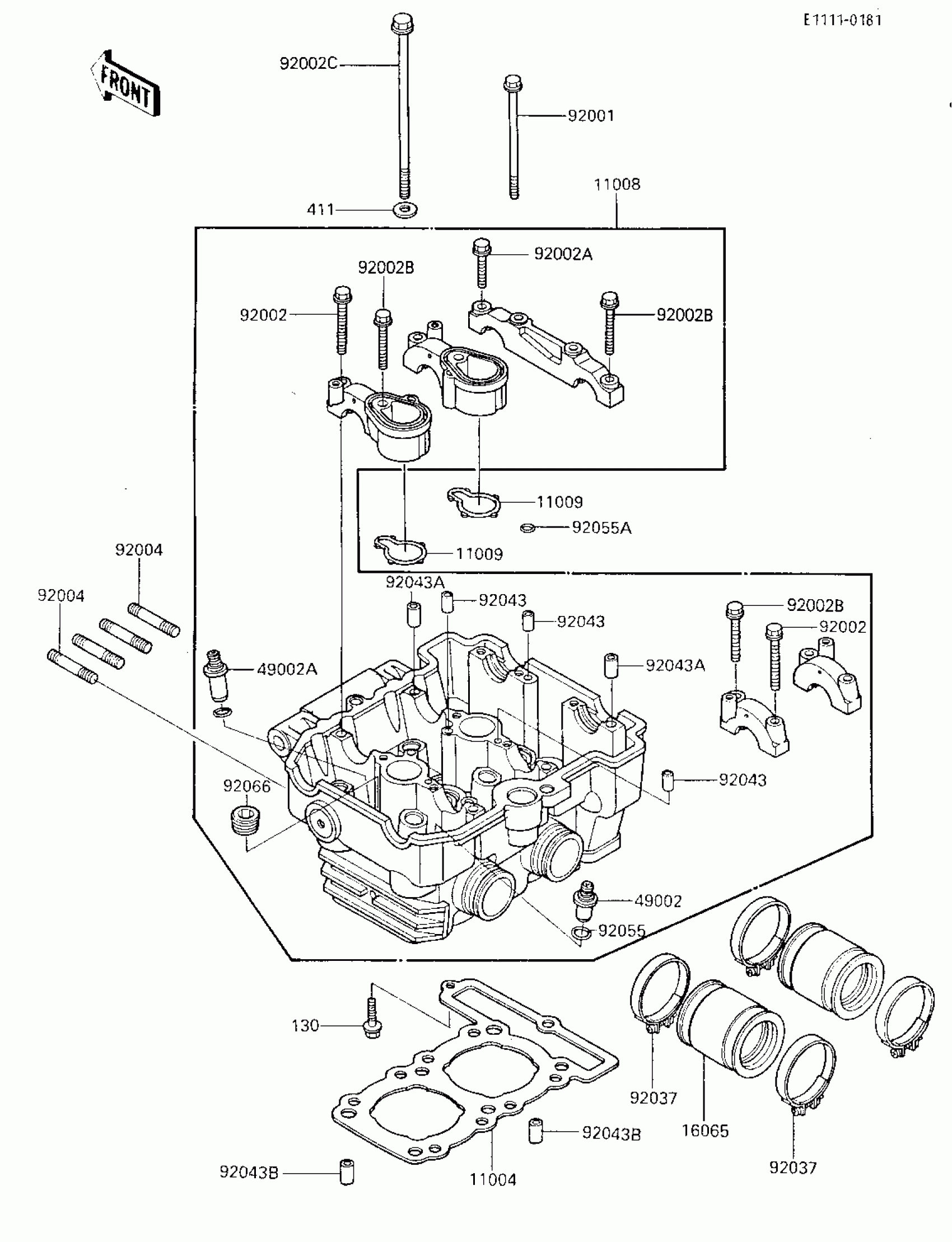

Find the part on the Cylinder Head diagram for your 1987 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 250R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1207

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1192

1
Out of stock

11009

GASKET,CAMSHAFT BRACKET

11009-1573

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1141

1
Out of stock

49002

GUIDE-VALVE,INTAKE

49002-1070

1
Out of stock

49002A

GUIDE-VALVE,EXHAUST

49002-1071

1
Out of stock

92001

BOLT,8X115

92001-1481

1
Out of stock

92002

BOLT,6X46

92001-1872

1
Out of stock

92002A

BOLT,6X30

92002-1755

1
Out of stock

92002B

BOLT,6X40

92002-1756

1
Out of stock

92002C

BOLT,8X146

92002-1832

1
Out of stock

92004

STUD,6X27

92004-066

1
Out of stock

92037

CLAMP

92037-1326

1
Out of stock

92043

PIN,4.2X6X12

92043-1262

1
Out of stock

92043A

PIN,6.2X8X14

92043-1263

1
Out of stock

92043B

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,VALVE GUIDE

92055-1177

1
Out of stock

92055A

RING-O,5.5X1.5

92055-1339

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-1253

1
Out of stock

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

411

WASHER PLAIN 8MM

411B0800

1
Out of stock
