1987 Kawasaki Ninja® 250R Crankcase Diagram

← All diagrams

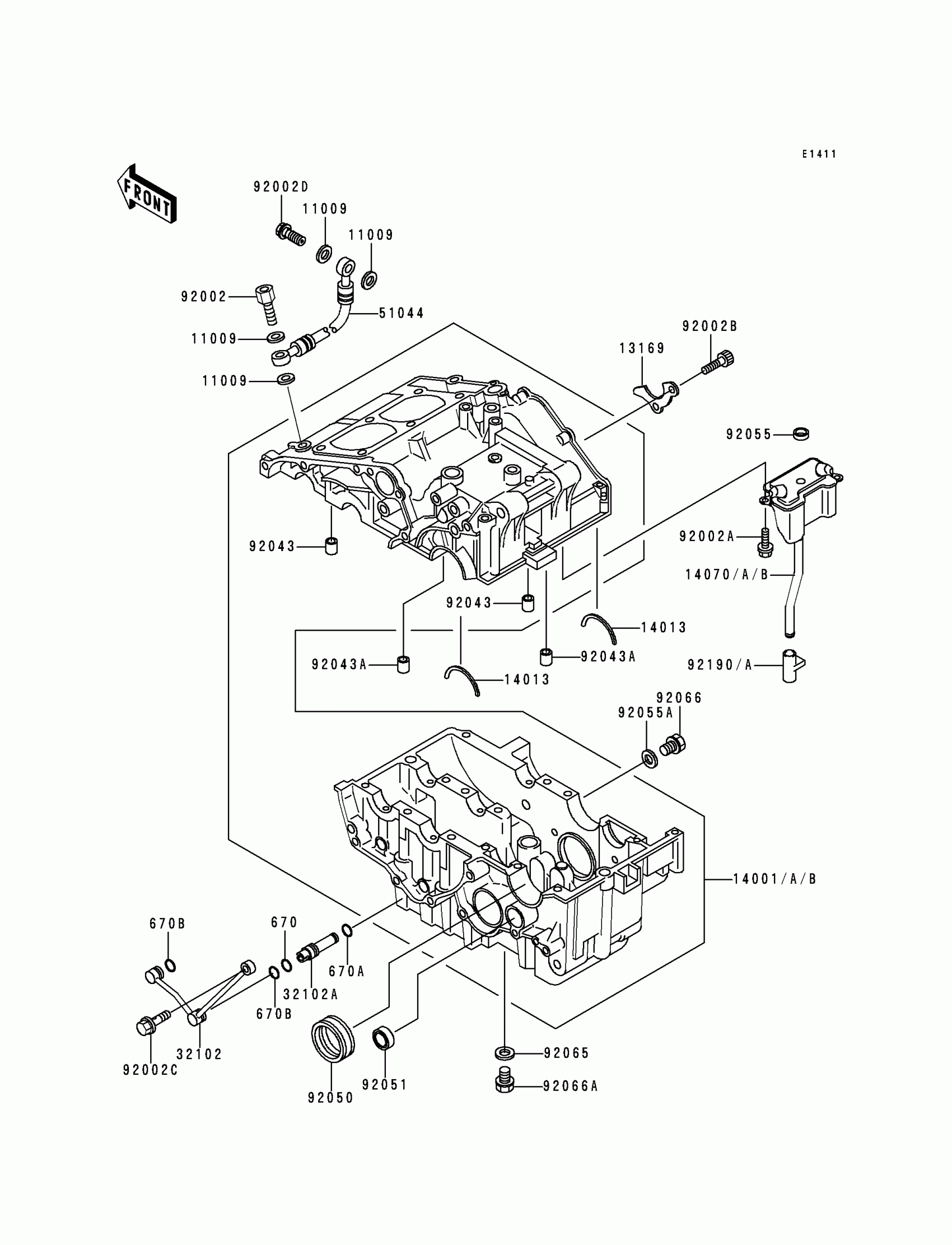

Find the part on the Crankcase diagram for your 1987 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 250R Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

11009A

GASKET,12X22X2

92065-097

1

$0.76

In stock

13183

PLATE

13169-1659

1

$8.69

In stock

14001

SET-CRANKCASE

14001-5216

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14070

BODY-BREATHER

14070-1065

1

$89.55

In stock

32102

PIPE

32102-1017

1

$89.67

In stock

32102A

PIPE

32102-1018

1

$16.39

In stock

51044

TUBE-ASSY

51044-1074

1

$68.16

In stock

92002

BOLT,OIL SWITCH

92002-1427

1

$22.64

In stock

92002A

BOLT,6X10

92002-1449

1

$3.68

In stock

92002B

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92002C

BOLT

92002-1593

1
Out of stock

92002D

BOLT,BANJO,8X20

92002-1705

1
Out of stock

92043

PIN,9.2X12X14

92043-1265

1

$8.03

In stock

92043A

PIN,3.5X6X16

92043-1309

1

$4.37

In stock

92049

SEAL-OIL,SC325210

92050-024

1
Out of stock

92049A

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,OD=18

92055-048

1

$3.81

In stock

92055A

RING-O,20X2

92055-1146

1

$6.82

In stock

92066

1

$9.11

In stock

92066A

1

$4.88

In stock

670

O RING,9MM

670D1509

1

$3.72

In stock

670A

O RING,10MM

670D2010

1

$1.63

In stock

670B

O RING,12MM

670D2012

1

$2.19

In stock
