1990 Kawasaki Ninja® 250R Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

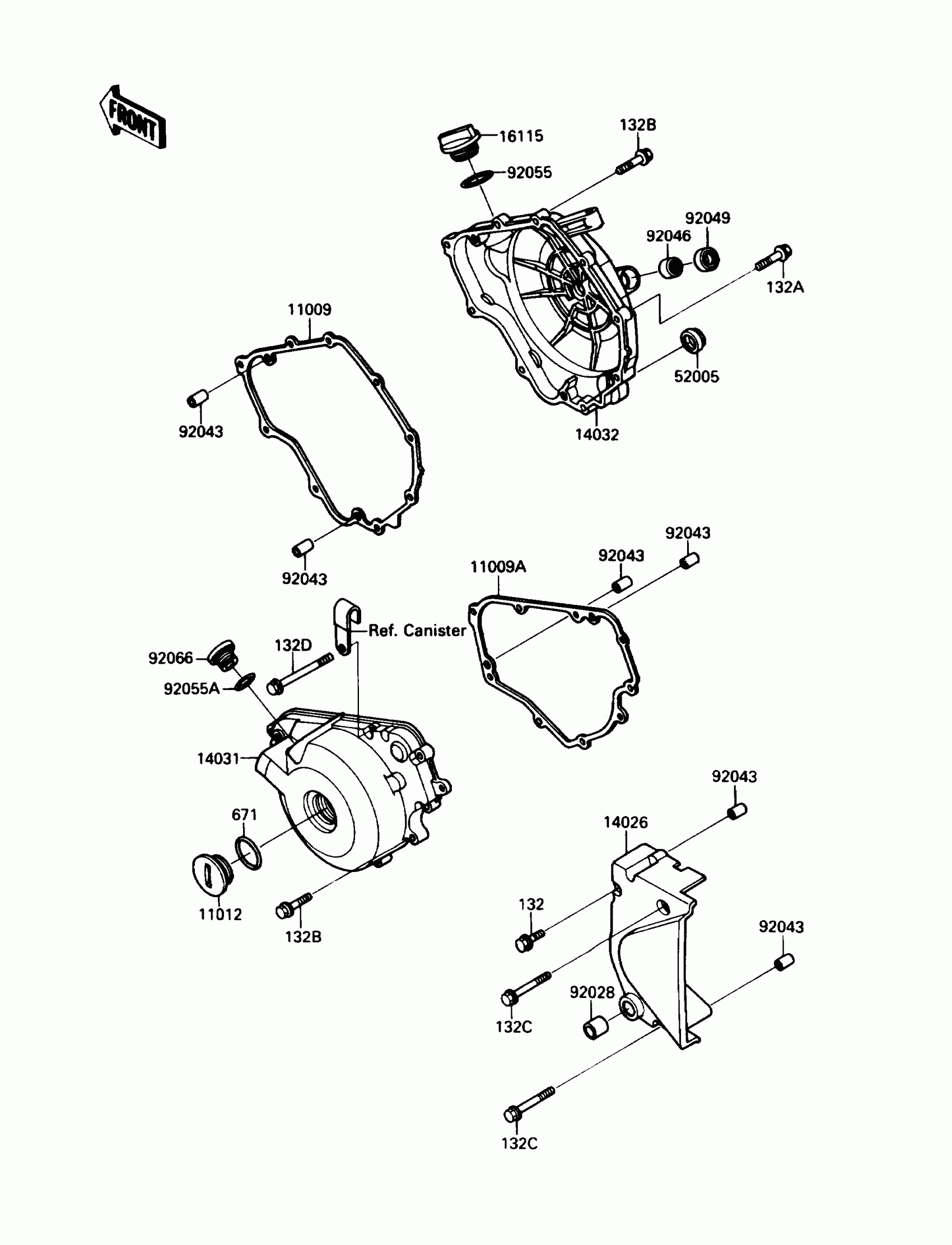

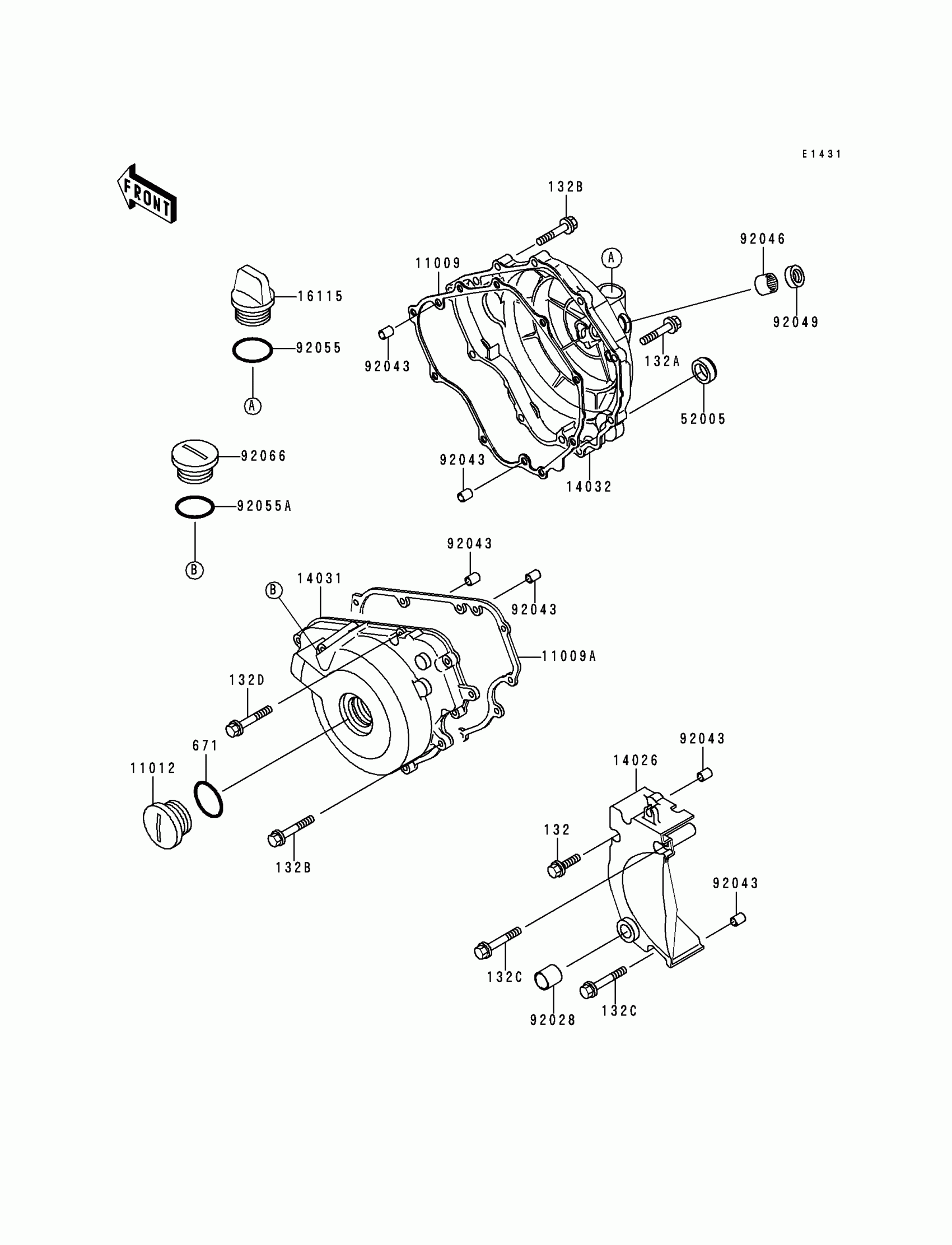

1990 Kawasaki Ninja® 250R Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CLUTCH COVER

11009-1569

1
Out of stock

11009A

GASKET,GENERATOR COVER

11009-1570

1
Out of stock

11012

CAP

11012-1362

1

$6.98

In stock

14026

COVER-CHAIN

14026-1122

1
Out of stock

14031

COVER-GENERATOR

14031-1225

1
Out of stock

14032

COVER-CLUTCH

14032-1213

1

$218.07

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92028

BUSHING

92028-1347

1

$6.75

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,20X2

92055-1146

1

$6.82

In stock

92066

PLUG,COVER

92066-1163

1

$11.67

In stock

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X50

132J0650

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X75

132J0675

1
Out of stock

671

O RING,40MM

671B2540

1

$4.93

In stock
