1990 Kawasaki Ninja® 250R Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

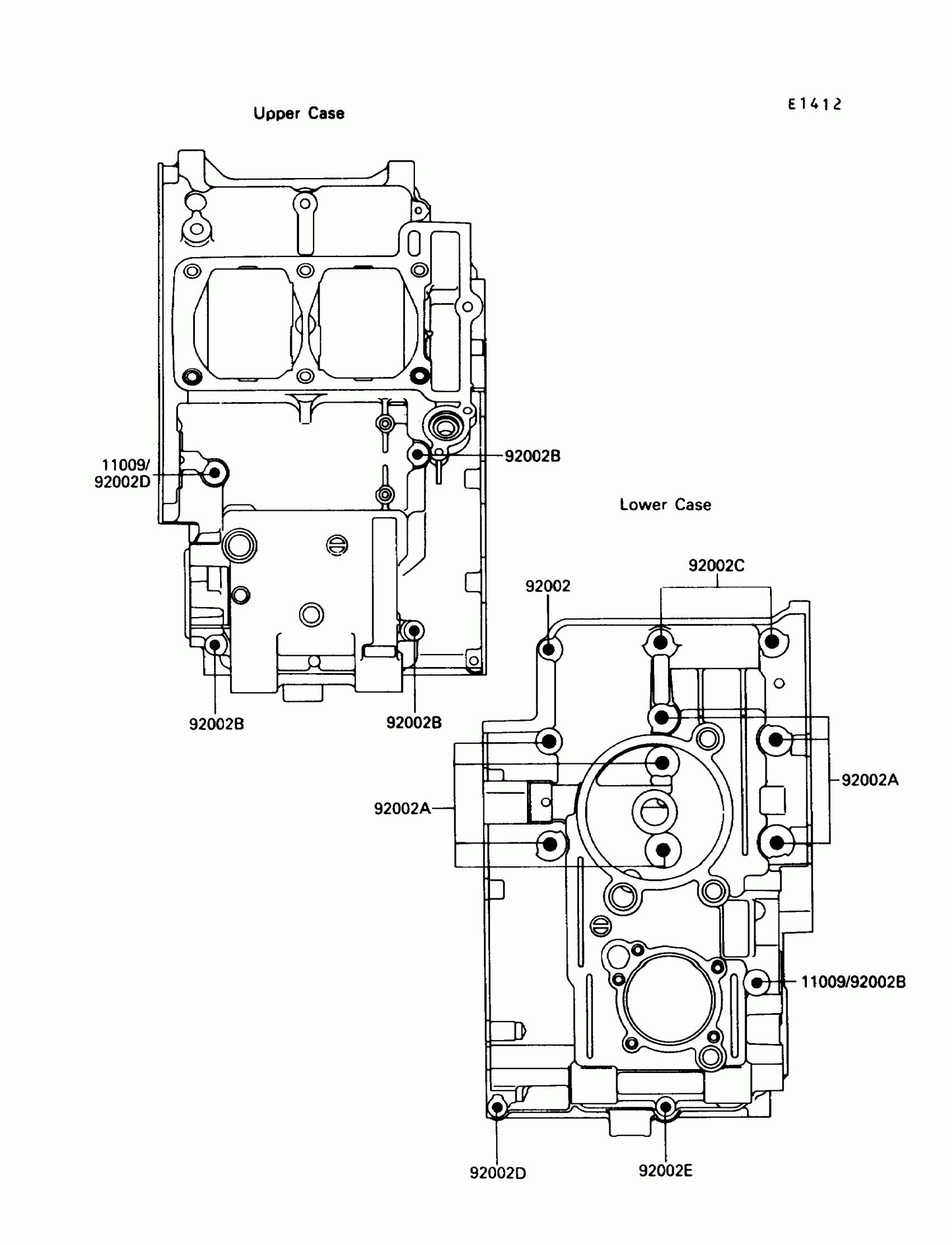

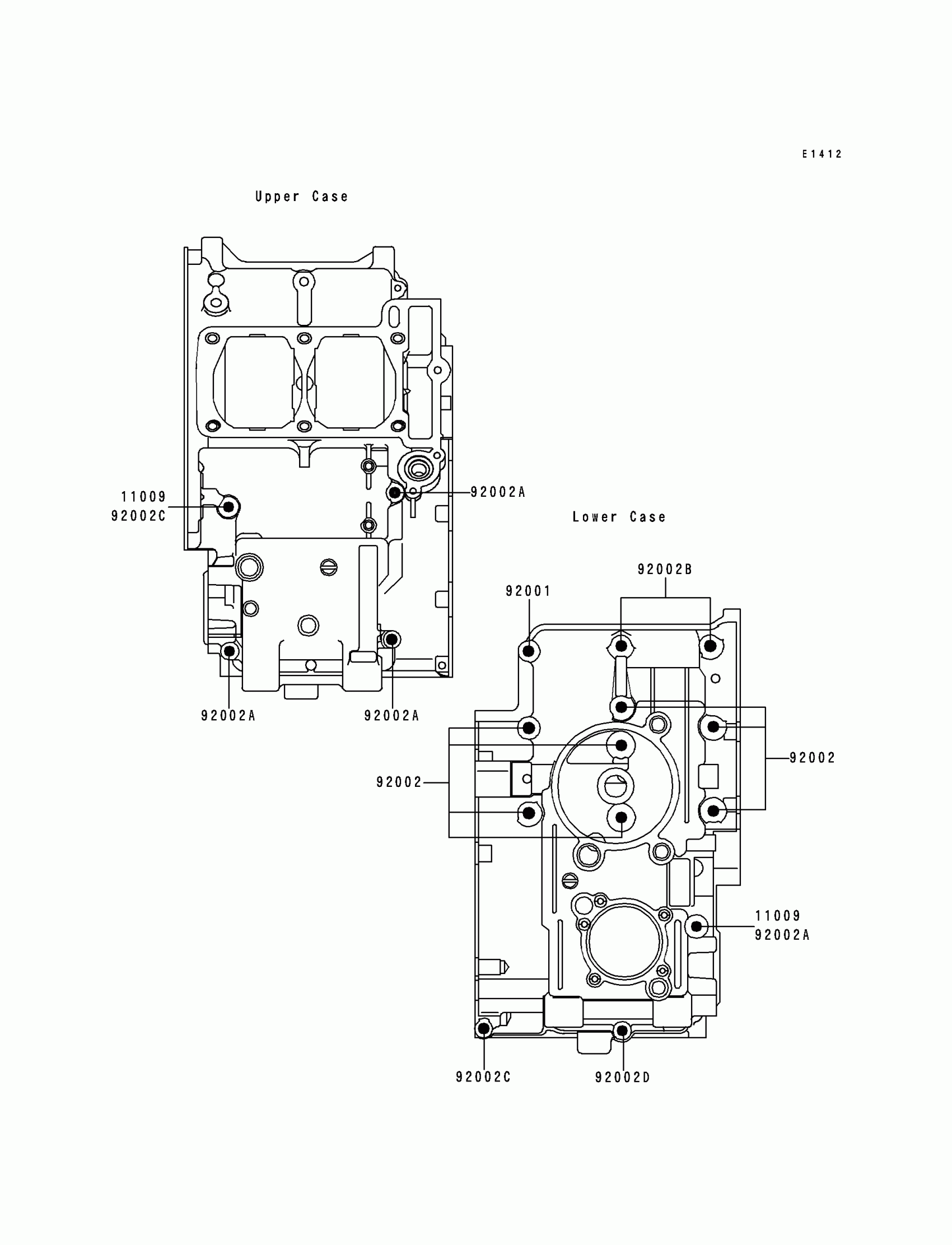

1990 Kawasaki Ninja® 250R Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,6.5X12X1.0

11009-1568

1

$4.14

In stock

92002

BOLT,6X38

92001-1899

1

$3.92

In stock

92002A

BOLT,8X90

92002-1057

1

$9.95

In stock

92002B

BOLT,6X85

92002-1306

1

$5.10

In stock

92002C

BOLT,8X72

92002-1329

1

$10.24

In stock

92002D

BOLT,FLANGED,6X60

92002-1584

1
Out of stock

92002E

BOLT,6X135

92002-1687

1
Out of stock
