1990 Kawasaki Ninja® 250R Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

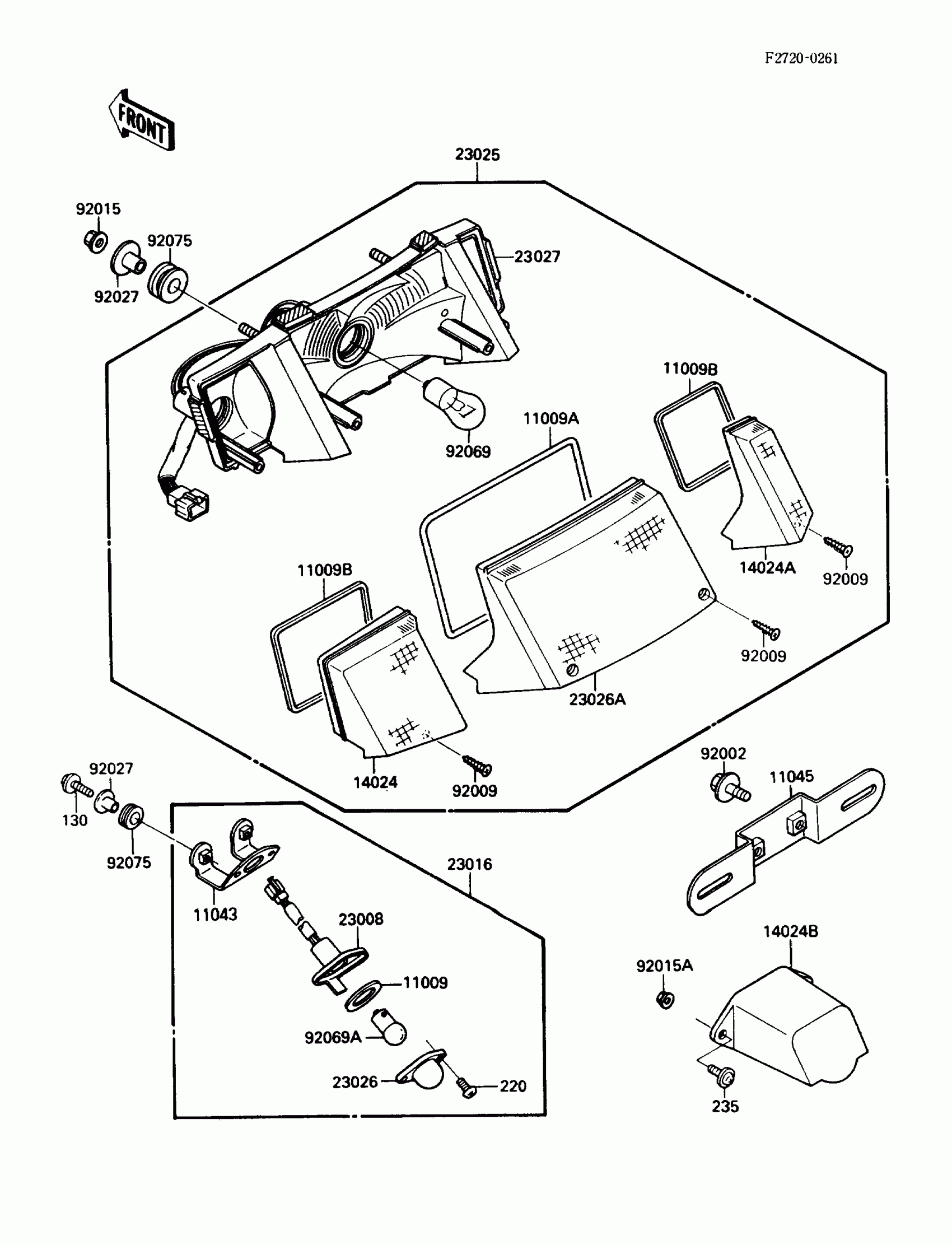

1990 Kawasaki Ninja® 250R Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.14

In stock

11009A

1

$10.08

In stock

11009B

1

$5.18

In stock

11043

BRACKET,LICENSE PLATE LAMP

11043-1497

1
Out of stock

11045

BRACKET,LICENSE

11045-1387

1

$13.20

In stock

14024

COVER,TAIL LAMP,LH

14024-1662

1
Out of stock

14024A

COVER,TAIL LAMP,RH

14024-1663

1
Out of stock

14024B

1

$18.66

In stock

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

1
Out of stock

23016

1

$77.63

In stock

23025

LAMP-TAIL,FOR U.S.A

23025-1177

1

$451.96

In stock

23026

LENS,LAMP

23026-1054

1

$9.02

In stock

23026A

LENS,TAIL LAMP

23026-1101

1

$50.73

In stock

23027

BODY-COMP-TAIL LAMP

23027-1088

1

$101.94

In stock

92002

BOLT,6X14

92002-1351

1

$3.43

In stock

92009

SCREW,TAPPING,4X16

92009-1063

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

130

BOLT-FLANGED,6X25

130D0625

1
Out of stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

235

SCREW-PAN-WP-CROS,6X20

235C0620

1
Out of stock
