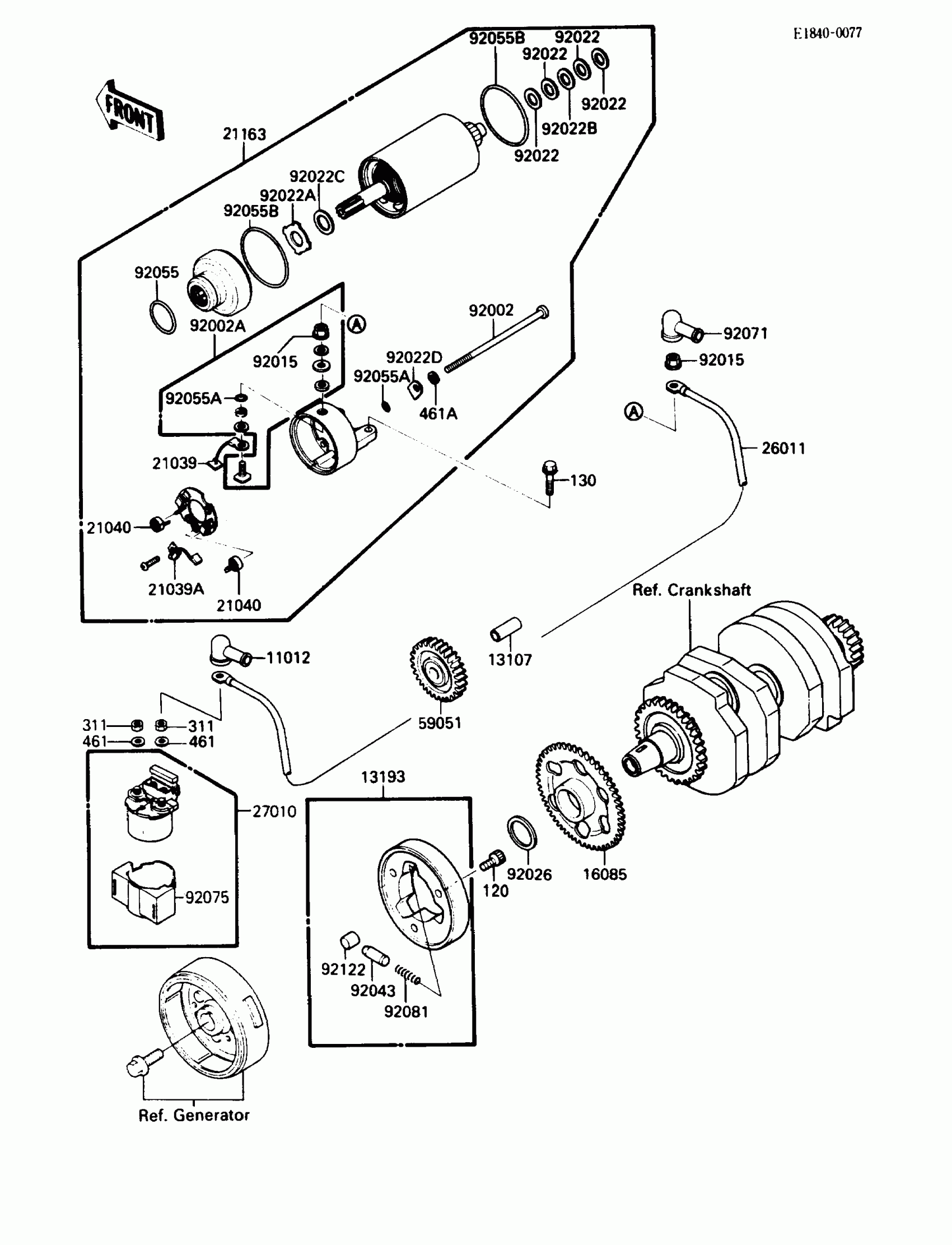

Find the part on the Starter Motor diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

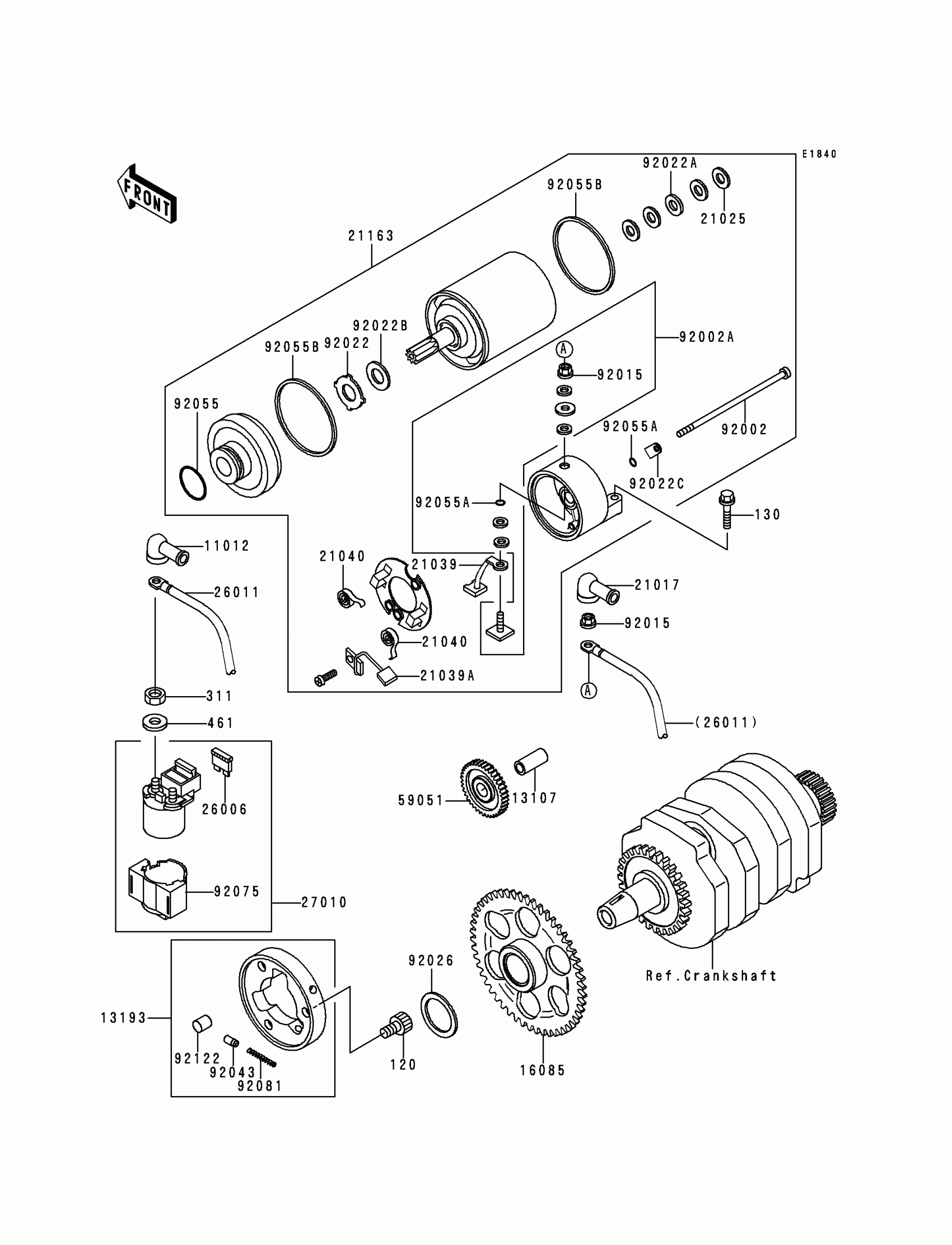

1990 Kawasaki Ninja® 250R Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

13107

SHAFT,7.8X12X26.5

13107-1176

1

$10.85

In stock

13193

CLUTCH-ASSY-ONEWAY

13193-1002

1

$114.64

In stock

16085

GEAR,ONEWAY CLUTCH,65T

16085-1166

1
Out of stock

21039

BRUSH,CARBON(+)

21039-1001

1

$35.15

In stock

21039A

BRUSH,CARBON(-)

21039-1056

1

$35.15

In stock

21040

SPRING-BRUSH

21040-1053

1

$9.97

In stock

21163

STARTER-ELECTRIC

21163-1136

1

$561.23

In stock

26011

WIRE-LEAD

26011-1376

1

$81.44

In stock

27010

SWITCH,MAGNETIC

27010-1213

1
Out of stock

59051

GEAR-SPUR,IDLE

59051-1154

1

$131.54

In stock

92002

BOLT,STARTER

92002-1818

1
Out of stock

92002A

BOLT,TERMINAL

92002-1819

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,9.1X18X0.2

21025-011

1

$5.42

In stock

92022A

WASHER,THRUST SUPPORT

92022-1130

1
Out of stock

92022B

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92022C

WASHER,22X12.2X0.5

92022-1714

1
Out of stock

92022D

WASHER,LOCK

92022-1825

1
Out of stock

92026

SPACER,25X40X1

92026-1004

1
Out of stock

92043

PIN

92043-132

1

$4.93

In stock

92055

RING-O

92055-1303

1

$11.29

In stock

92055A

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055B

RING-O

92055-1418

1

$11.29

In stock

92071

1

$7.48

In stock

92075

DAMPER,MAGNETIC SWITCH

92075-1863

1
Out of stock

92081

SPRING,COIL

92081-159

1

$2.83

In stock

92122

ROLLER

92122-006

1

$4.93

In stock

120

BOLT-SOCKET,8X14

120P0814

1
Out of stock

130

BOLT-FLANGED

130J0620

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

461A

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock
