1990 Kawasaki Ninja® 250R Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

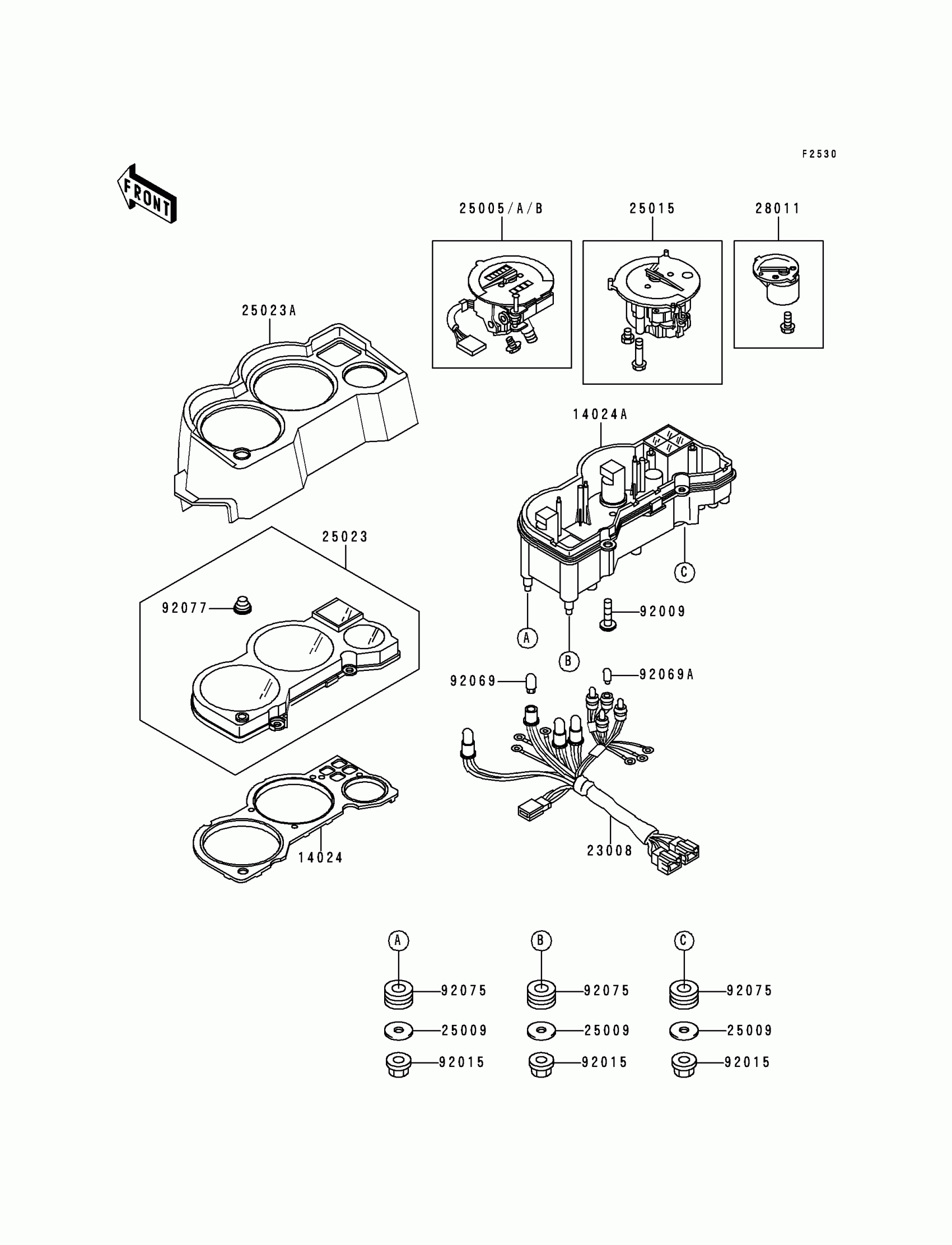

1990 Kawasaki Ninja® 250R Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,METER

14024-1463

1
Out of stock

14024A

COVER,METER HOUSING

14024-1664

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1367

1

$77.23

In stock

25001

METER-ASSY,MPH

25001-1718

1

$1,246.69

In stock

25001A

METER-ASSY,KPH

25001-1719

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1378

1

$477.77

In stock

25005A

SPEEDOMETER,KPH

25005-1379

1
Out of stock

25015

1

$431.13

In stock

25023

1

$123.12

In stock

25023A

1

$73.22

In stock

28011

METER,TEMP

28011-1100

1

$133.89

In stock

92009

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92075

1

$4.51

In stock

92077

1

$7.88

In stock
