1987 Kawasaki Ninja® 250R Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1987 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

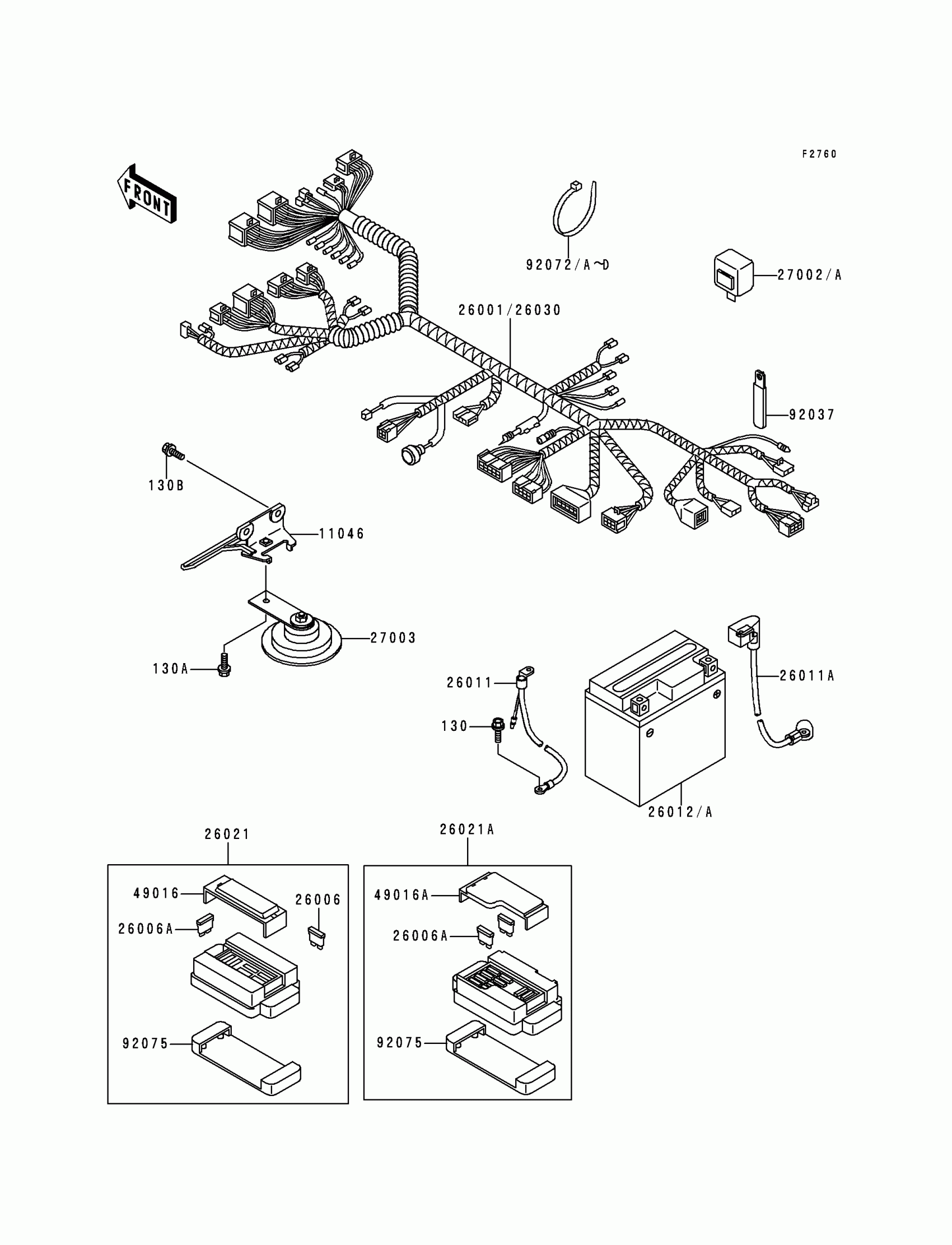

1987 Kawasaki Ninja® 250R Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001

HARNESS,MAIN

26001-1783

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26006A

FUSE,BLADE,10A,RED

26006-1007

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1352

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1353

1
Out of stock

26012

FB BAT FB9L-A2K (K2)

26012-1127

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-1053

1
Out of stock

27003

HORN

27003-1242

1
Out of stock

27010

SWITCH,RESERVE LIGHTING

27010-1069

1
Out of stock

49016

COVER-SEAL,FUSE

49016-1125

1
Out of stock

59416

CASE-ELECTRIC,JUNCTION BOX

59416-1059

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=149

92072-031

1
Out of stock

92072B

BAND,L=218

92072-032

1
Out of stock

92075

DAMPER,JUNCTION BOX

92075-1688

1
Out of stock

130

BOLT

130B0612

1
Out of stock

130A

BOLT-FLANGED

130C0814

1
Out of stock

132

BOLT-FLANGED-SMALL

132H0616

1
Out of stock
