1990 Kawasaki Ninja® 250R Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

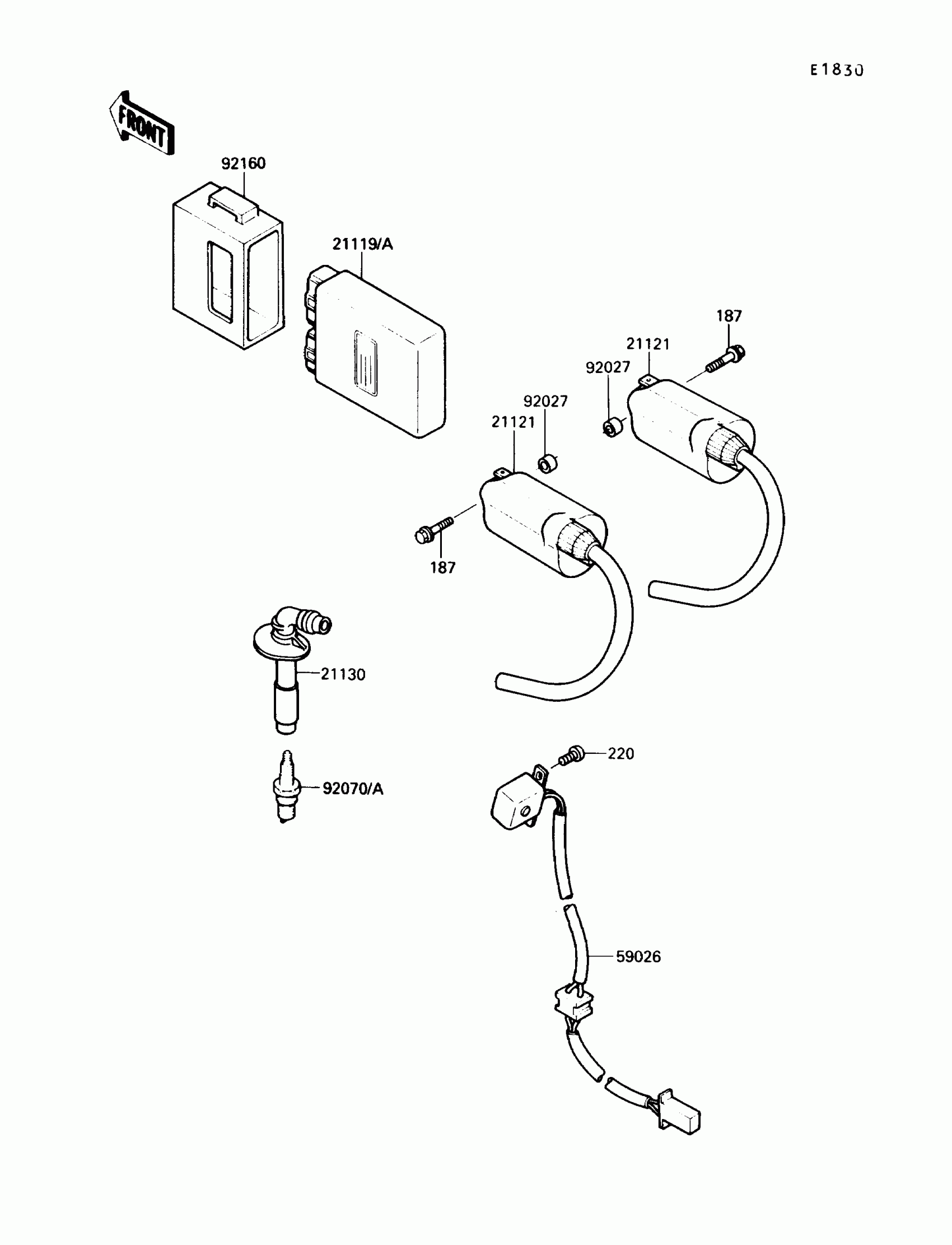

1990 Kawasaki Ninja® 250R Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-1229

1
Out of stock

21119A

IGNITER

21119-1233

1

$635.19

In stock

21121

COIL-IGNITION

21121-1163

1

$142.02

In stock

21130

CAP-SPARK PLUG

21130-1056

1

$55.15

In stock

59026

COIL-PULSING

59026-1086

1

$154.60

In stock

92027

COLLAR

92027-103

1

$2.78

In stock

92070

1

$3.66

In stock

92070A

1

$2.74

In stock

92160

DAMPER,IGNITER

92160-1181

1

$46.10

In stock

187

BOLT-UPSET-WSP,6X25

187G0625

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock
