1990 Kawasaki Ninja® 250R Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

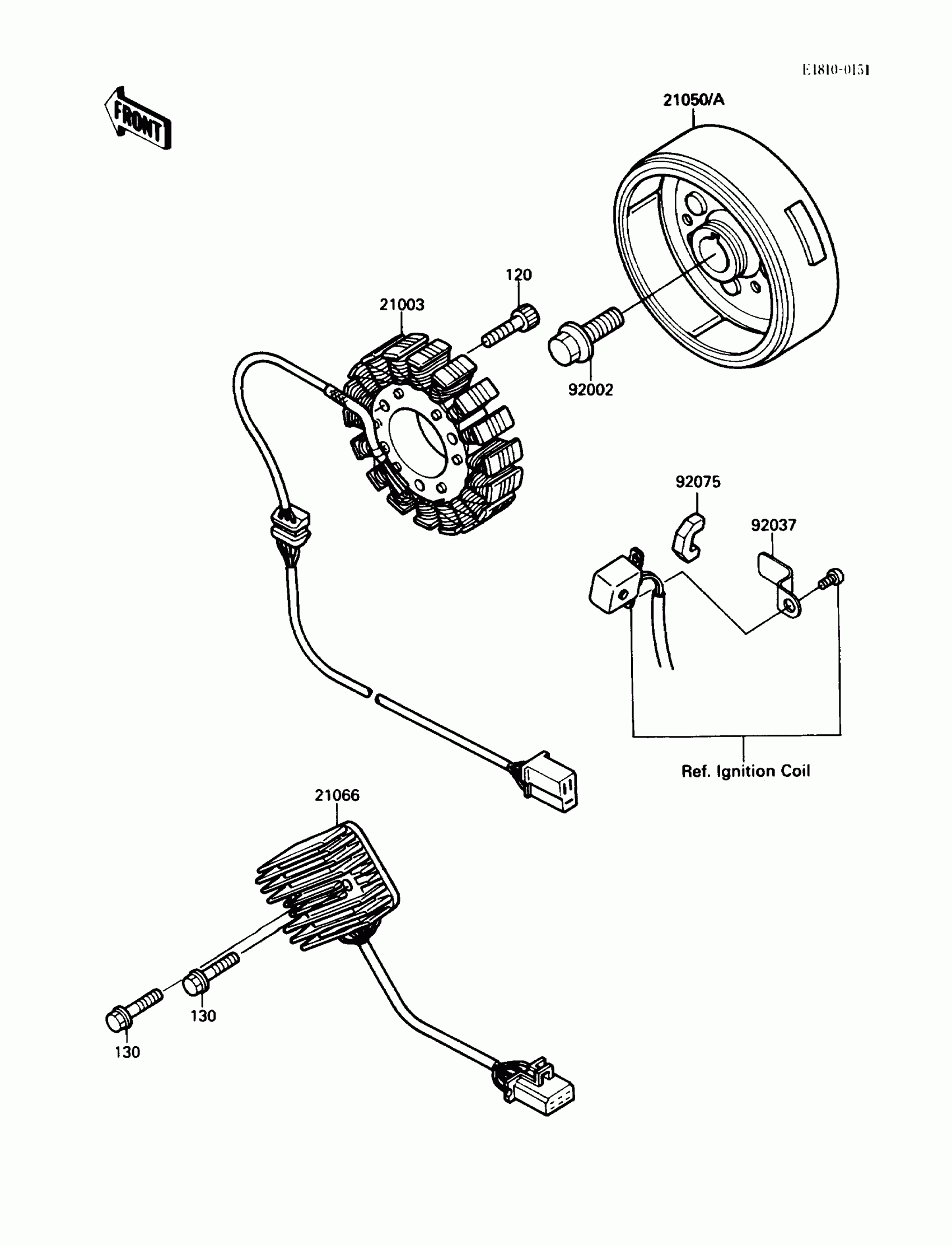

1990 Kawasaki Ninja® 250R Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1154

1

$614.23

In stock

21050

FLYWHEEL

21050-1129

1

$633.81

In stock

21050A

FLYWHEEL

21050-1134

1

$567.14

In stock

21066

REGULATOR-VOLTAGE

21066-1030

1

$268.64

In stock

92002

BOLT,10X28

92002-1688

1
Out of stock

92037

CLAMP

92037-1919

1

$4.78

In stock

92075

DAMPER

92075-1811

1

$6.54

In stock

120

BOLT-SOCKET,6X25

120P0625

1
Out of stock

130

BOLT-FLANGED,6X25

130B0625

1
Out of stock
