1990 Kawasaki Ninja® 250R Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

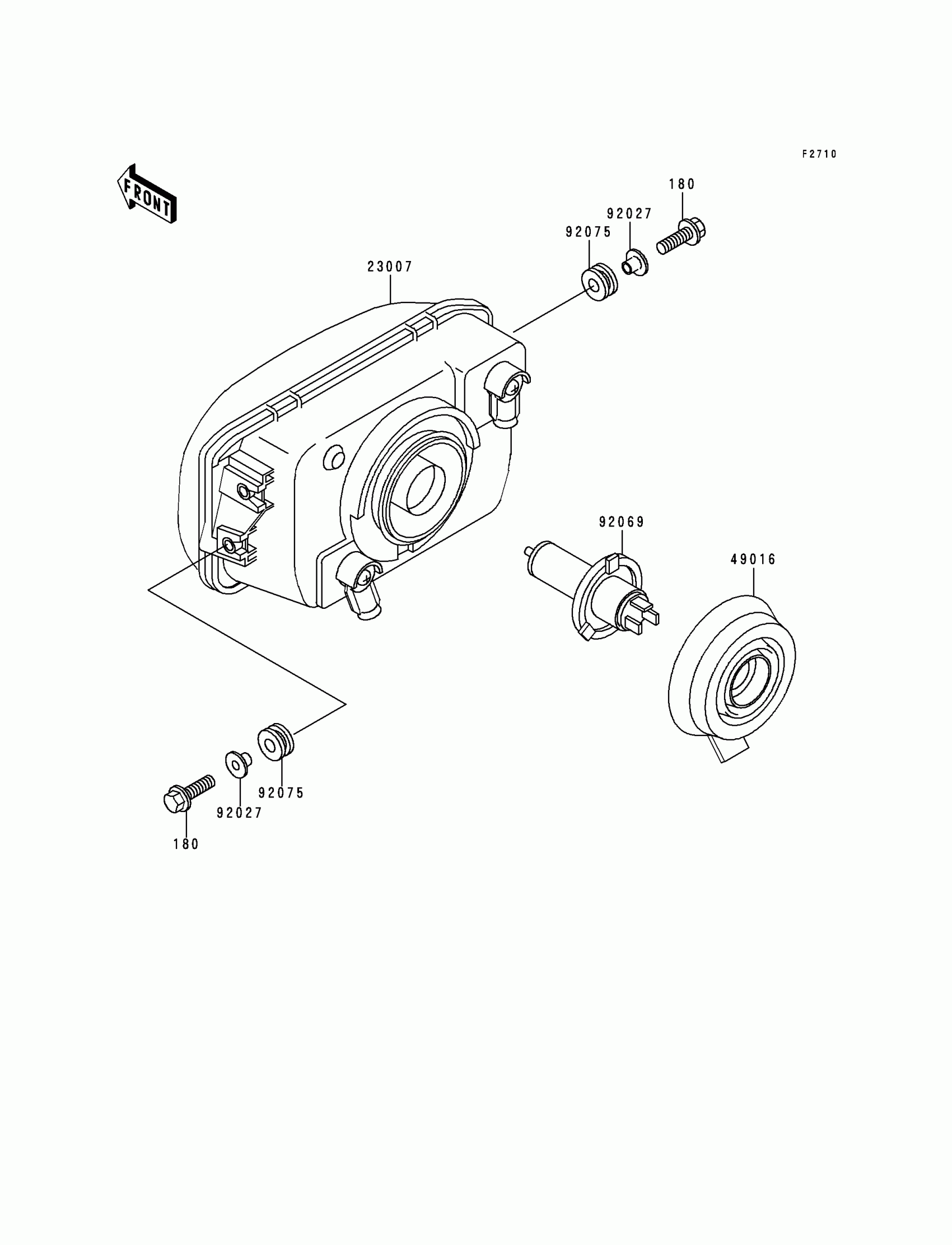

1990 Kawasaki Ninja® 250R Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007

LENS-COMP,HEAD LAMP

23007-1194

1

$371.30

In stock

49016

COVER-SEAL,HEAD LAMP

49016-1108

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

180

1

$3.39

In stock
