1990 Kawasaki Ninja® 250R Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

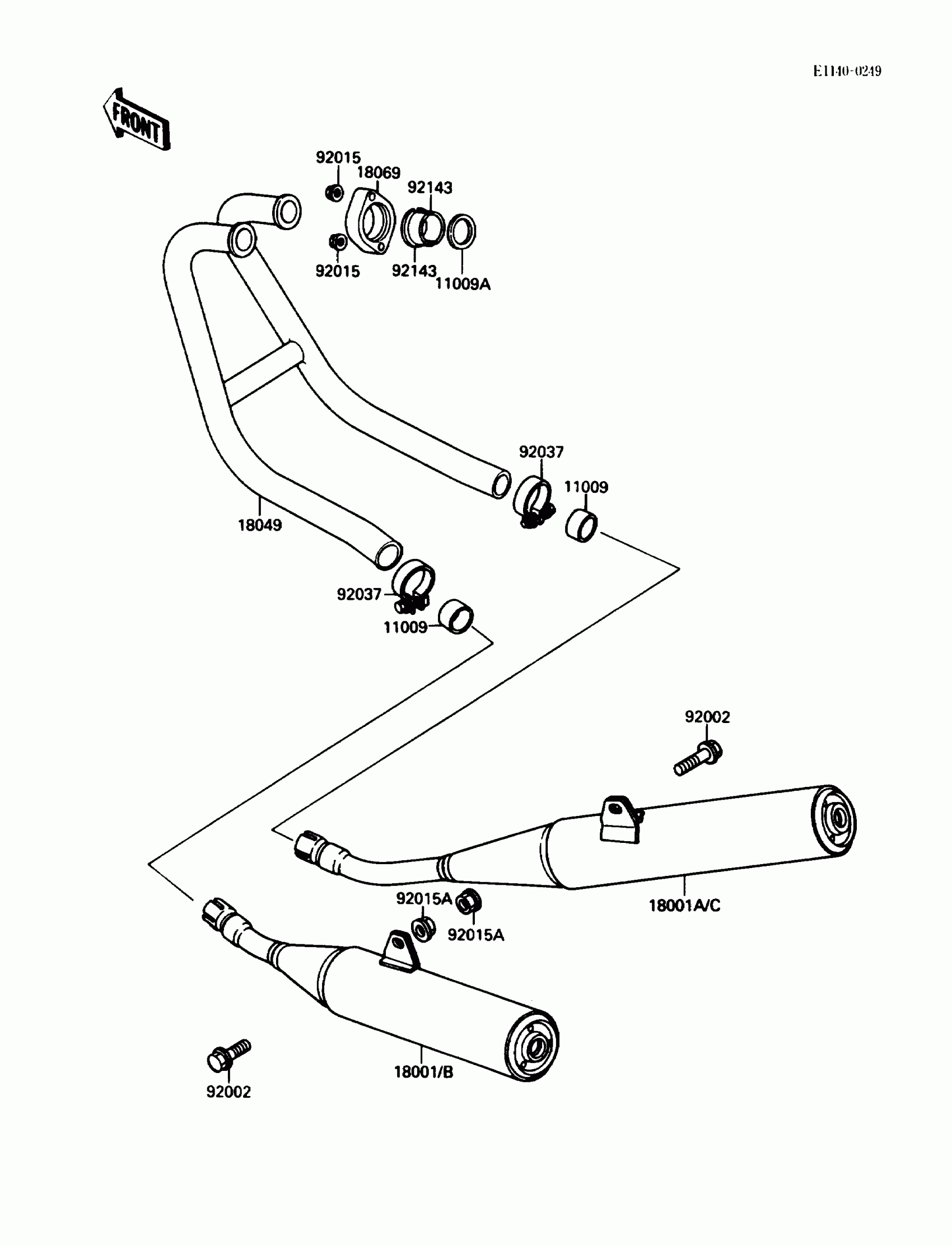

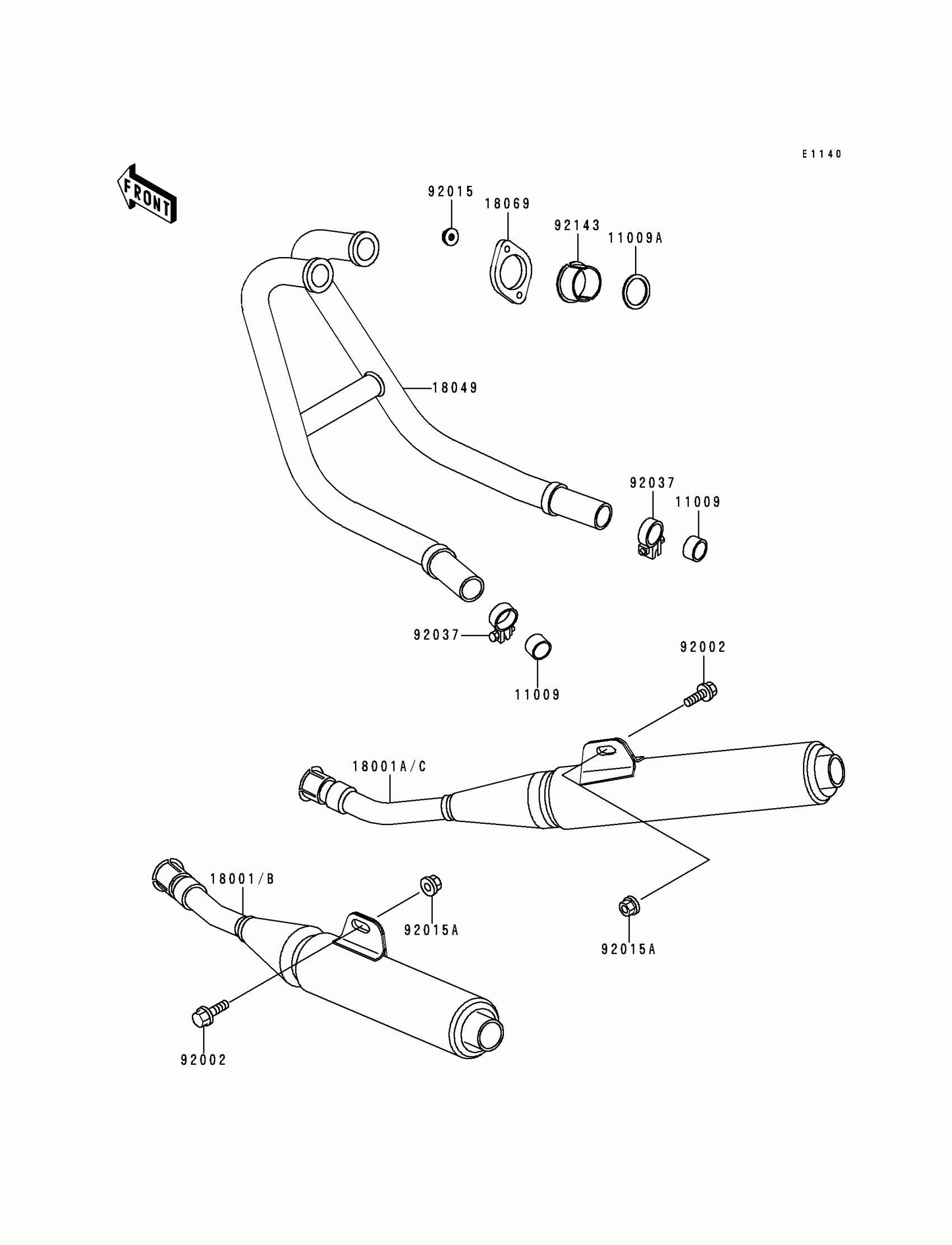

1990 Kawasaki Ninja® 250R Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,MUFFLER CONNECTING

11009-1606

1
Out of stock

11009A

1

$6.55

In stock

18001

MUFFLER,LH

18001-1695

1

$488.22

In stock

18001A

MUFFLER,RH

18001-1696

1

$488.22

In stock

18001B

MUFFLER,LH

18001-1724

1

$526.94

In stock

18001C

MUFFLER,RH

18001-1725

1

$526.94

In stock

18049

PIPE-EXHAUST

18049-1431

1

$177.79

In stock

18069

HOLDER-EXHAUST PIPE

18069-1075

1

$22.27

In stock

92002

BOLT,10X30

92002-1787

1
Out of stock

92015

NUT,6MM

92015-1365

1

$3.97

In stock

92015A

NUT,FLANGED,10MM

92015-1387

1

$3.43

In stock

92037

CLAMP,39.5MM

92037-1792

1
Out of stock

92143

COLLAR,EXHAUST PIPE

92143-1006

1

$6.02

In stock
