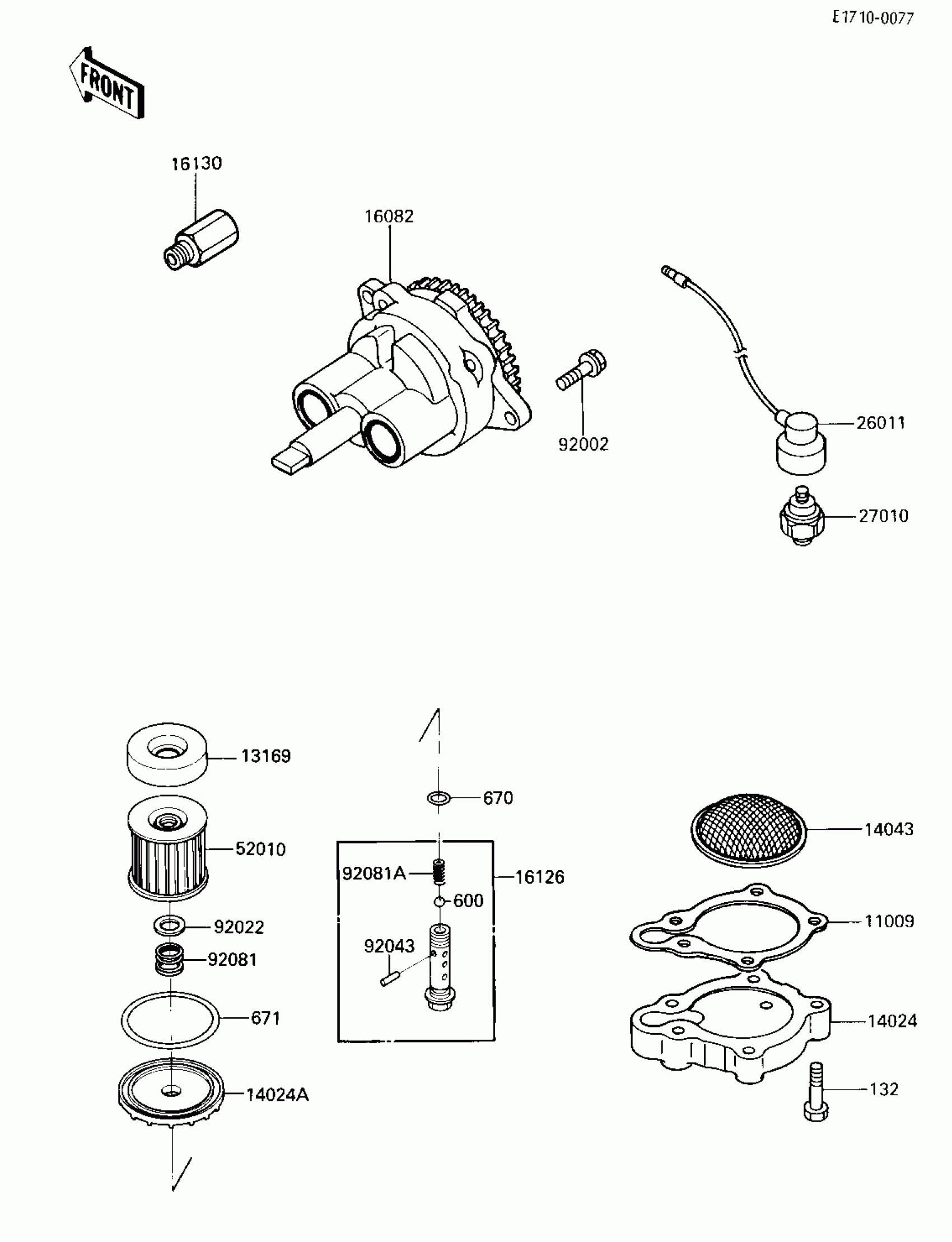

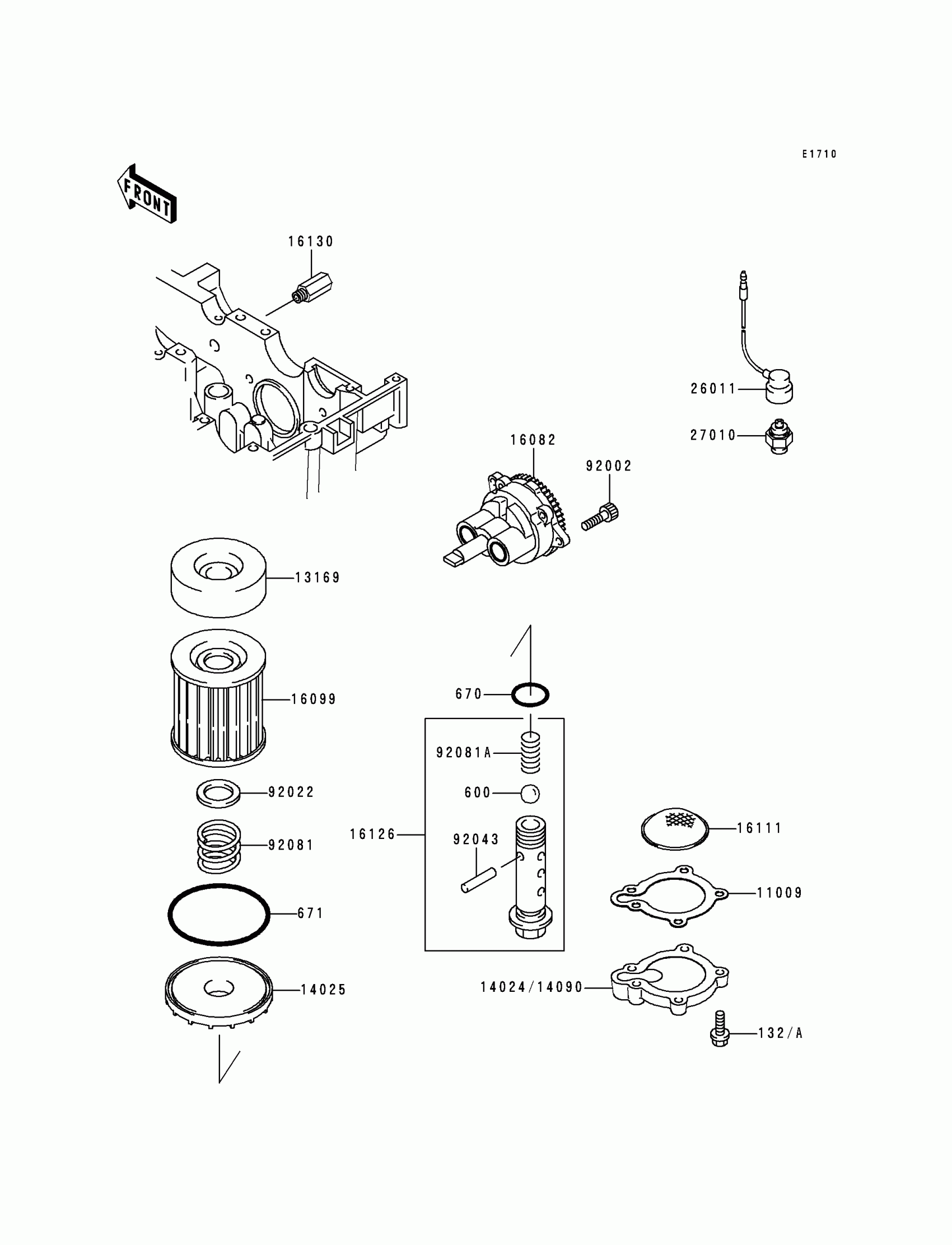

Kawasaki Ninja® 250R OIL PUMP/OIL FILTER Diagram

Description

Price

11009

GASKET,OIL FILTER COVER

11009-1874

$6.18

13169

PLATE,OIL FILTER

13169-1313

$10.25

14024

COVER,OIL FILTER

14024-1298

Unavailable

14024A

COVER,OIL FILTER,F.BLACK

14025-1422

$39.50

14043

FILTER,OIL

16111-003

$19.41

16082

PUMP-ASSY-OIL

16082-1078

$181.32

16126

VALVE,OIL FILTER

16126-1108

$37.32

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

26011

WIRE-LEAD

26011-1371

$19.97

27010

SWITCH,OIL PRESSURE

27010-1155

$35.72

52010

ELEMENT-OIL FILTER

16099-003

$9.28

92002

BOLT,SOCKET,6X25

92002-1696

$1.43

92022

WASHER,20.5X30X1

92022-1012

$3.32

92043

PIN,SPRING,2X20

92043-111

$5.46

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-109

$10.85

132

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

600

BALL-STEEL,3/8"

600A1200

$1.14

670

O RING,16MM

670B2016

$1.04

671

O RING,90MM

671B2590

$7.54
