2005 Kawasaki Ninja® 250R Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2005 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

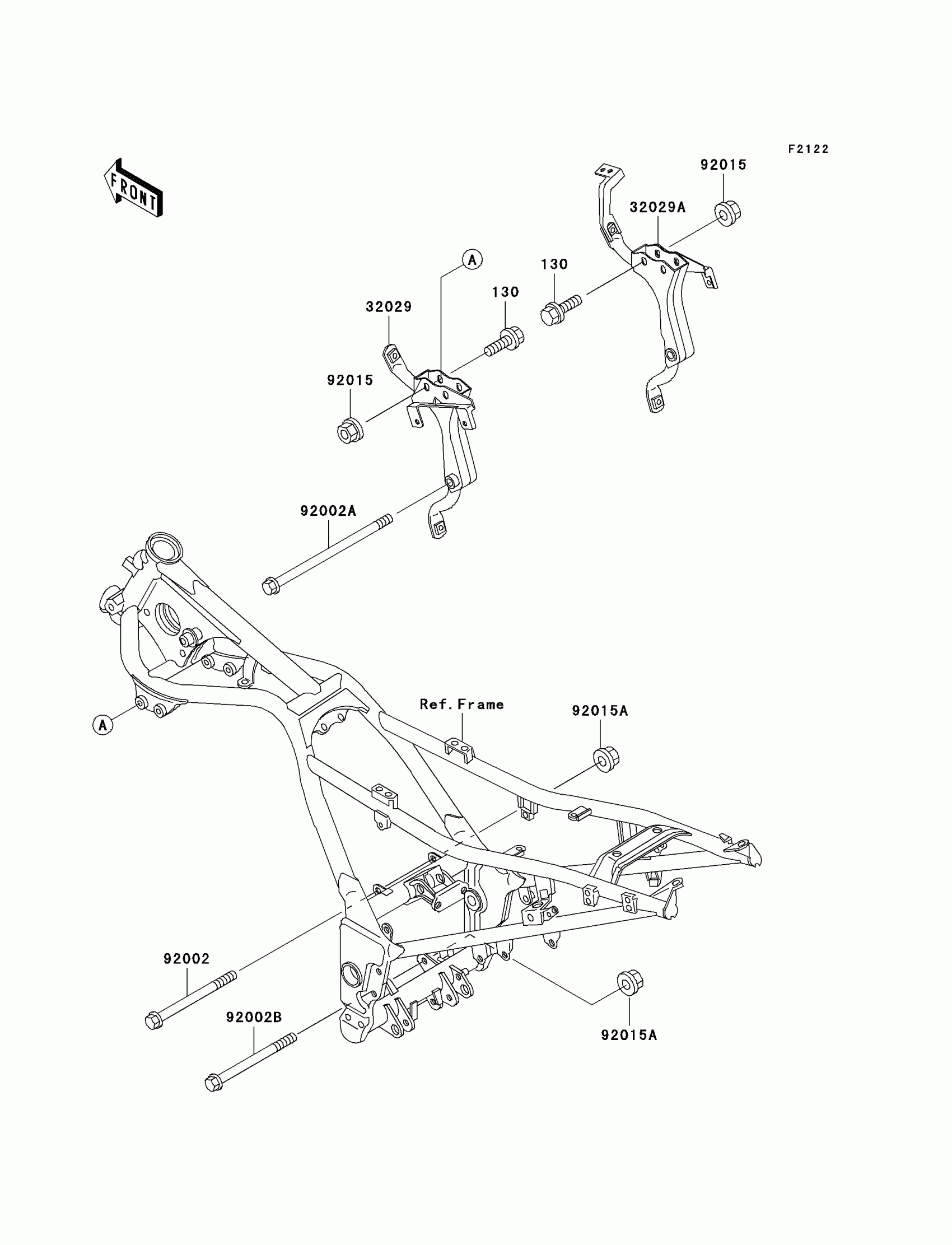

2005 Kawasaki Ninja® 250R Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X40

130G0840

1
Out of stock

32029

1

$141.36

In stock

32029A

1

$141.36

In stock

92002

BOLT,FLANGED,10X130

92002-1087

1

$9.02

In stock

92002A

BOLT,FLANGED,10X170

92002-1470

1
Out of stock

92002B

BOLT,FLANGED,10X138

92002-1795

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1180

1
Out of stock
