1987 Kawasaki Ninja® 1000R Fairing Diagram

← All diagrams

Find the part on the Fairing diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

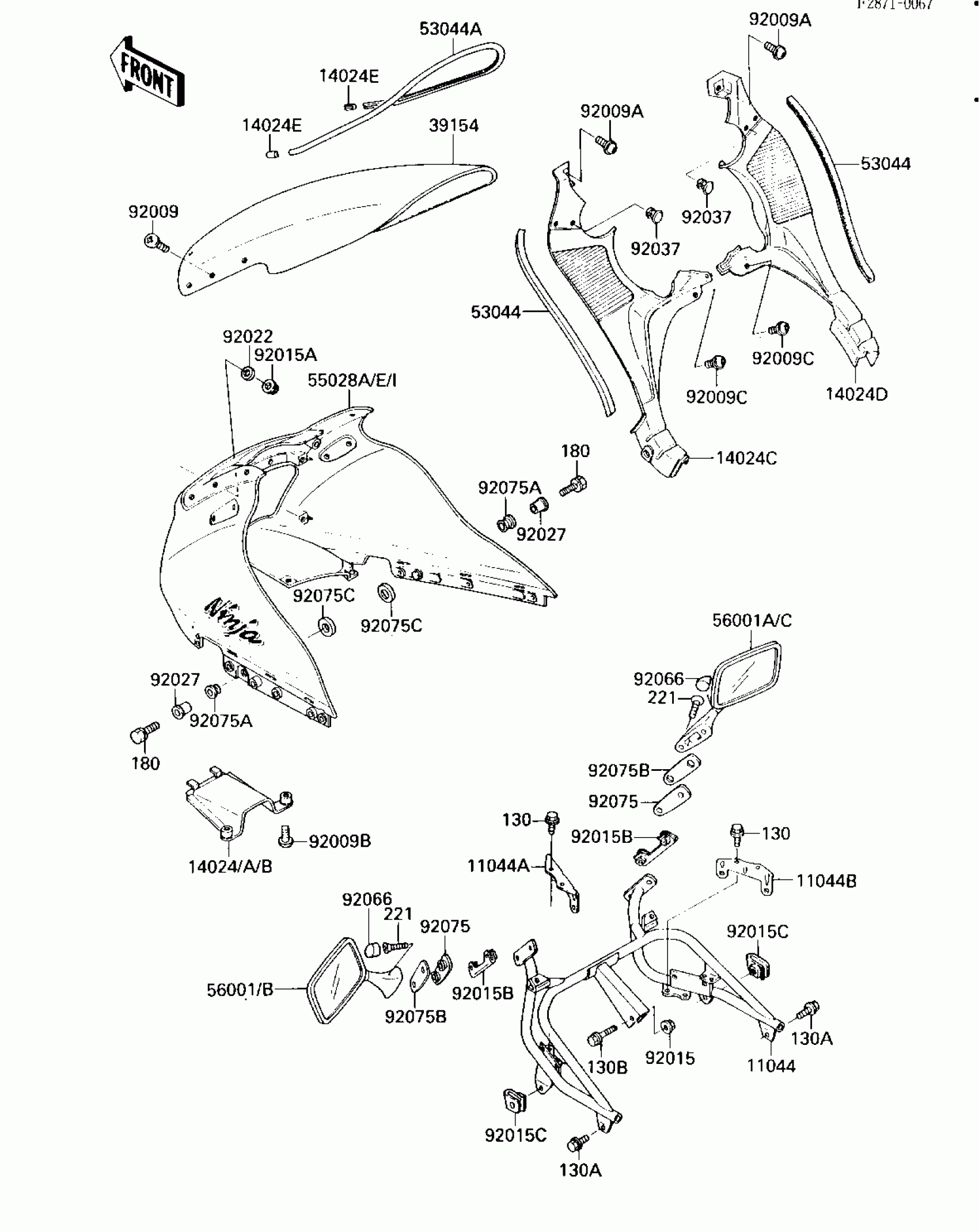

1987 Kawasaki Ninja® 1000R Fairing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,UPPER COWLING

11044-1175

1
Out of stock

11044A

BRACKET,IGNITION COIL

11044-1431

1
Out of stock

11044B

BRACKET,IGNITION COIL

11044-1432

1
Out of stock

14024

COVER,UPPER COWLING UNDER (Can

14024-1057-W4

1
Out of stock

14024A

COVER,UPPER COWLING U

14024-1057-6C

1
Out of stock

14024C

COVER,UPPER COWLING I

14024-1124

1
Out of stock

14024D

COVER,UPPER COWLING I

14024-1125

1
Out of stock

14024E

COVER,TRIM END

14025-1756

1

$6.05

In stock

39154

WINDSHIELD

39154-1058

1

$525.04

In stock

53044

TRIM,WINDSHIELD

53044-1120

1
Out of stock

53044A

TRIM,WINDSHIELD

53044-1133

1
Out of stock

55028A

COWLING,UPP,EBONY

55028-5165-H8

1

$1,341.22

In stock

55028I

COWLING,UPP,M.G.GOLD (Canada)

55028-5301-W4

1
Out of stock

56001B

MIRROR-ASSY,LH

56001-1307

1
Out of stock

56001C

MIRROR-ASSY,RH

56001-1308

1
Out of stock

92009

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92009A

SCREW,5X25

92009-1302

1
Out of stock

92009B

SCREW,5X14

92009-1653

1
Out of stock

92009C

SCREW,6X10

92009-1402

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1

$4.27

In stock

92015A

NUT,5MM,COWLING

92015-1343

1

$3.65

In stock

92015B

NUT,MIRROR CLAMP,6MM

92015-1533

1
Out of stock

92015C

NUT

92015-1553

1
Out of stock

92022

1

$3.12

In stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92037

CLAMP

92037-1579

1
Out of stock

92066

PLUG

92066-1280

1

$4.12

In stock

92075

DAMPER,MIRROR

92075-1492

1

$7.95

In stock

92075A

1

$3.80

In stock

92075B

DAMPER,MIRROR

92075-1745

1

$7.95

In stock

92075C

DAMPER,FEMALE

92075-175

1

$3.49

In stock

130

BOLT

130B0612

1
Out of stock

130A

BOLT-FLANGED,8X14

130G0814

1
Out of stock

130B

BOLT-FLANGED,8X35

130J0835

1
Out of stock

180

BOLT 6X30

180B0630

1
Out of stock

221

1

$3.92

In stock
