1987 Kawasaki Ninja® 1000R Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

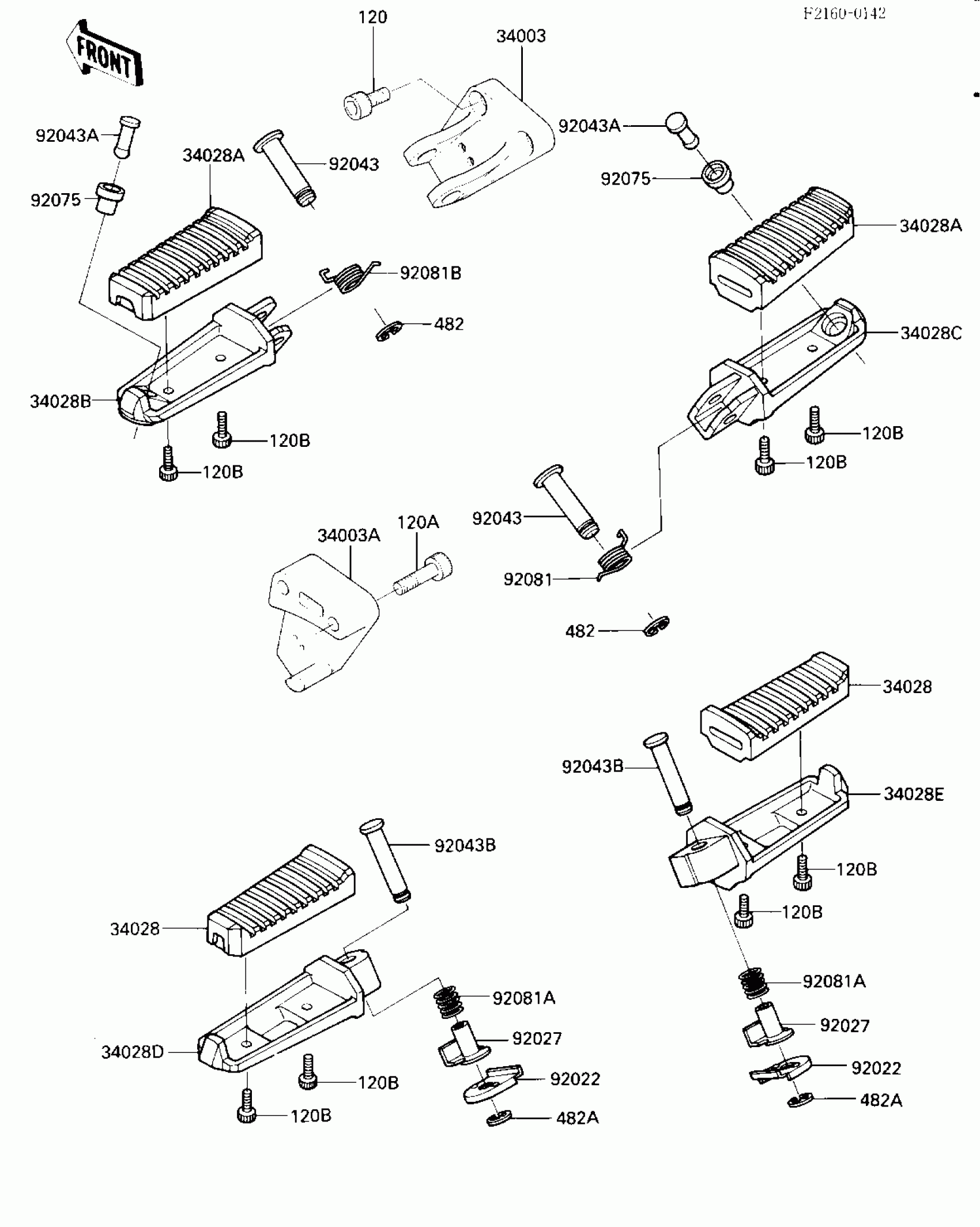

1987 Kawasaki Ninja® 1000R Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,FR,LH

34003-1243

1

$88.19

In stock

34003A

HOLDER-STEP,FR,RH

34003-1244

1
Out of stock

34028

STEP,RR,RUBBER

34028-1060

1

$21.98

In stock

34028A

STEP,FR,RUBBER

34028-1118

1
Out of stock

34028B

STEP,FR,LH

34028-1119

1
Out of stock

34028C

STEP,FR,RH

34028-1120

1
Out of stock

34028D

STEP,RR,LH

34028-1121

1
Out of stock

34028E

STEP,RR,RH

34028-1122

1
Out of stock

92022

WASHER,STEP,RR

92022-1507

1

$4.61

In stock

92027

COLLAR,STEP

92027-1732

1

$10.73

In stock

92043

PIN,12X42.5

92043-1145

1

$9.27

In stock

92043A

PIN,BANK SENSOR

92043-1219

1

$9.43

In stock

92043B

PIN,6X38.5

92043-1238

1

$4.15

In stock

92075

DAMPER,BANK SENSOR

92075-1597

1

$5.37

In stock

92081

SPRING,STEP RETURN

92144-1568

1

$5.15

In stock

92081A

SPRING,STEP,RR

92081-1612

1

$3.81

In stock

92081B

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

120

BOLT-SOCKET,8X20

120P0820

1
Out of stock

120A

BOLT-SOCKET,8X30

120P0830

1
Out of stock

120B

BOLT-SOCKET,5X14

120Z0514

1
Out of stock

482

1

$0.98

In stock

482A

1

$1.20

In stock
