1987 Kawasaki Ninja® 1000R Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

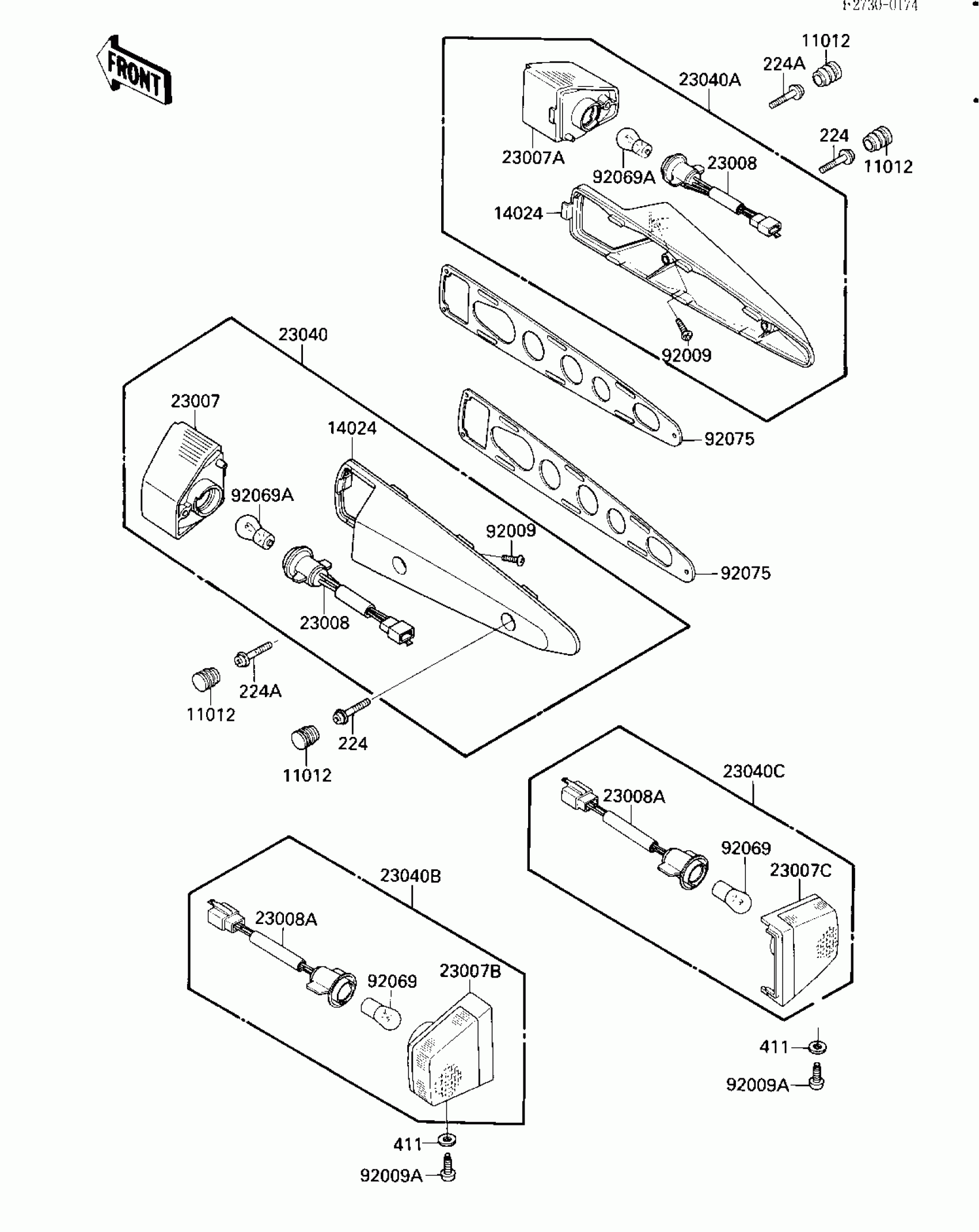

1987 Kawasaki Ninja® 1000R Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,PLUG

11012-1453

1
Out of stock

14024

COVER,SIGNAL LAMP,FR

14024-1053

1
Out of stock

23007

LENS-COMP,SIGNAL LAMP

23007-1125

1
Out of stock

23007A

LENS-COMP,SIGNAL LAMP

23007-1126

1
Out of stock

23007B

LENS-COMP,SIGNAL LAMP

23007-1127

1
Out of stock

23007C

LENS-COMP,SIGNAL LAMP

23007-1128

1
Out of stock

23008

SOCKET-ASSY,SIGNAL LAMP,FR

23008-1262

1
Out of stock

23008A

SOCKET-ASSY,SIGNAL LAMP,RR

23008-1263

1
Out of stock

23040

LAMP-SIGNAL,FR,LH

23040-1117

1
Out of stock

23040A

LAMP-SIGNAL,FR,RH

23040-1118

1
Out of stock

23040B

LAMP-SIGNAL,RR,LH

23040-1119

1
Out of stock

23040C

LAMP-SIGNAL,RR,RH

23040-1120

1
Out of stock

92009

SCREW,TAPPING,4X12

92009-1254

1
Out of stock

92009A

SCREW,TAPPING,5X20

92009-1399

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1
Out of stock

92069A

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock

92075

DAMPER,SIGNAL LAMP,FR

92075-1722

1
Out of stock

224

SCREW-PAN-WP-CROS,5X1

224D0516

1
Out of stock

224A

SCREW-PAN-WP-CROS,5X3

224D0535

1
Out of stock

411

WASHER-PLAIN,5MM

411B0500

1
Out of stock
