1987 Kawasaki Ninja® 1000R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

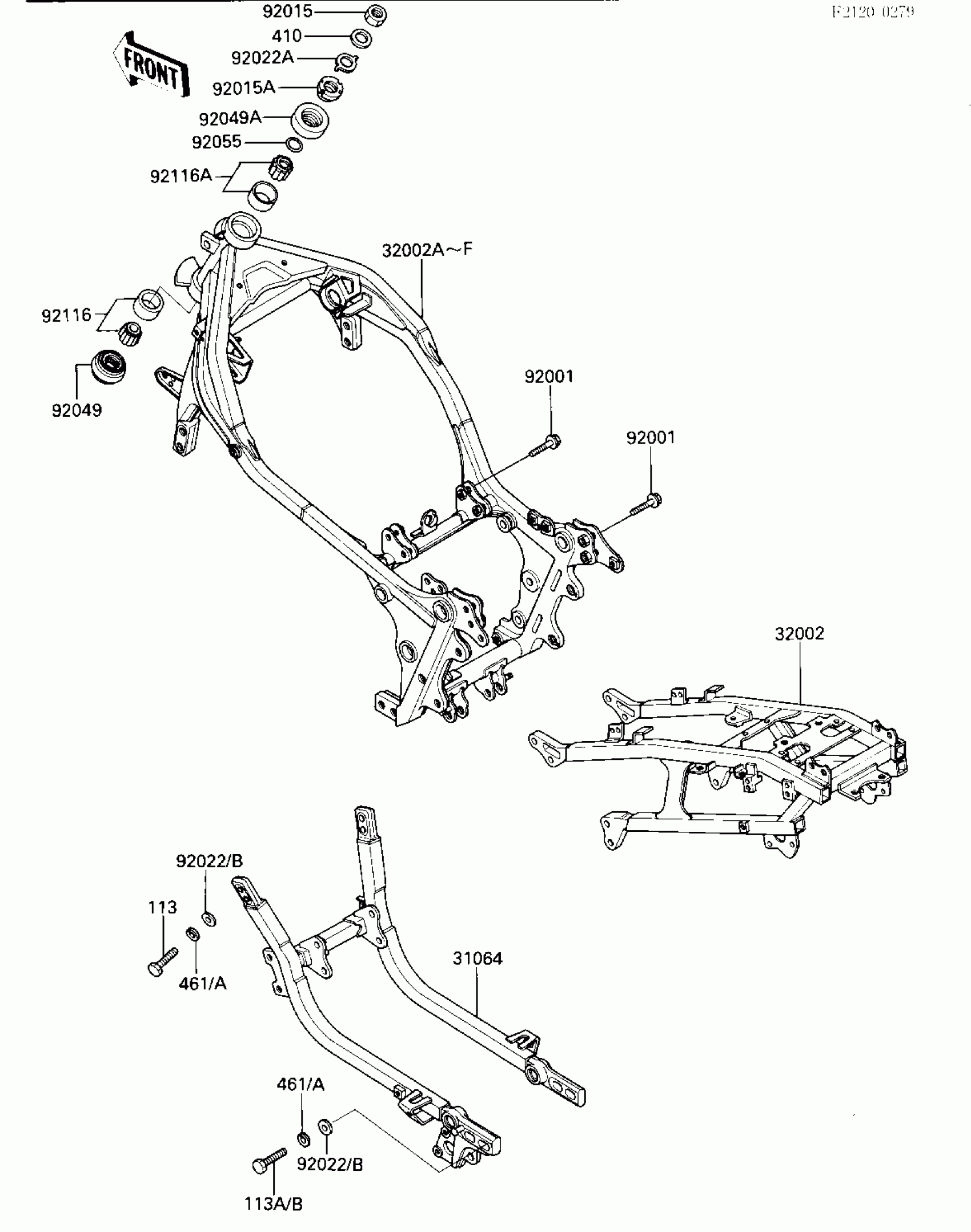

1987 Kawasaki Ninja® 1000R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

31064

PIPE-COMP,FRAME,LWR

31064-1067

1

$344.79

In stock

32002

FRAME-COMP,RR

32002-1808

1

$697.83

In stock

32002E

FRAME-COMP,FR

32002-1932

1

$1,165.44

In stock

32002F

FRAME-COMP,FR

32002-1934

1

$1,892.58

In stock

92001

BOLT,FLANGED,8X28,BLACK

92001-1508

1
Out of stock

92015

NUT,18MM

92015-1404

1

$21.97

In stock

92015A

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92022A

1

$7.49

In stock

92022B

WASHER,10.5X18X2.5

92022-1876

1
Out of stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92055

RING-O,24.7MM

92055-1160

1

$3.72

In stock

92116

1

$33.21

In stock

92116A

1

$43.76

In stock

113

BOLT-SMALL-FINE

113P1030

1
Out of stock

113B

BOLT-SMALL-FINE

113S1035

1
Out of stock

410

W-PLAIN-S

410F1800

1
Out of stock

461A

WASHER-SPRING,10MM,BLACK

461K1000

1
Out of stock
