1987 Kawasaki Ninja® 1000R Fairing Lowers Diagram

← All diagrams

Find the part on the Fairing Lowers diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

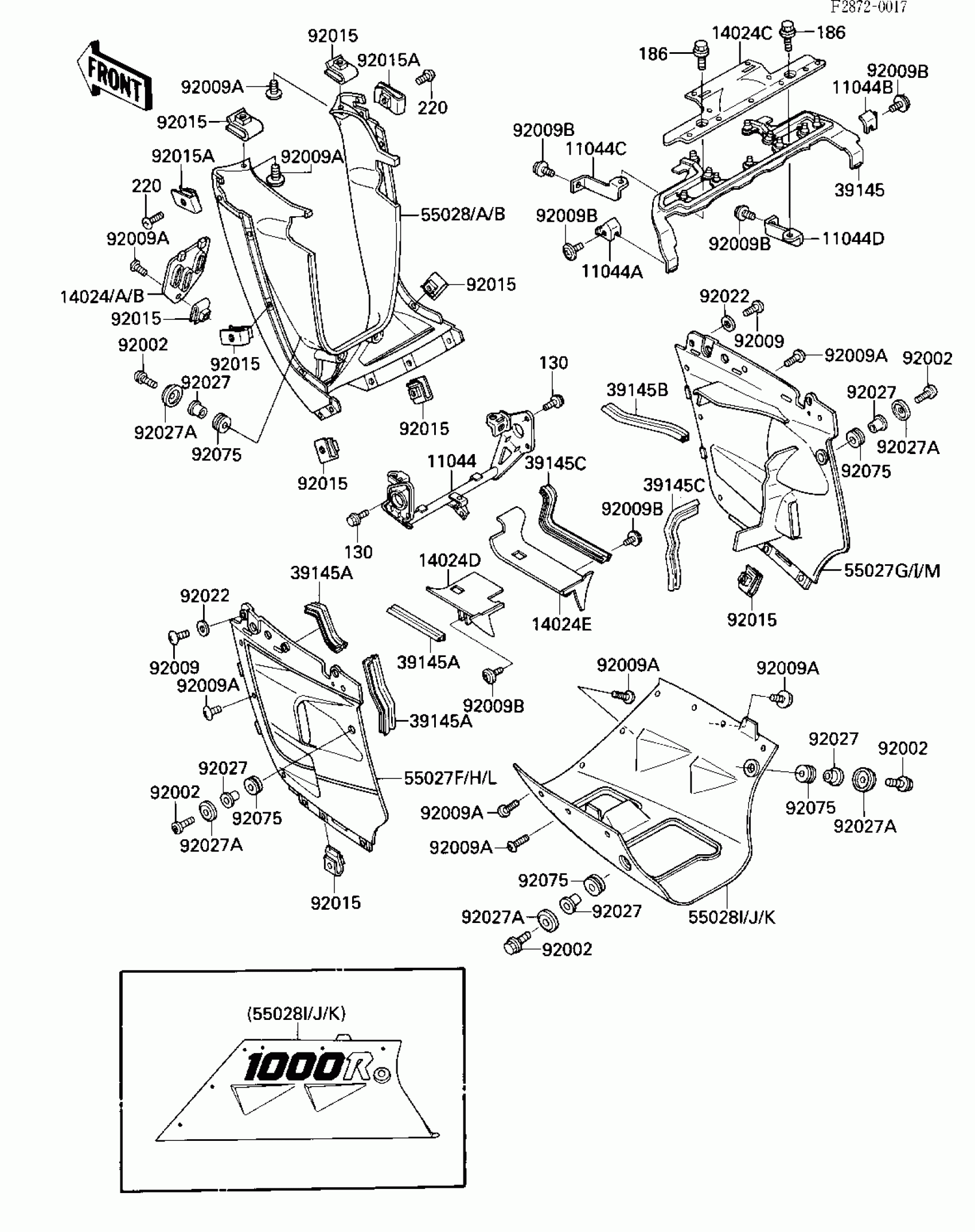

1987 Kawasaki Ninja® 1000R Fairing Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,OIL COOLER

11044-1198

1
Out of stock

11044A

BRACKET,CENTER COVER,

11044-1441

1
Out of stock

11044B

BRACKET,CENTER COVER,

11044-1442

1
Out of stock

11044C

BRACKET,COWLING,SIDE,

11044-1580

1
Out of stock

11044D

BRACKET,COWLING,SIDE,

11044-1581

1
Out of stock

14024

COVER,RESERVE TANK,P.A.WH (Can

14024-1068-R1

1
Out of stock

14024A

COVER,RESERVE TANK,P.

14024-1068-T2

1
Out of stock

14024C

COVER,CNT

14024-1109

1
Out of stock

14024D

COVER,LOWER COWLING I

14024-1114

1
Out of stock

14024E

COVER,LOWER COWLING I

14024-1115

1
Out of stock

39145

TRIM-SEAL,CENTER COVE

39145-1054

1
Out of stock

39145A

TRIM-SEAL,L=175

39145-1055

1
Out of stock

39145B

TRIM-SEAL,SIDE COWLING

39145-1056

1
Out of stock

39145C

TRIM-SEAL,SIDE COWLIN

39145-1057

1
Out of stock

55027H

COWLING-ASSY,SIDE,LH,

55027-5018-T4

1
Out of stock

55027I

COWLING-ASSY,SIDE,RH,

55027-5019-T4

1
Out of stock

55027L

COWLING-ASSY,SIDE,LH,WHIT (Can

55027-5029-W5

1
Out of stock

55027M

COWLING-ASSY,SIDE,RH,WHIT (Can

55027-5030-W5

1
Out of stock

55028

COWLING,FR,P.A.WHITE (Canada)

55028-1090-R1

1
Out of stock

55028A

COWLING,FR,P.C.GRAY

55028-1090-T2

1
Out of stock

55028J

COWLING,LWR,P.C.GRAY

55028-5201-T2

1
Out of stock

55028K

COWLING,LWR,P.A.WHITE (Canada)

55028-5302-R1

1
Out of stock

92002

BOLT,SOCKET,6X18

92150-1553

1
Out of stock

92009

SCREW,SEAT COVER

92009-1186

1
Out of stock

92009A

SCREW,5X14

92009-1653

1
Out of stock

92009B

SCREW,6X10

92009-1402

1
Out of stock

92015

NUT,5MM

92015-1710

1
Out of stock

92015A

NUT,4MM

92015-1558

1
Out of stock

92022

WASHER,5.2X18X1.2

92022-285

1
Out of stock

92027

COLLAR,L=9.1,WHITE

92027-1795

1
Out of stock

92027A

COLLAR,L=6.5,WHITE

92027-1886

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

130

BOLT-FLANGED,8X12

130G0812

1
Out of stock

186

BOLT-UPSET-WP

186C0618

1
Out of stock

220

SCREW PAN HEAD 4X16

220B0416

1
Out of stock
