1987 Kawasaki Ninja® 1000R Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

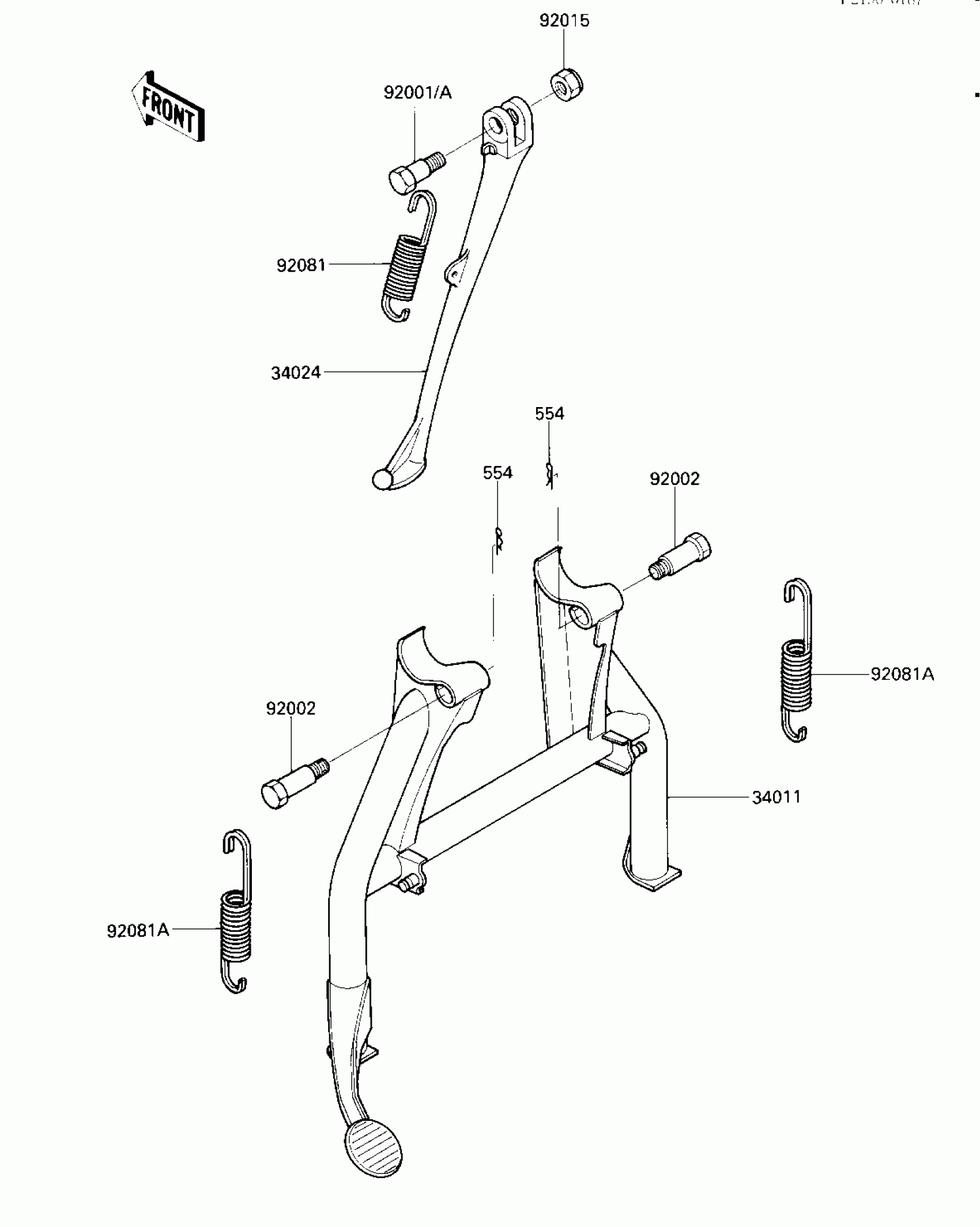

1987 Kawasaki Ninja® 1000R Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-CENTER

34011-1123

1

$180.80

In stock

34024

STAND-SIDE

34024-1194

1
Out of stock

92001

BOLT,SIDE STAND

92001-1788

1

$7.86

In stock

92002

BOLT,CENTER STAND,10M

92002-1630

1
Out of stock

92015

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92081

SPRING,SIDE STAND

92081-1952

1
Out of stock

92081A

SPRING,CENTER STAND

92081-1989

1

$21.29

In stock

554

PIN-SNAP,10MM

554A1000

1

$1.22

In stock
