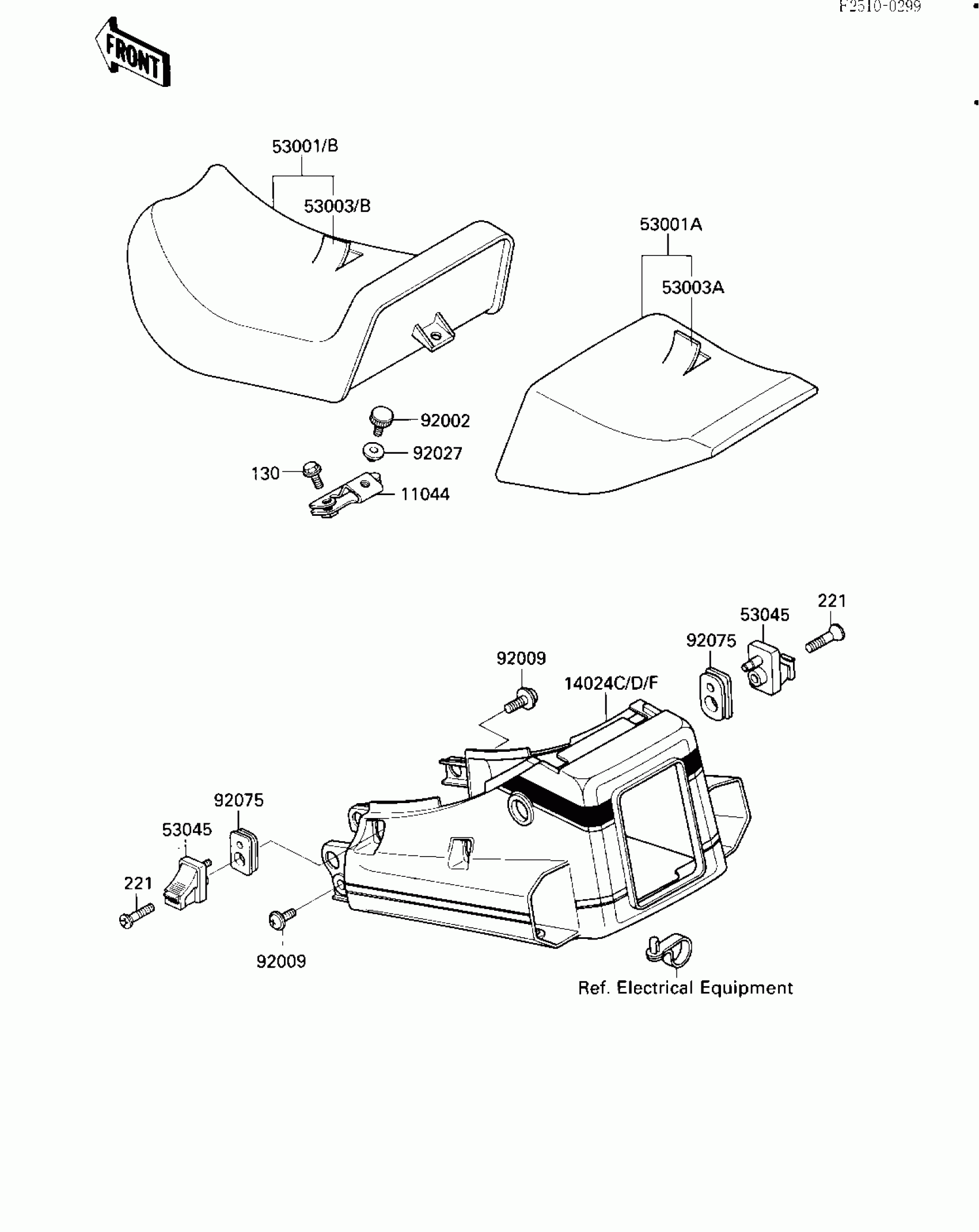

Kawasaki Ninja® 1000R SEAT/SEAT COVER Diagram

Description

Price

11044

BRACKET,SEAT

11044-1428

Unavailable

14024D

COVER,SEAT,EBONY/P.C.

14025-5242-T4

$571.17

14024F

COVER,SEAT,WHITE/GOLD (Canada)

14025-5268-W5

Unavailable

53001A

SEAT-ASSY,RR

53001-1421

$413.67

53001B

SEAT-ASSY,FR

53001-1507

$652.44

53003A

LEATHER,REAR SEAT

53003-1136

$184.81

53003B

LEATHER,FRONT SEAT

53003-1184

$230.43

53045

HOOK-ASSY,ROPE

53045-1051

$41.39

92002

BOLT,6MM

92002-1602

Unavailable

92009

SCREW,6X14

92009-1288

$2.99

92027

COLLAR,L=6.5

92027-252

$4.61

92075

DAMPER,ROPE HOOK

92075-1726

$5.10

130

BOLT,FLANGED,6X14

130G0614

Unavailable

221

SCREW-CSK-CROS,6X25

221E0625

$3.32
