2013 Kawasaki Ninja® 1000 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

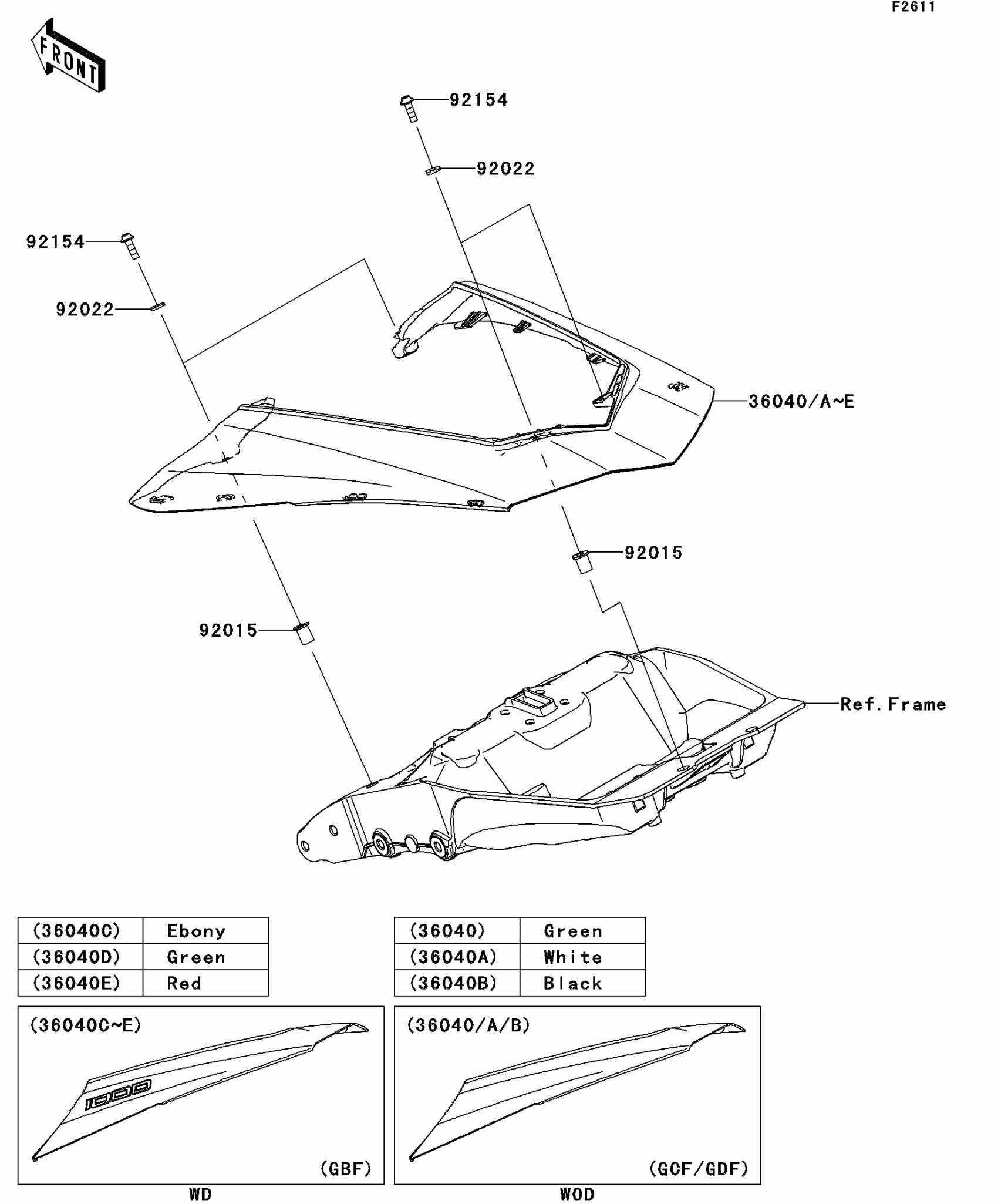

2013 Kawasaki Ninja® 1000 Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36040

COVER-TAIL,C.L.GREEN

36040-0106-17P

1
Out of stock

36040A

COVER-TAIL,P.S.WHITE

36040-0106-25Y

1

$224.92

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92022

1

$3.12

In stock

92154

BOLT,SOCKET,5X16

92154-0026

1

$2.10

In stock
