2013 Kawasaki Ninja® 1000 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

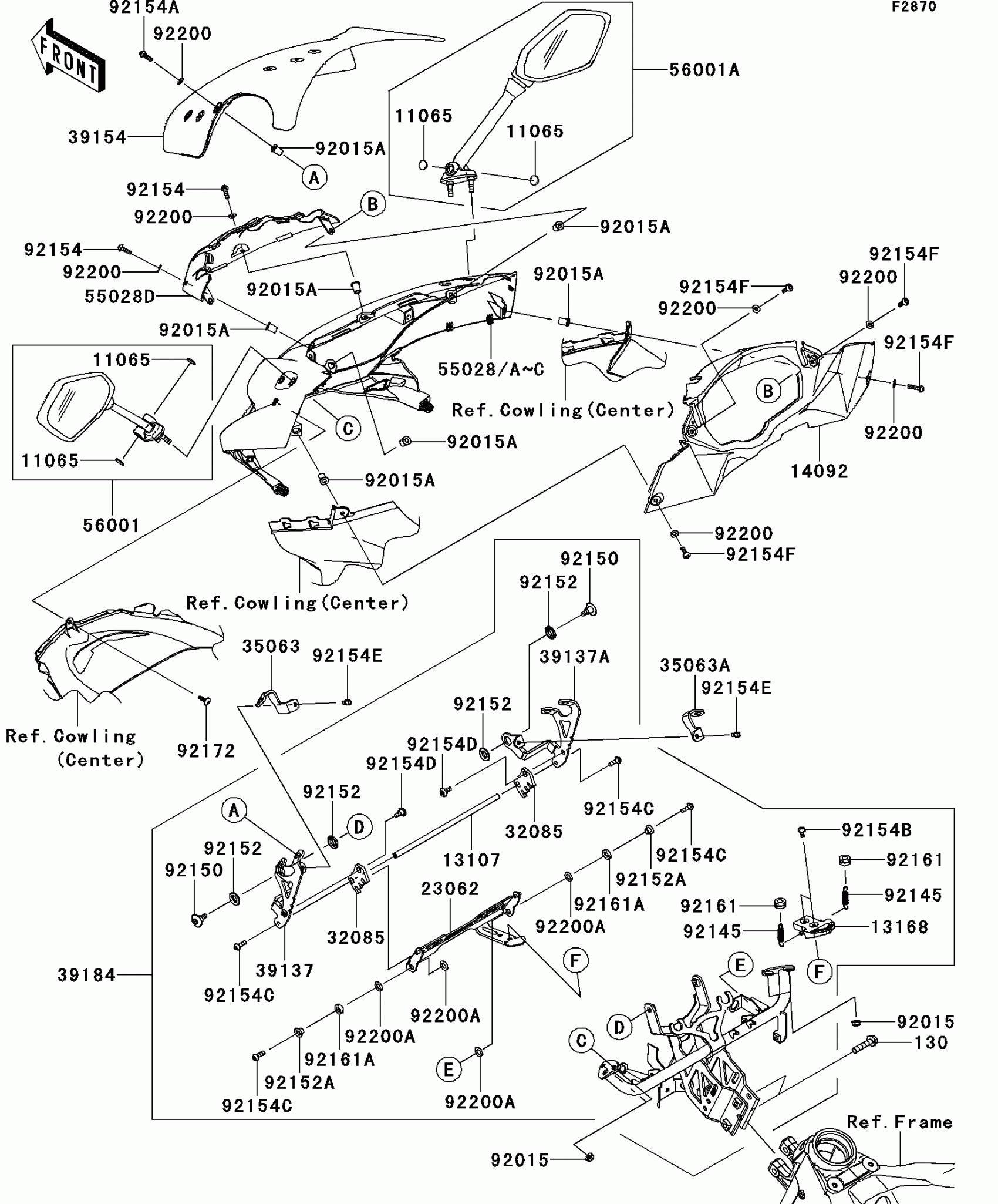

2013 Kawasaki Ninja® 1000 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0787

1

$1.95

In stock

13107

SHAFT

13107-0241

1

$68.00

In stock

13168

LEVER,ADJUST

13168-0211

1

$12.35

In stock

14092

COVER,METER,F.BLACK

14092-0792-6Z

1

$139.73

In stock

23062

BRACKET-COMP

23062-0136

1

$55.68

In stock

32085

STOPPER

32085-0201

1

$14.24

In stock

35063

STAY,LH

35063-0738

1

$12.19

In stock

35063A

STAY,RH

35063-0739

1

$12.19

In stock

39137

STAY-COMP,LH

39137-0064

1

$43.75

In stock

39137A

STAY-COMP,RH

39137-0065

1

$43.75

In stock

39154

WINDSHIELD

39154-0052

1

$185.47

In stock

39184

BRACKET-ASSY,WINDSHIELD

39184-0703

1
Out of stock

55028B

COWLING,UPP,P.S.WHITE

55028-0343-25Y

1
Out of stock

55028C

COWLING,UPP,M.S.BLACK

55028-0343-660

1
Out of stock

55028D

COWLING,CNT,F.BLACK

55028-0353-6Z

1

$65.77

In stock

56001

MIRROR-ASSY,LH

56001-0231

1

$74.94

In stock

56001A

MIRROR-ASSY,RH

56001-0232

1

$74.94

In stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92145

SPRING

92145-0805

1

$2.66

In stock

92150

BOLT,SOCKET,6MM

92150-1154

1

$6.24

In stock

92152

COLLAR,10X20X3.75

92152-0913

1

$16.78

In stock

92152A

COLLAR,5.6X8X7.8

92152-1506

1

$1.10

In stock

92154

BOLT,SOCKET,5X16

92154-0026

1

$2.10

In stock

92154A

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92154B

BOLT,SOCKET,5X10

92154-0211

1

$1.78

In stock

92154C

BOLT,SOCKET,5X16

92154-0287

1

$2.00

In stock

92154D

BOLT,SOCKET,5X14

92154-0427

1

$2.68

In stock

92154E

BOLT,SOCKET,5X12

92154-0503

1

$1.44

In stock

92154F

BOLT,SOCKET,5X20

92154-0829

1

$2.19

In stock

92161

DAMPER

92161-0056

1

$2.76

In stock

92161A

DAMPER,8.2X15X3

92161-0998

1

$1.10

In stock

92172

SCREW,TAPPING,5X16

92172-0238

1

$0.97

In stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,8.2X15X1

92200-0742

1
Out of stock

130

BOLT-FLANGED,8X35

130CB0835

1

$4.00

In stock
