2013 Kawasaki Ninja® 1000 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

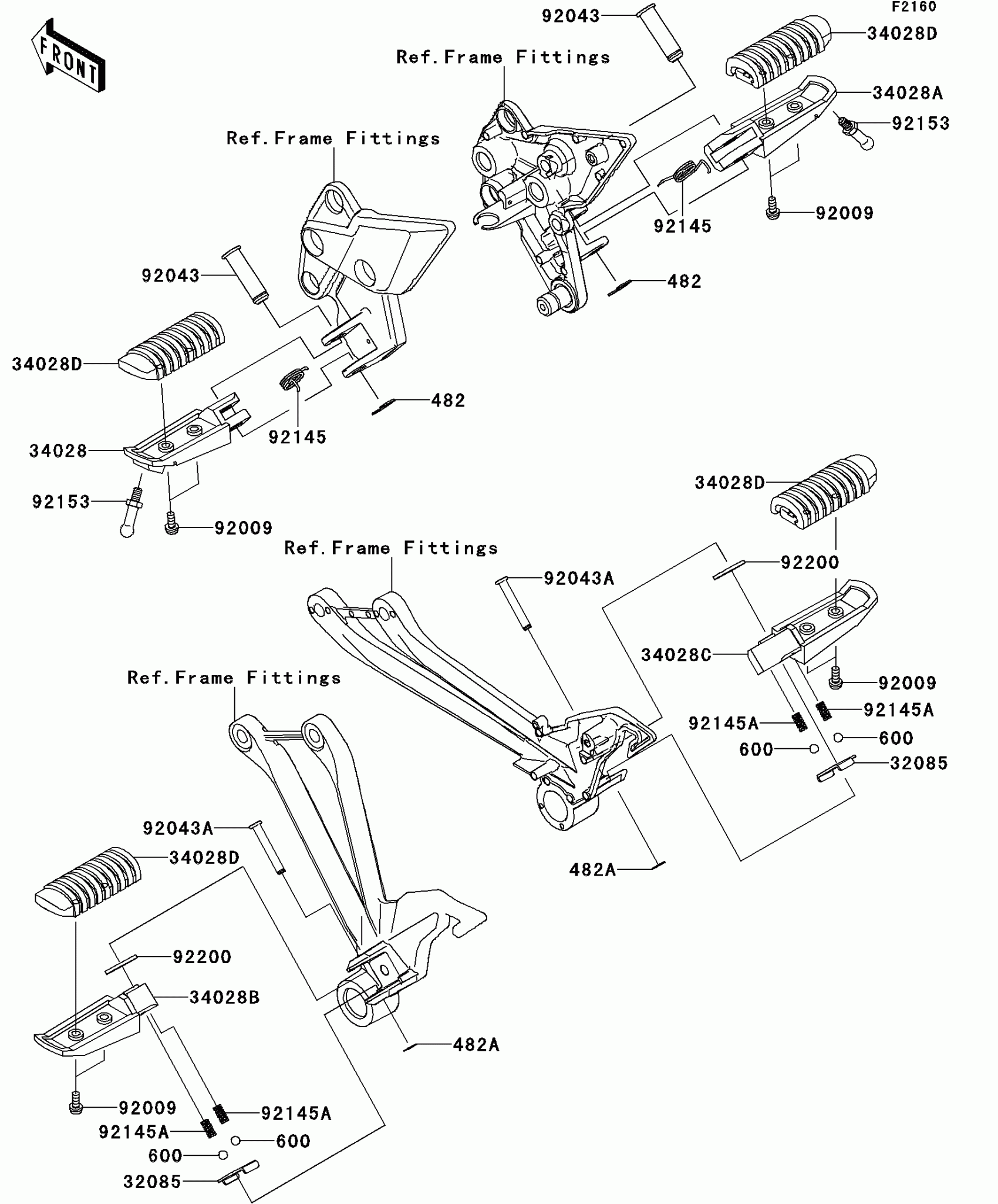

2013 Kawasaki Ninja® 1000 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,REAR STEP

32085-0047

1

$4.42

In stock

34028

STEP,FR,LH

34028-0127

1

$53.69

In stock

34028A

STEP,FR,RH

34028-0128

1

$47.62

In stock

34028B

STEP,RR,LH

34028-0129

1
Out of stock

34028C

STEP,RR,RH

34028-0130

1
Out of stock

34028D

STEP,RUBBER

34028-0133

1

$11.74

In stock

92009

SCREW,5X14

92009-1404

1
Out of stock

92043

PIN,12X42.5

92043-1594

1

$5.25

In stock

92043A

PIN,6X40

92043-1595

1

$1.95

In stock

92145

1

$3.49

In stock

92145A

SPRING

92145-1319

1

$1.54

In stock

92153

BOLT,BANK SENSOR

92153-1462

1
Out of stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock

482

1

$0.98

In stock

482A

CIRCLIP-TYPE-E

482EA5000

1

$1.20

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
