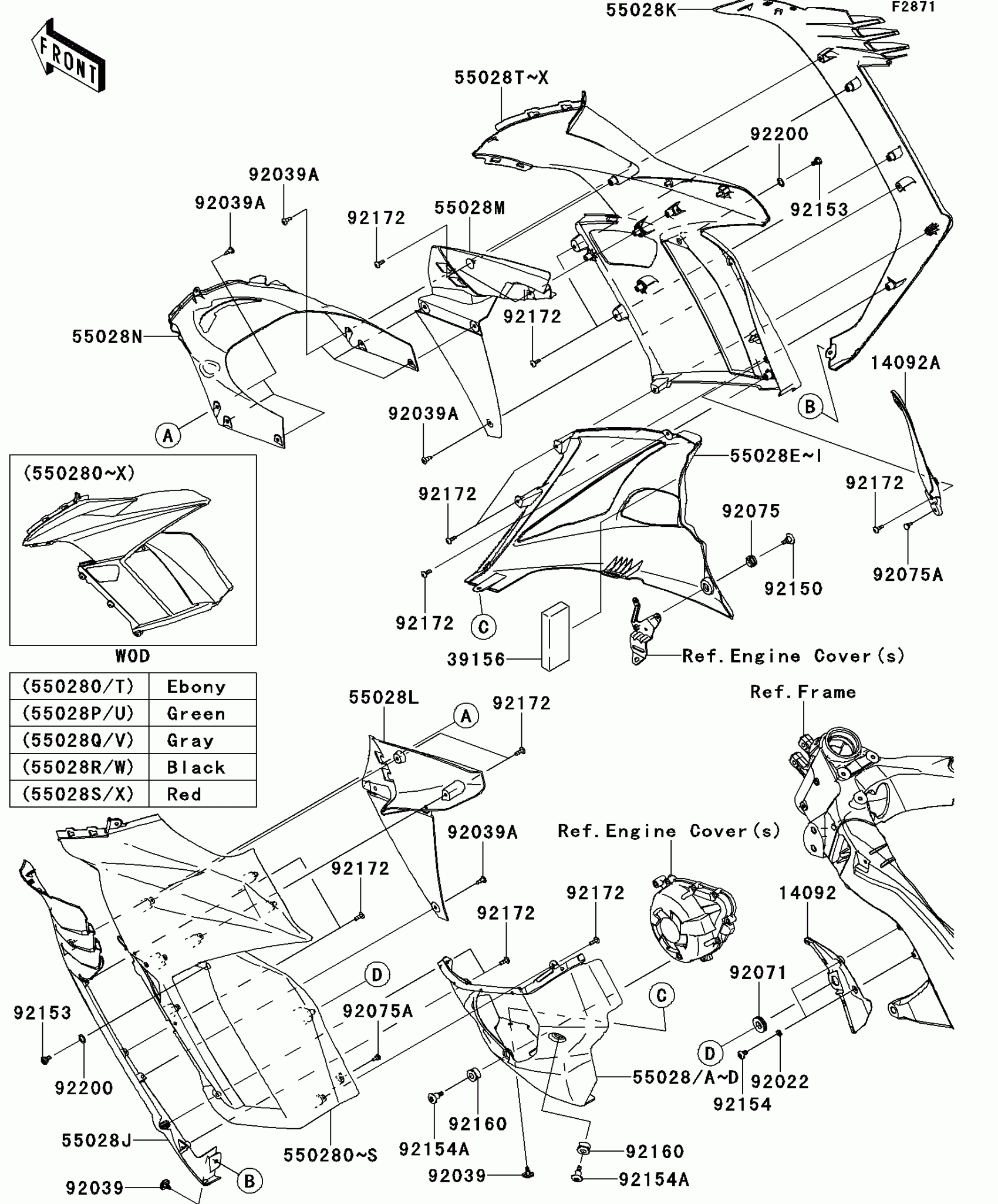

2013 Kawasaki Ninja® 1000 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,LH

14092-0250

1
Out of stock

14092A

COVER,RH

14092-0251

1
Out of stock

39156

PAD,20X120X50

39156-0708

1
Out of stock

55028B

COWLING,LWR,LH,P.S.WHITE

55028-0346-25Y

1
Out of stock

55028C

COWLING,LWR,LH,M.F.M.GRAY

55028-0346-40K

1
Out of stock

55028G

COWLING,LWR,RH,P.S.WHITE

55028-0347-25Y

1
Out of stock

55028H

COWLING,LWR,RH,M.F.M.GRAY

55028-0347-40K

1
Out of stock

55028J

COWLING,SLAT,LH,F.BLACK

55028-0348-6Z

1
Out of stock

55028K

COWLING,SLAT,RH,F.BLACK

55028-0349-6Z

1
Out of stock

55028L

COWLING,INNER,LH

55028-0350

1
Out of stock

55028M

COWLING,INNER,RH

55028-0351

1
Out of stock

55028N

COWLING,FR

55028-0352

1
Out of stock

55028P

COWLING,SIDE,LH,C.L.GREEN

55028-0386-17P

1
Out of stock

55028R

COWLING,SIDE,LH,M.S.BLACK

55028-0386-660

1
Out of stock

55028U

COWLING,SIDE,RH,C.L.GREEN

55028-0387-17P

1
Out of stock

55028W

COWLING,SIDE,RH,M.S.BLACK

55028-0387-660

1
Out of stock

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock

92039

RIVET,HOLE 8MM

92039-0014

1
Out of stock

92039A

RIVET

92039-0068

1
Out of stock

92071

GROMMET

92071-1043

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92075A

DAMPER,6X10X15

92075-1808

1
Out of stock

92150

BOLT,SOCKET,6MM

92150-1154

1
Out of stock

92153

BOLT,SOCKET,6MM

92153-1956

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0026

1
Out of stock

92154A

BOLT,6X24

92154-0348

1
Out of stock

92160

DAMPER

92160-1141

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

92200

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock
