2013 Kawasaki Ninja® 1000 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

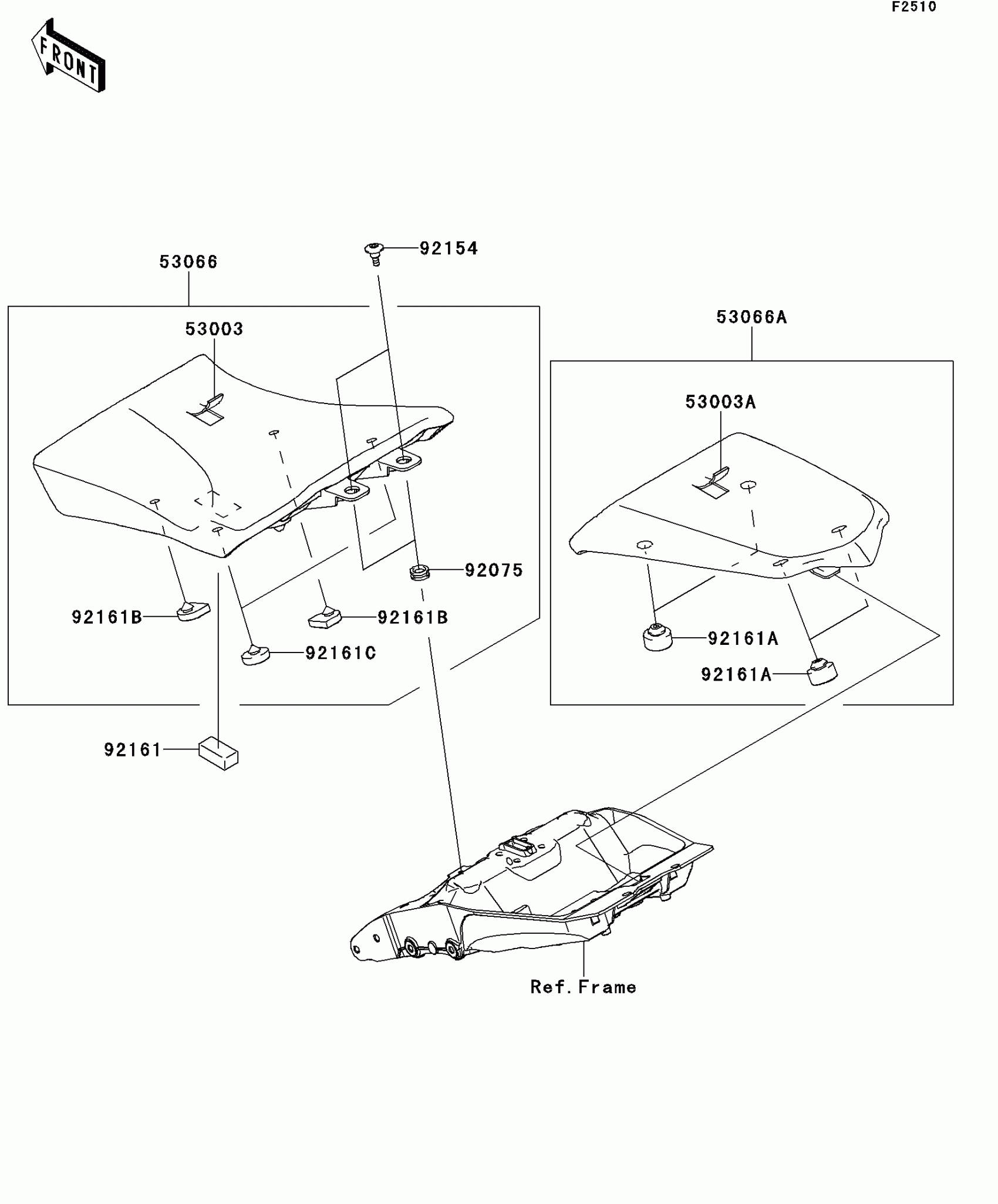

2013 Kawasaki Ninja® 1000 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53003

LEATHER,BLACK,FR

53003-0207-MA

1

$140.30

In stock

53003A

LEATHER,RR,BLACK

53003-0208-MA

1

$147.02

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0286-MA

1

$308.65

In stock

53066A

SEAT-ASSY,RR,BLACK

53066-0287-MA

1

$239.44

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92154

BOLT,6X20

92154-0292

1

$3.63

In stock

92161

DAMPER,FR SEAT

92161-0889

1

$3.25

In stock

92161A

DAMPER,SEAT

92161-0930

1

$5.91

In stock

92161B

DAMPER,FR SEAT,FR

92161-0954

1

$5.91

In stock

92161C

DAMPER,FR SEAT,RR

92161-0955

1

$7.32

In stock
