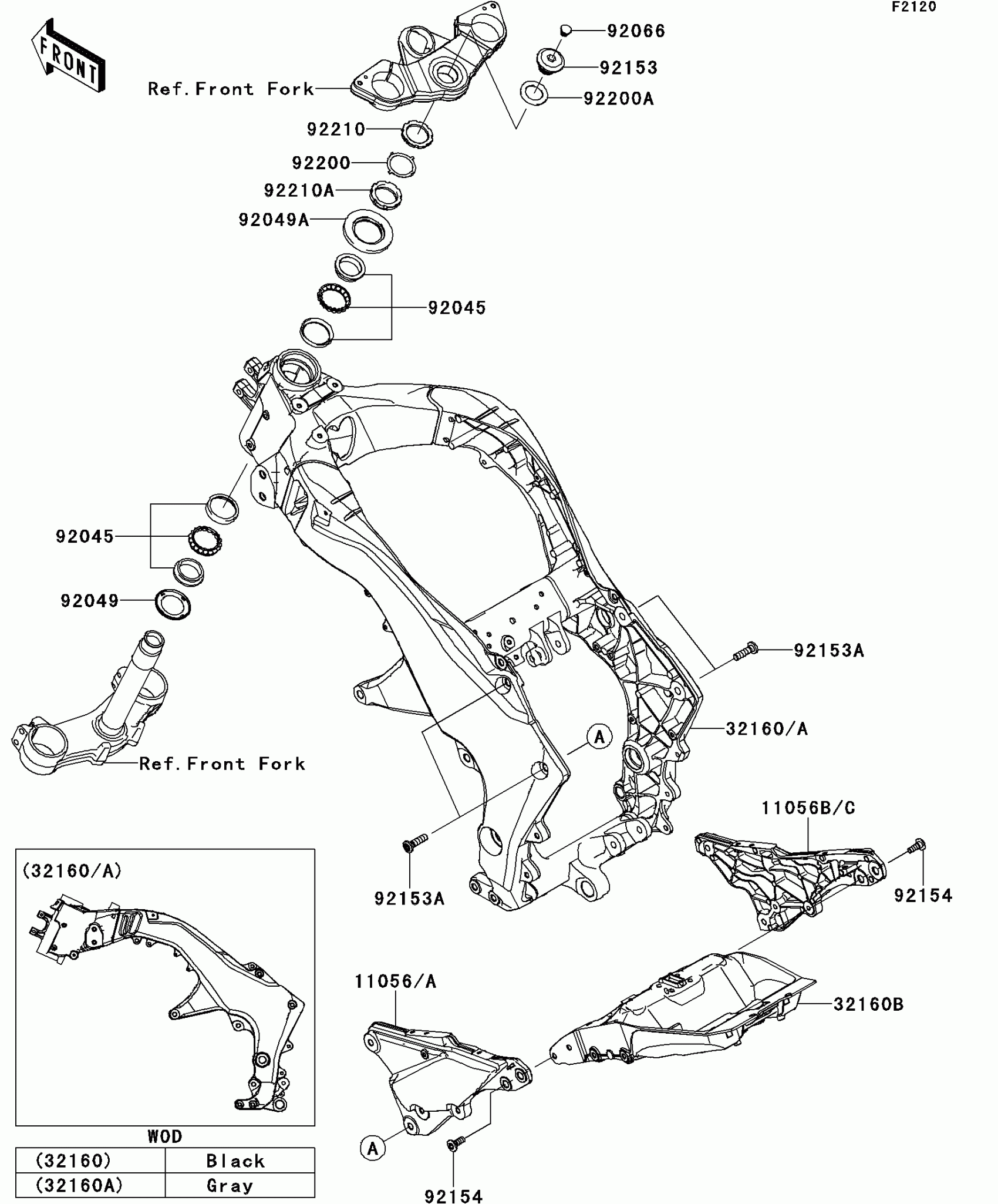

Find the part on the Frame diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,RR,LH,F.S.BLACK

11056-0572-18R

1
Out of stock

11056A

BRACKET,RR,LH,F.M.GRAY

11056-0572-26M

1

$351.60

In stock

11056B

BRACKET,RR,RH,F.S.BLACK

11056-0573-18R

1

$319.01

In stock

11056C

BRACKET,RR,RH,F.M.GRAY

11056-0573-26M

1

$351.60

In stock

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-0538-18R

1

$2,198.68

In stock

32160A

FRAME-COMP,MAIN,F.M.GRAY

32160-0538-26M

1

$2,066.45

In stock

32160B

FRAME-COMP,RR

32160-0635

1

$755.09

In stock

92045

1

$41.48

In stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,XMH 43 75 6.4J

92049-1382

1
Out of stock

92066

PLUG

92066-0071

1

$2.68

In stock

92153

BOLT,26MM

92153-0474

1
Out of stock

92153A

BOLT,SOCKET,10X35

92153-1442

1
Out of stock

92154

BOLT,SOCKET,8X23

92154-0379

1

$3.15

In stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,27X42X2.3

92200-0081

1
Out of stock

92210

NUT,STEERING STEM 35MM

92210-0062

1
Out of stock

92210A

NUT,STEERING STEM,35MM

92210-0077

1
Out of stock
