2013 Kawasaki Ninja® 1000 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

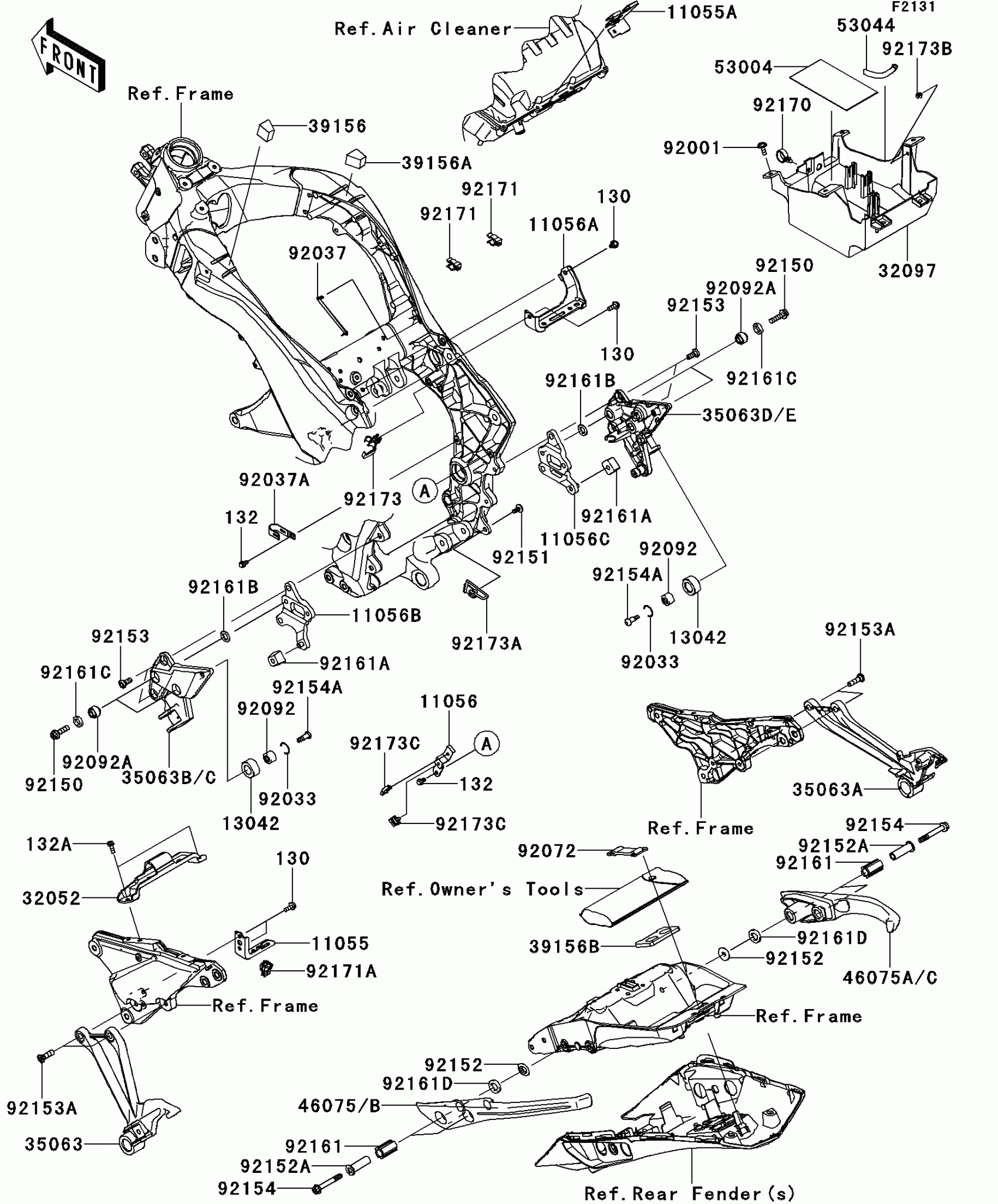

2013 Kawasaki Ninja® 1000 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,REGULATOR

11055-1951

1
Out of stock

11055A

BRACKET

11055-1989

1
Out of stock

11056

BRACKET

11056-0106

1
Out of stock

11056A

BRACKET,REGULATOR

11056-0169

1
Out of stock

11056B

BRACKET,FR,LH

11056-0358

1
Out of stock

11056C

BRACKET,FR,RH

11056-0359

1
Out of stock

13042

WEIGHT

13042-0709

1
Out of stock

32052

BRACKET-TANK

32052-0155

1
Out of stock

32097

CASE-BATTERY

32097-0555

1
Out of stock

35063

STAY,RR,LH,F.S.BLACK

35063-0659-18R

1
Out of stock

35063A

STAY,RR,RH,F.S.BLACK

35063-0660-18R

1
Out of stock

35063B

STAY,FR,LH,F.S.BLACK

35063-0726-18R

1
Out of stock

35063C

STAY,FR,LH,F.M.GRAY

35063-0726-26M

1
Out of stock

35063D

STAY,FR,RH,F.M.GRAY

35063-0727-26M

1
Out of stock

35063E

STAY,FR,RH,F.S.BLACK

35063-0828-18R

1
Out of stock

39156

PAD,LH

39156-0660

1
Out of stock

39156A

PAD,RH

39156-0661

1
Out of stock

39156B

PAD,TOOL BOTTOM

39156-0752

1
Out of stock

46075B

GRIP,TANDEM,LH

46075-0097

1
Out of stock

46075C

GRIP,TANDEM,RH

46075-0098

1
Out of stock

53004

MAT,BATTERY

53004-0560

1
Out of stock

53044

TRIM

53044-0018

1
Out of stock

92001

BOLT,6X18

92001-1342

1
Out of stock

92033

RING-SNAP,OD=22.2

92033-1102-SP

1
Out of stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92037A

CLAMP,CABLE,STEEL SHEET

92037-2014

1
Out of stock

92072

BAND,L=90

92072-045

1
Out of stock

92092

BUSHING-RUBBER

92092-0554

1
Out of stock

92092A

BUSHING-RUBBER,8.4X20X18

92092-1018-SP

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1156

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,8X25X4.6

92152-0980

1
Out of stock

92152A

COLLAR,9.2X13.8X38.5

92152-1629

1
Out of stock

92153

BOLT,SOCKET,8X20

92153-1621

1
Out of stock

92153A

BOLT,SOCKET,8X30

92153-1624

1
Out of stock

92154

BOLT,SOCKET,8X60

92154-0259

1
Out of stock

92154A

BOLT,SOCKET,6MM

92154-0800

1
Out of stock

92161

DAMPER

92161-0663

1
Out of stock

92161A

DAMPER,STEP STAY

92161-0942

1
Out of stock

92161B

DAMPER,12.5X21X2

92161-0943

1
Out of stock

92161C

DAMPER,12.5X20X4

92161-0944

1
Out of stock

92161D

DAMPER,14.5X25X3.5

92161-0959

1
Out of stock

92170

CLAMP

92170-1067

1
Out of stock

92171

CLAMP

92171-0974

1
Out of stock

92171A

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92173

CLAMP,CLIP

92173-0087

1
Out of stock

92173A

CLAMP

92173-0151

1
Out of stock

92173B

CLAMP

92173-0215

1
Out of stock

92173C

CLAMP

92173-0229

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132BA0610

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

1
Out of stock
