2002 Ski-Doo MX Z 800 Rev Windshield AND Console Diagram

← All diagrams

Find the part on the Windshield AND Console diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

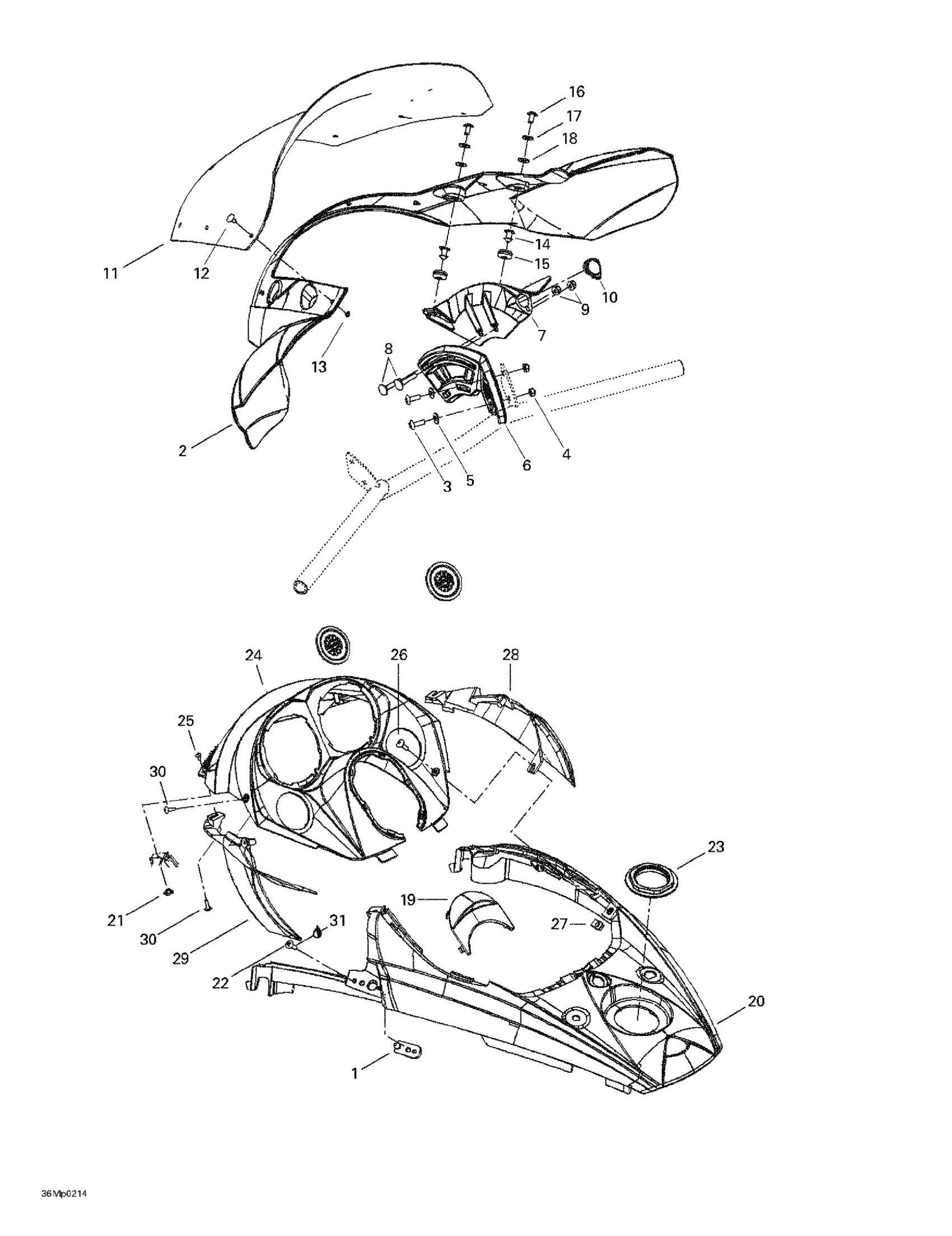

2002 Ski-Doo MX Z 800 Rev Windshield AND Console Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOOD LATCH - Call your local BRP dealership

517302616

—
Out of stock

2

Air Deflector

517302816

1
Out of stock

3

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

—
Out of stock

5

Flat Washer 6 mm

234062100

4

$1.03

In stock

6

RH Plate Bracket

517302704

—
Out of stock

LH Plate Bracket

517302705

—
Out of stock

7

RH Windshield Support

517302593

—
Out of stock

LH Windshield Support

517302442

—
Out of stock

8

4

$1.70

In stock

9

Hex. Flange Elastic Nut M6

233261494

4
Out of stock

10

Cap

517302715

—
Out of stock

11

Windshield, Medium

517302443

1
Out of stock

12

Windshield Dart

517303070

8
Out of stock

13

Push Nut

250100034

8

$1.11

In stock

14

Knob

517303439

4
Out of stock

15

Grommet

414036300

4
Out of stock

17

Washer M5

250200025

4
Out of stock

18

Rubber Washer 5 mm

250200024

4
Out of stock

19

CONSOLE CAP - Call your local BRP dealership

517302592

—
Out of stock

20

Center Console | Includes 20 - 21.

517302446

—
Out of stock

21

T-NUT, M4 - Call your local BRP dealership

250100030

—
Out of stock

22

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

—
Out of stock

23

CONSOLE NUT - Call your local BRP dealership

517302575

—
Out of stock

24

Support

517302447

—
Out of stock

25

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

250000078

—
Out of stock

26

Pan Head Phillips Bolt

250000083

—
Out of stock

27

Panel Nut M5 X 0.8

250000958

2
Out of stock

28

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

—
Out of stock

29

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

—
Out of stock

30

Phillips Screw K40 X 16

250000723

4
Out of stock

31

Loctite 243, 10 ml

293800060

1
Out of stock
