2002 Ski-Doo MX Z 800 Rev Utilities Diagram

← All diagrams

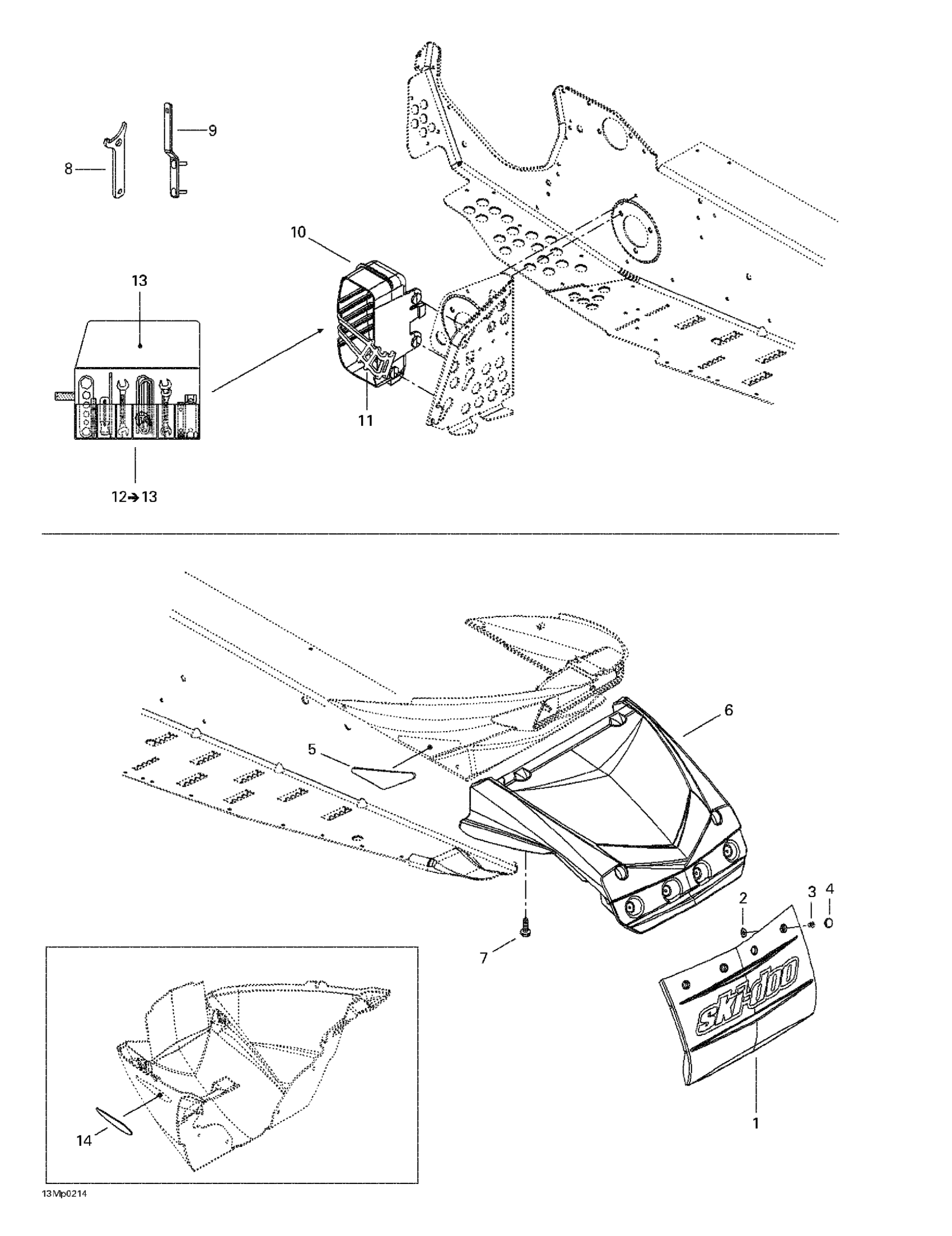

Find the part on the Utilities diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Ski-Doo MX Z 800 Rev Utilities Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Snow Guard (Black)

520000239

—
Out of stock

2

Flat Washer

517225900

4
Out of stock

3

Pop Rivet 3/16”

293150087

4
Out of stock

4

Black, Cap

277000203

4
Out of stock

5

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

—
Out of stock

6

Snow Deflector

520000243

—
Out of stock

7

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

—
Out of stock

8

Adjustment Wrench

529000035

1
Out of stock

9

Adjustment Wrench | LT

520000126

1
Out of stock

10

Trunk

520000287

—
Out of stock

11

LATCH - Call your local BRP dealership

570069700

—
Out of stock

12

Tool Kit | Includes 12 to 13

529035596

1
Out of stock

13

Tool Bag

520000047

—
Out of stock

14

FRONT REFLECTOR - Call your local BRP dealership

516001336

—
Out of stock
