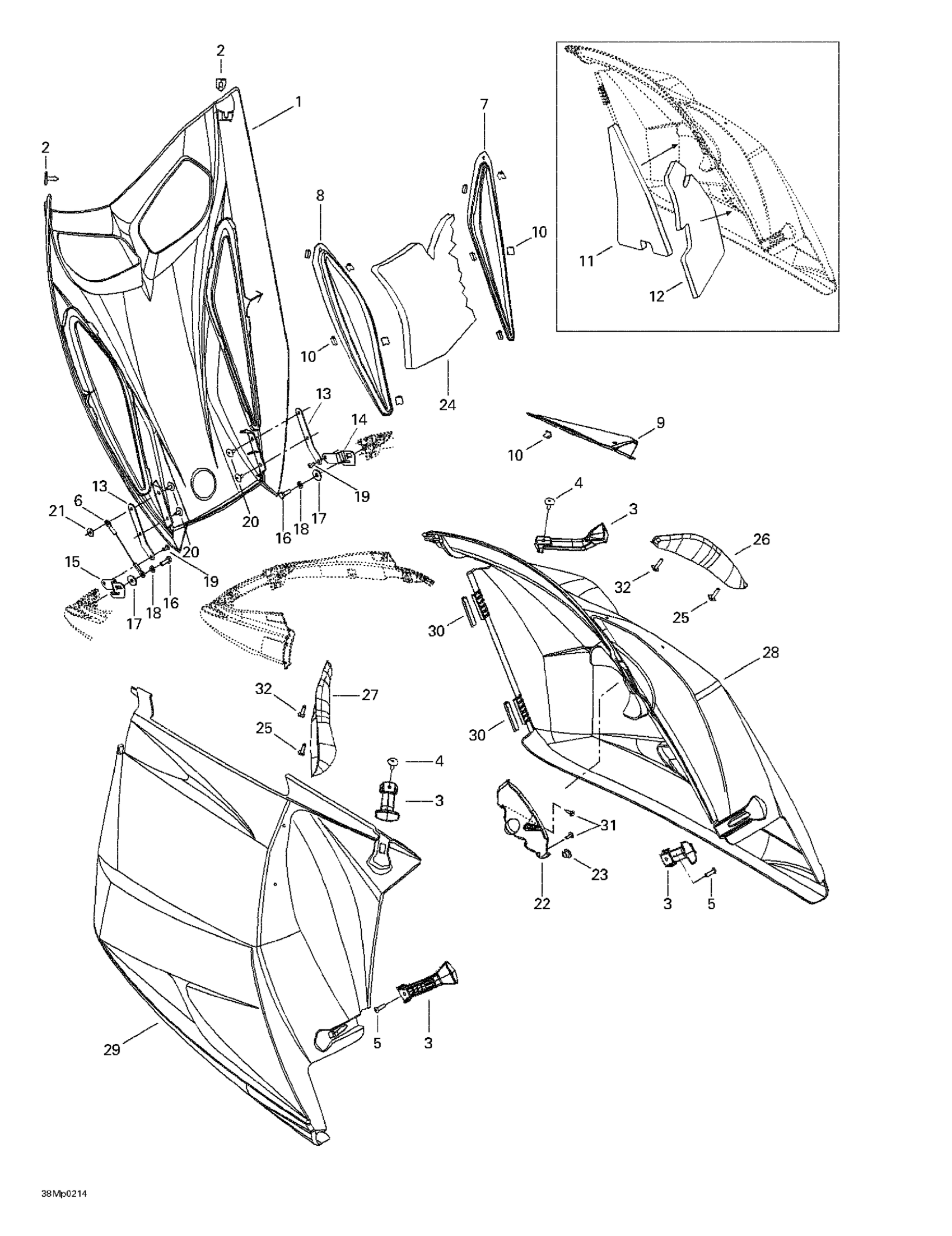

Find the part on the Hood diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Ski-Doo MX Z 800 Rev Hood Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Hood, Black

517302788

1
Out of stock

2

ROD_RETAINING - Call your local BRP dealership

517302543

—
Out of stock

3

Panel Latch

517302448

4
Out of stock

4

Pop Rivet 3/16”

293150087

2
Out of stock

5

Pop Rivet 3/16”

390410100

2
Out of stock

6

RETAINER CABLE - Call your local BRP dealership

517302673

—
Out of stock

7

RH Hood Grille

517302453

—
Out of stock

8

LH Hood Grille

517302454

—
Out of stock

9

RH Panel Grille

517302455

—
Out of stock

10

Clip | Europe Models

517306751

14
Out of stock

11

Front Foam

517302512

—
Out of stock

12

Rear Foam

517302513

—
Out of stock

13

UPPER HALF-HINGE - Call your local BRP dealership

517302544

—
Out of stock

14

RH HINGE ASS'Y - Call your local BRP dealership

517303668

—
Out of stock

15

LH Lower Half-Hinge

517302445

—
Out of stock

16

Hex. Screw M6 X 18

207161844

2
Out of stock

17

Flat Washer

224061121

2
Out of stock

18

2

$0.52

In stock

19

Avex Rivet

390909200

2
Out of stock

20

Pop Rivet 3/16"

390406500

4
Out of stock

21

Flat Washer

517225900

1
Out of stock

22

RH Console | Includes 22 - 23.

517302552

—
Out of stock

23

Black, Cap

275500241

2
Out of stock

24

Foam

517302557

—
Out of stock

25

Phillips Screw K40 X 16

250000723

2
Out of stock

26

RH Air Deflector

517302451

—
Out of stock

27

LH Air Deflector

517302452

—
Out of stock

28

RH Panel

517302439

—
Out of stock

29

LH Panel

517302440

—
Out of stock

30

Hinge Lock

517302823

4
Out of stock

31

Hex. Screw M4.8 X 1.8

243141680

2
Out of stock

32

Plastite Screw Type K-40, M4 X 25

250000101

2
Out of stock
