2002 Ski-Doo MX Z 800 Rev Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

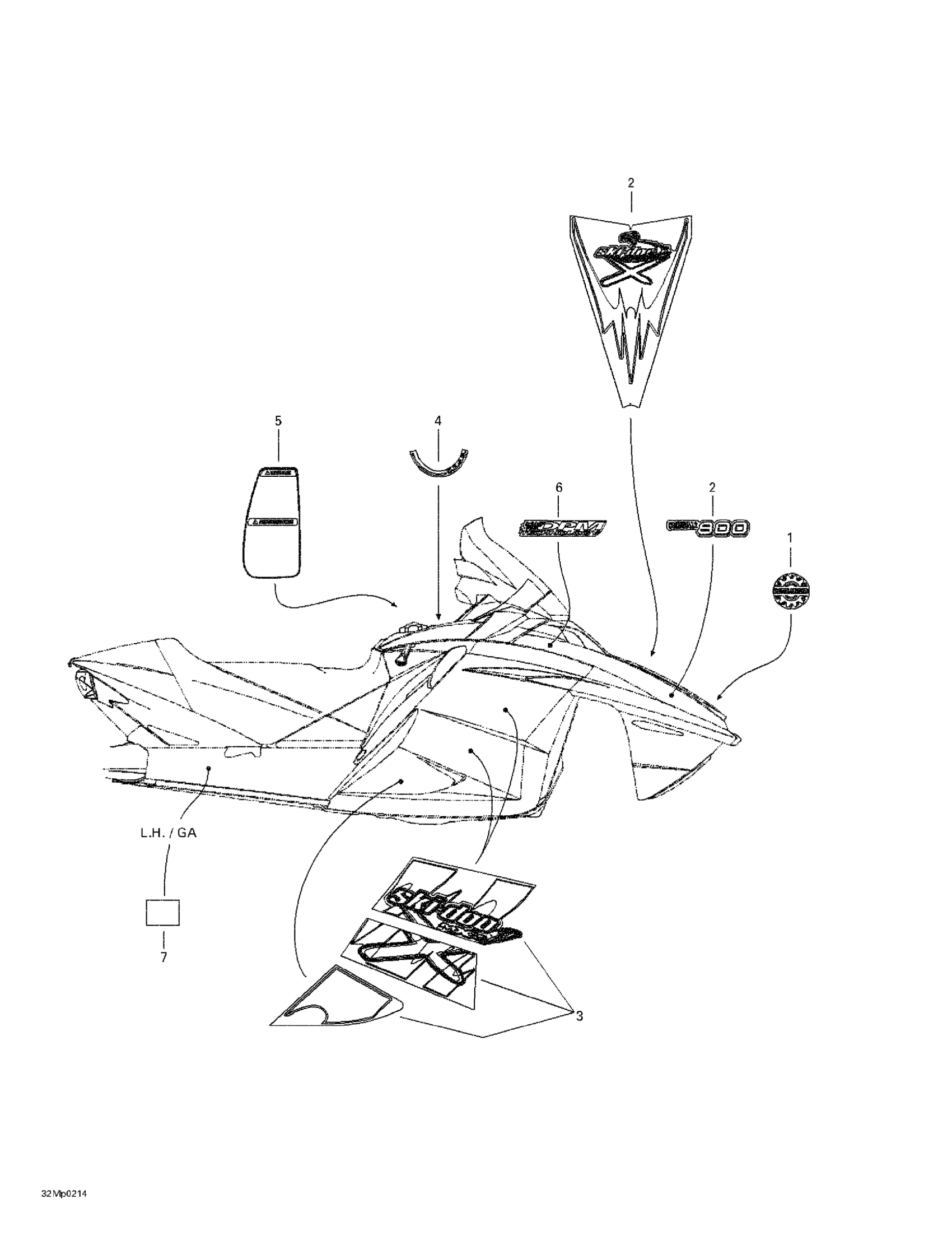

2002 Ski-Doo MX Z 800 Rev Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRP Logo 48mm

516008738

1
Out of stock

2

Hood Decal Kit

415128263

—
Out of stock

3

RH Bottom Pan Decal Kit

415128264

—
Out of stock

LH Bottom Pan Decal Kit

415128265

—
Out of stock

4

DESS DECAL - Call your local BRP dealership

516001335

—
Out of stock

5

Security Label, Starting

516001338

—
Out of stock

6

Dpm Decal | DPM / DPM HO 2 TONES

516000243

—
Out of stock

7

Tunnel Decal

516001724

—
Out of stock
← Bottom PAN Frame - Front AND Rear →
