2002 Ski-Doo MX Z 800 Rev Bottom PAN Diagram

← All diagrams

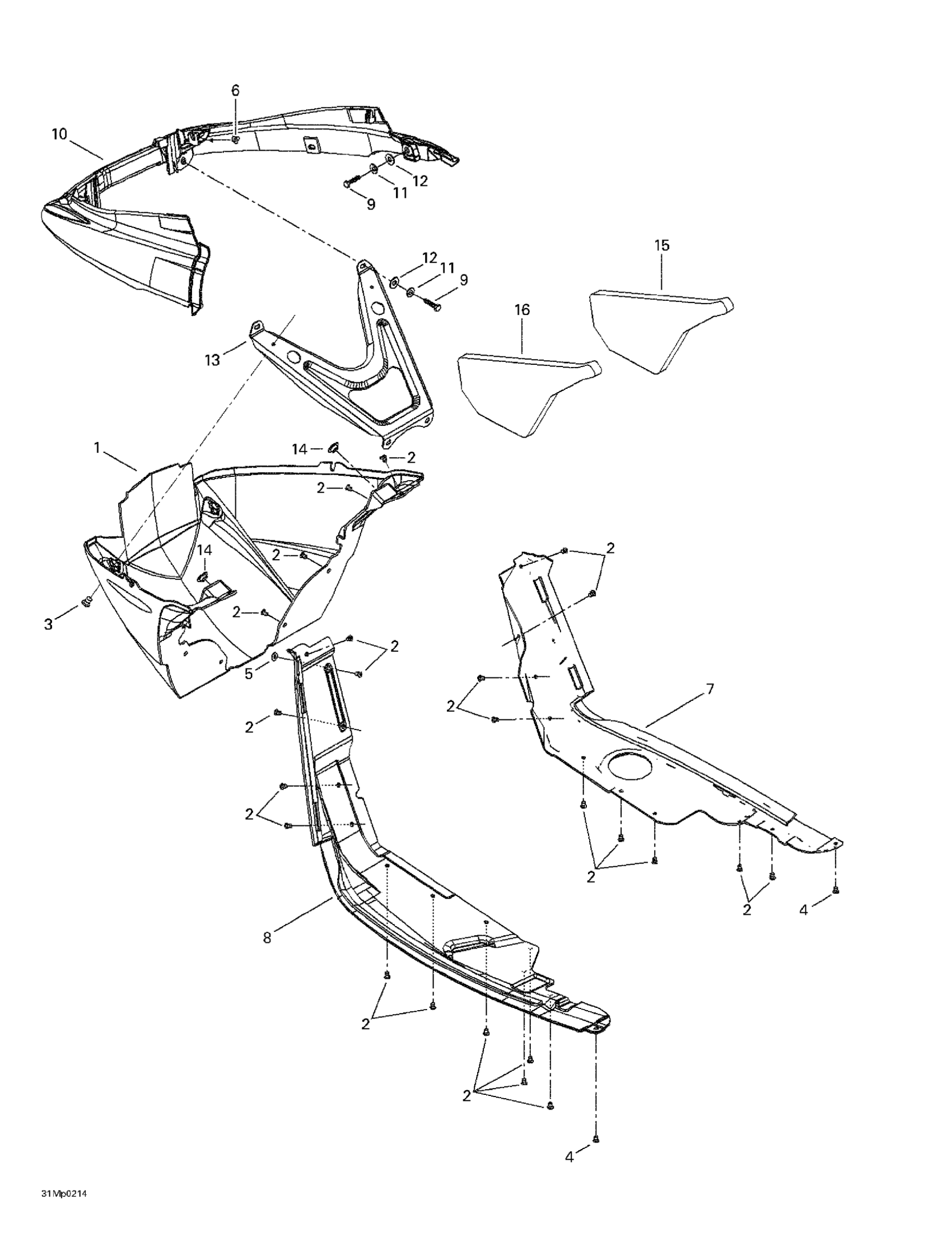

Find the part on the Bottom PAN diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Ski-Doo MX Z 800 Rev Bottom PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BOTTOM PAN - Call your local BRP dealership

502006605

—
Out of stock

2

Pop Rivet 3/16" | DS 650 X

293150104

28
Out of stock

3

Pop Rivet 3/16" | DS 650 X

293150104

2
Out of stock

4

Pop Rivet 3/16"

390406500

2
Out of stock

5

Washer

517124300

1
Out of stock

6

Nut Welded, M6

293100003

2
Out of stock

7

RH Bottom Pan

502006606

—
Out of stock

8

LH Bottom Pan

502006607

—
Out of stock

9

Hex. Screw M6 X 14

207161444

4
Out of stock

10

Bumper, Yellow

502006680

1
Out of stock

11

4

$0.52

In stock

12

Flat Washer

224061121

4
Out of stock

13

Support

502006772

1
Out of stock

14

Black, Nylon Cap

414916600

2
Out of stock

15

RH Foam

502006666

—
Out of stock

16

LH Foam

502006667

—
Out of stock
