2002 Ski-Doo MX Z 800 Rev Seat Diagram

← All diagrams

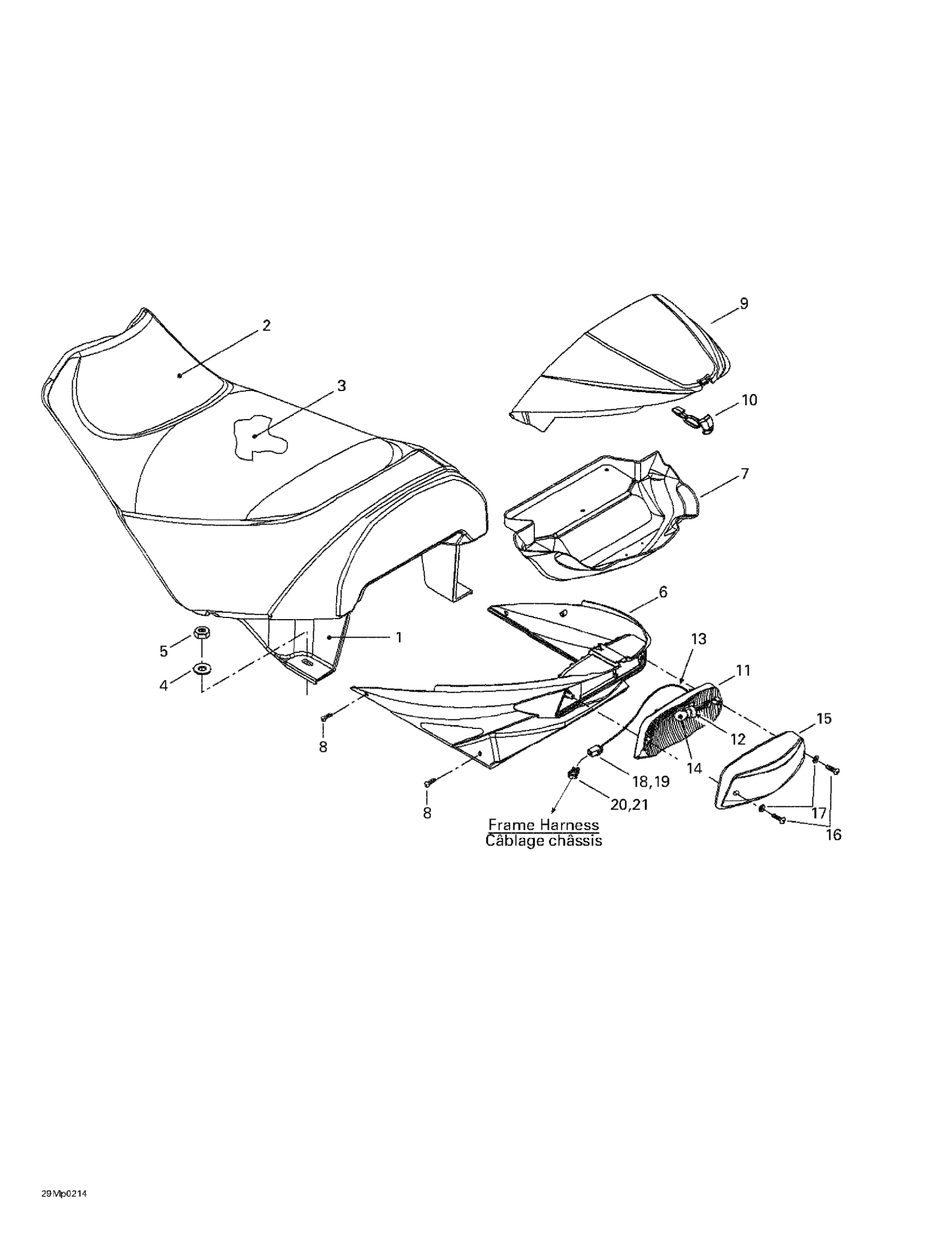

Find the part on the Seat diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Ski-Doo MX Z 800 Rev Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Seat Base

510003819

—
Out of stock

2

Seat Cover

510003820

—
Out of stock

3

Seat Foam

510003821

—
Out of stock

4

Flat Washer 8 mm

234082410

2
Out of stock

5

Hex. Elastic Stop Nut M8

232581414

2
Out of stock

6

Trunk

510004153

—
Out of stock

7

BOX LINER - Call your local BRP dealership

510004021

—
Out of stock

8

TRUSS PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

211000121

—
Out of stock

9

Cover

510003865

—
Out of stock

10

Bracket

510003917

—
Out of stock

11

REFLECTOR - Call your local BRP dealership

510004018

—
Out of stock

12

Rubber Damper

414979411

—
Out of stock

13

Fitting

515175516

—
Out of stock

14

Bulb

520000758

1
Out of stock

15

Lens

511000315

1
Out of stock

17

Washer - Call your local BRP dealership

414516400

—
Out of stock

18

1

$15.35

In stock

19

Male Terminal

515175232

3
Out of stock

20

Female Terminal

515175231

1
Out of stock

21

1

$15.35

In stock
