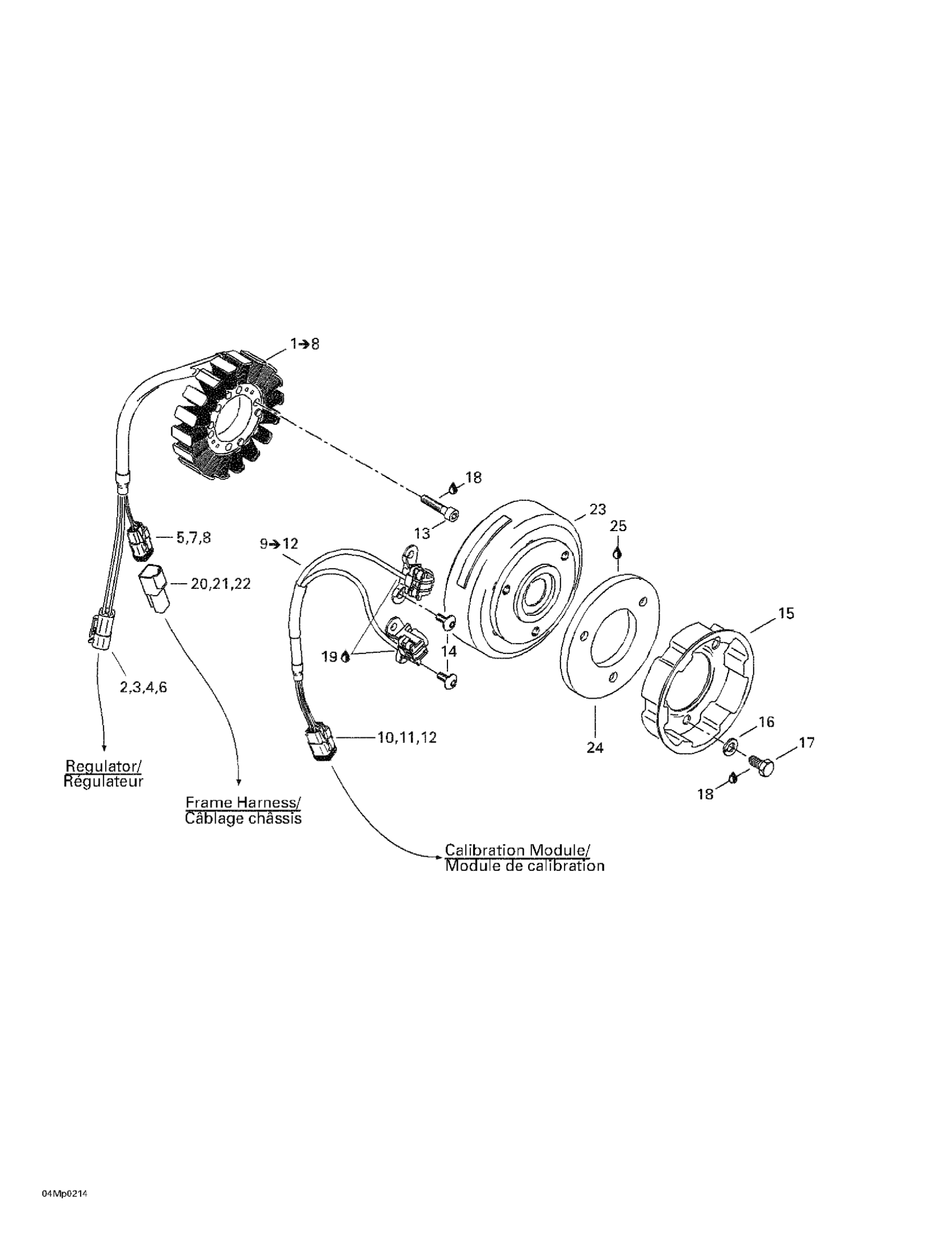

Ski-Doo MX Z 800 Rev, 2002 Magneto (12V, 360W) Diagram

#

Description
Price

1

Stator Plate A

420889905

$319.49

2

Female Terminal

515175567

$6.03

3

Female Terminal Housing, 4 Circuits

278001473

$25.35

4

Female Lock, 4 Circuits

278001474

$3.02

5

Female Terminal

278000632

$1.69

6

Sealing Cap

293000052

$2.55

7

Male Lock, 2 Circuits

409207500

$3.02

8

Female Connector, 2 Circuits

409207300

$9.60

9

Pickup Ass'y

410922948

$189.20

10

Male Connector, 4 Circuits | CE

278000739

$14.92

11

Female Terminal

278000632

$1.69

12

Male Lock, 4 Circuits | CE

278000738

$2.91

13

Socket Head Screw M6 X 30

205063044

$1.42

14

Torx Screw M6 X 16

420640324

$2.06

15

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.58

16

Washer-Lock Din.128

420945832

$1.09

17

Hex. Screw M8 X 20

207182044

$0.61

18

Loctite 243, 10 ml

293800060

$20.77

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Male Terminal

278000631

$4.12

21

Male Lock, 2 Circuits

409207500

$3.02

22

Male Terminal Housing, 2 Circuits

515175665

$8.02

23

FLYWHEEL - Call your local BRP dealership

410922947

Unavailable

24

Flywheel

420866756

Unavailable

25

Sealant Loctite 648

219703000

$35.72
