1980 Kawasaki LTD Belt Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

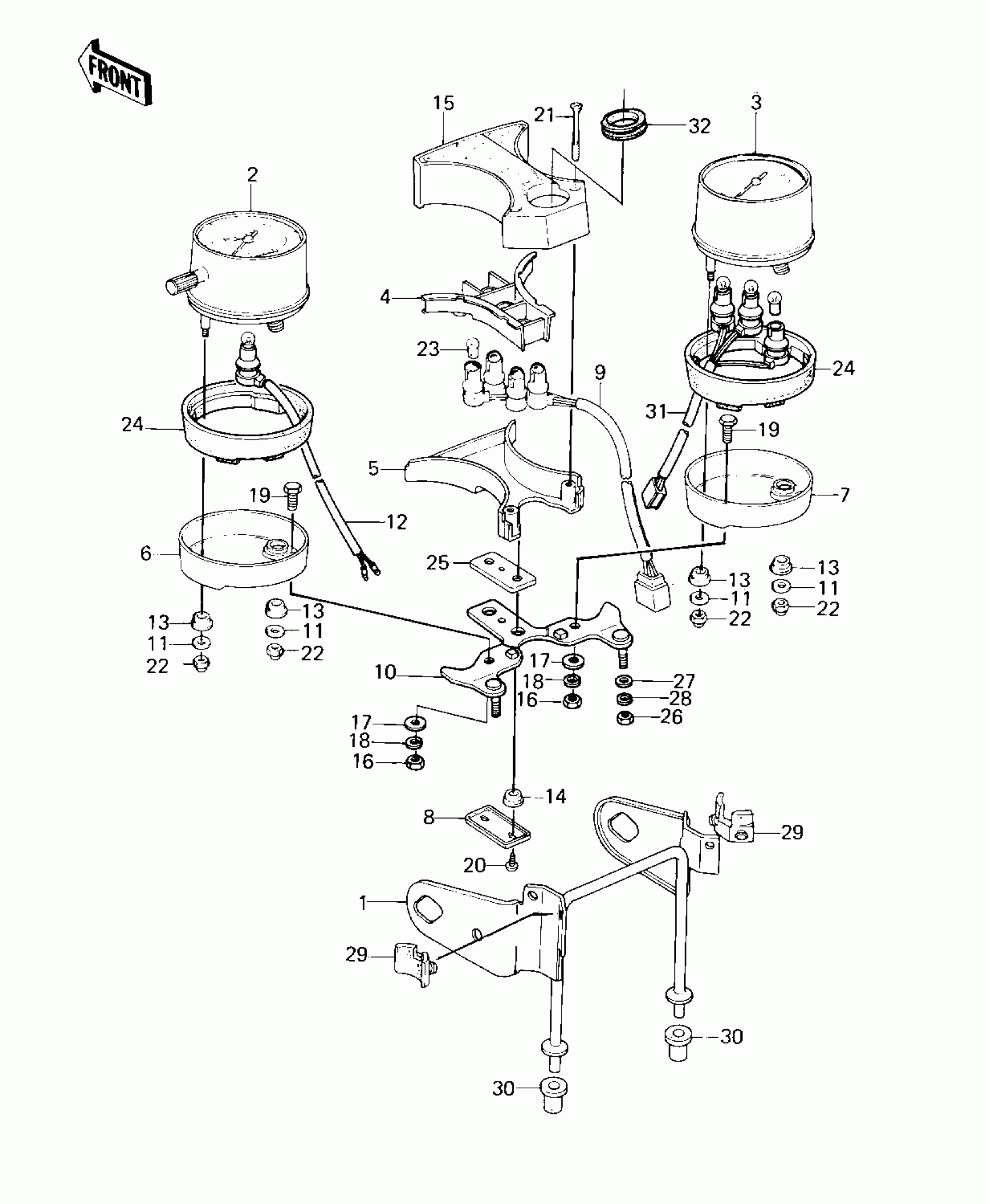

1980 Kawasaki LTD Belt Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,HEAD LAMP

11034-1535

1
Out of stock

2

SPEEDOMETER,MPH

25005-1064

1
Out of stock

2

SPEEDOMETER,KPH (Canada)

25005-1053

1
Out of stock

3

TACHOMETER,X1000R/MIN

25015-1068

1
Out of stock

4

PLATE,SOCKET

13169-1133

1
Out of stock

5

COVER,PILOT BOX,LWR

14025-1093

1
Out of stock

6

COVER,SPEEDOMETER

14025-1094

1
Out of stock

7

COVER,TACHOMETER

14025-1095

1
Out of stock

8

COVER,PILOT BOX,DAMPER

14025-1096

1
Out of stock

9

SOCKET ASSY,PILOT BOX

23008-1031

1
Out of stock

10

BRACKET-METER

25008-1021

1
Out of stock

11

WASHER,5.2X16X1.2

25009-004

1
Out of stock

12

SOCKET ASSY

25010-022

1
Out of stock

13

DAMPER,METER

25019-013

1
Out of stock

14

DAMPER,METER

25019-023

1
Out of stock

15

COVER,PILOT BOX,UPP

25023-1008

1
Out of stock

16

NUT,8MM

311B0800

1
Out of stock

17

WASHER PLAIN 8MM

411B0800

1
Out of stock

18

WASHER SPRING 8MM

461F0800

1
Out of stock

19

BOLT,8X16

92001-1154

1
Out of stock

20

SCREW,TAPPING,4X10

92009-1040

1
Out of stock

21

SCREW-CSK-RD-CROS,4X45

222C0445

1
Out of stock

22

NUT-CAP,5MM

322N0500

1
Out of stock

23

BULB 12V 3W

92069-018

1
Out of stock

24

DAMPER,METER

92075-1498

1
Out of stock

25

DAMPER,PILOT BOX

92075-1136

1
Out of stock

26

NUT 6MM

311B0600

1
Out of stock

27

WASHER PLAIN 6MM

411B0600

1
Out of stock

28

WASHER SPRING 6MM

461F0600

1
Out of stock

29

DAMPER,BRACKET

92075-1106

1
Out of stock

30

DAMPER,BRACKET

92075-1107

1
Out of stock

31

SOCKET ASSY,TACHOMETR

23008-1049

1
Out of stock

32

DAMPER,PILOT BOX

92075-1204

1
Out of stock
