1980 Kawasaki LTD Belt Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

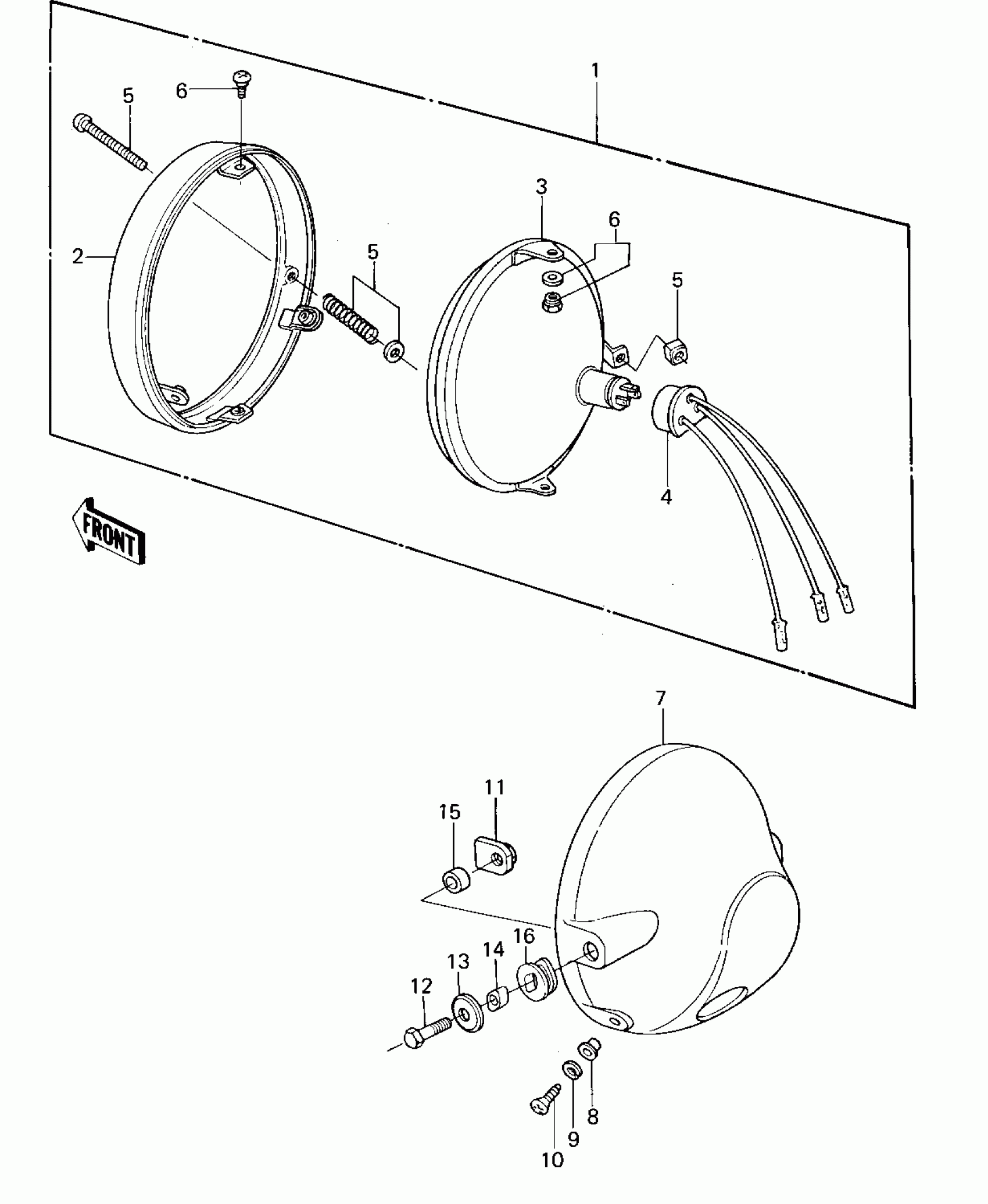

1980 Kawasaki LTD Belt Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LIGHT UNIT HEAD

23003-022

1
Out of stock

2

RIM-LAMP

23006-044

1
Out of stock

3

LENS-COMP,"001-1269" MARK

23007-059

1
Out of stock

4

SOCKET ASSY,HEAD LAMP

23008-037

1
Out of stock

5

SCREW ASY FOCUS ADJST

23013-008

1
Out of stock

6

SCREW ASY LENS UNIT

23013-009

1
Out of stock

7

BODY-COMP-HEAD LAMP,F.BLACK

23005-047-21

1
Out of stock

8

WASHER

23021-010

1
Out of stock

9

WASHER SPRING 5MM

461F0500

1
Out of stock

10

SCREW,5MM

92011-024

1
Out of stock

11

NUT,10MM

23020-021

1
Out of stock

12

BOLT,10X35

92007-024

1
Out of stock

13

WASHER

92022-289

1
Out of stock

14

COLLAR,HEAD LAMP

92027-1129

1
Out of stock

15

COLLAR,10.2X13.4X8.1

92027-231

1
Out of stock

16

DAMPER,LAMP

92075-128

1
Out of stock
