1980 Kawasaki LTD Belt Ignition Diagram

← All diagrams

Find the part on the Ignition diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

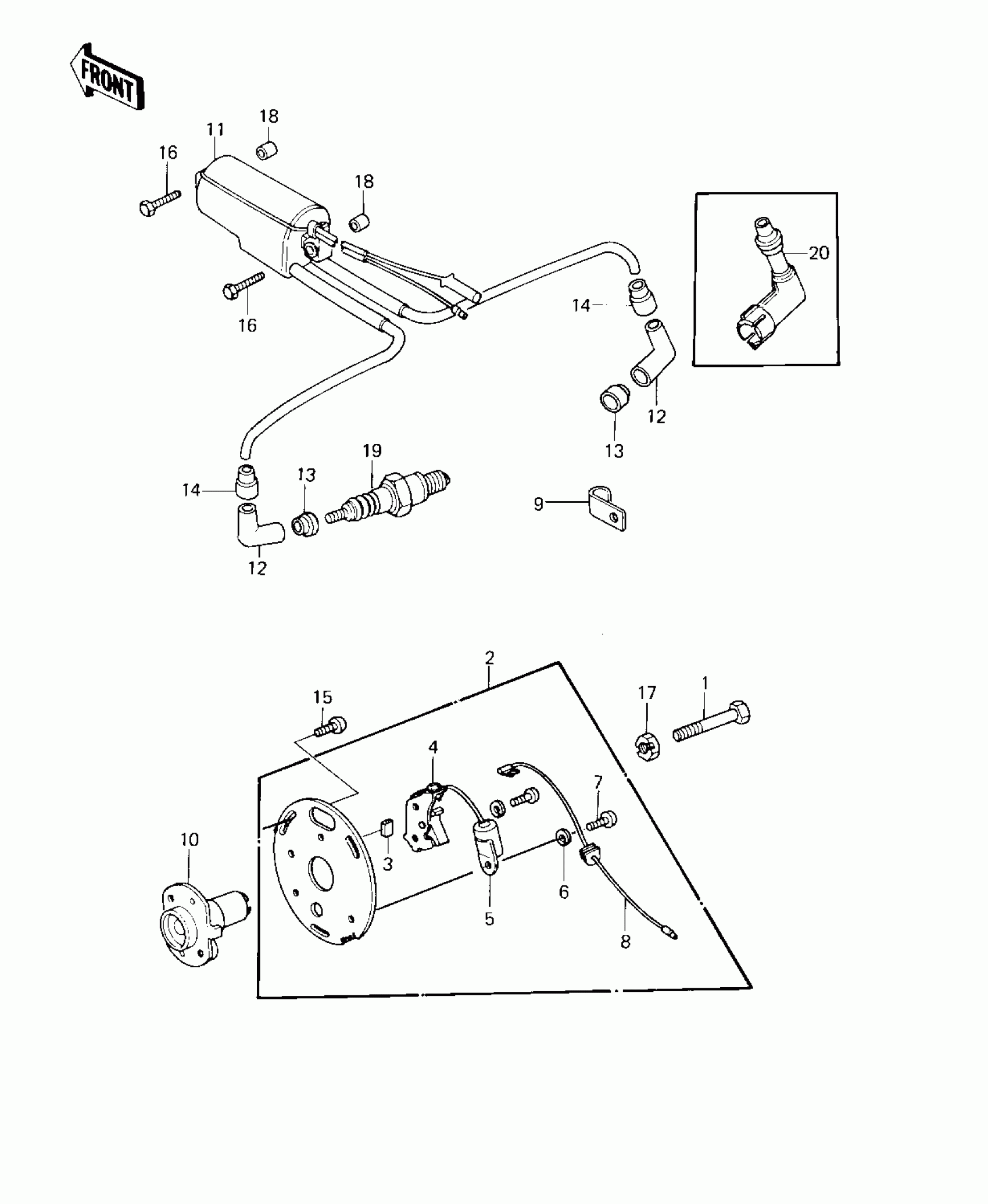

1980 Kawasaki LTD Belt Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,8X63

92001-1397

1
Out of stock

2

BREAKER ASSY,CONTACT

21008-1014

1
Out of stock

3

BRUSH,OIL

21019-005

1
Out of stock

4

BREAKER,CONTACT

21008-027

1
Out of stock

5

CONDENSER

21013-1004

1
Out of stock

6

WASHER SPRING 6MM

461F0600

1
Out of stock

7

SCREW PAN HEAD 4X6

220B0406

1
Out of stock

8

WIRE,LEAD,BREAKER

26011-1030

1
Out of stock

9

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

10

GOVERNOR,BREAKER

21148-1002

1
Out of stock

11

COIL-IGNITION

21121-1174

1
Out of stock

12

CAP-SPARK PLUG,RTFM20

21130-1007

1
Out of stock

13

GROMMET,PLUG CAP

21131-004

1
Out of stock

14

GROMMET,HIGH TENSION

21132-005

1
Out of stock

15

SCREW-PAN-CROS

220B0512

1
Out of stock

16

BOLT, IGNITION COIL

92003-170

1
Out of stock

17

WASHER,BREAKER GOVERNOR

92022-244

1
Out of stock

18

COLLAR,IGNITION COIL

92027-276

1
Out of stock

19

SPARK PLUG B7ES

B7ES

1
Out of stock

20

CAP-ASSY-PLUG

21160-005

1
Out of stock
