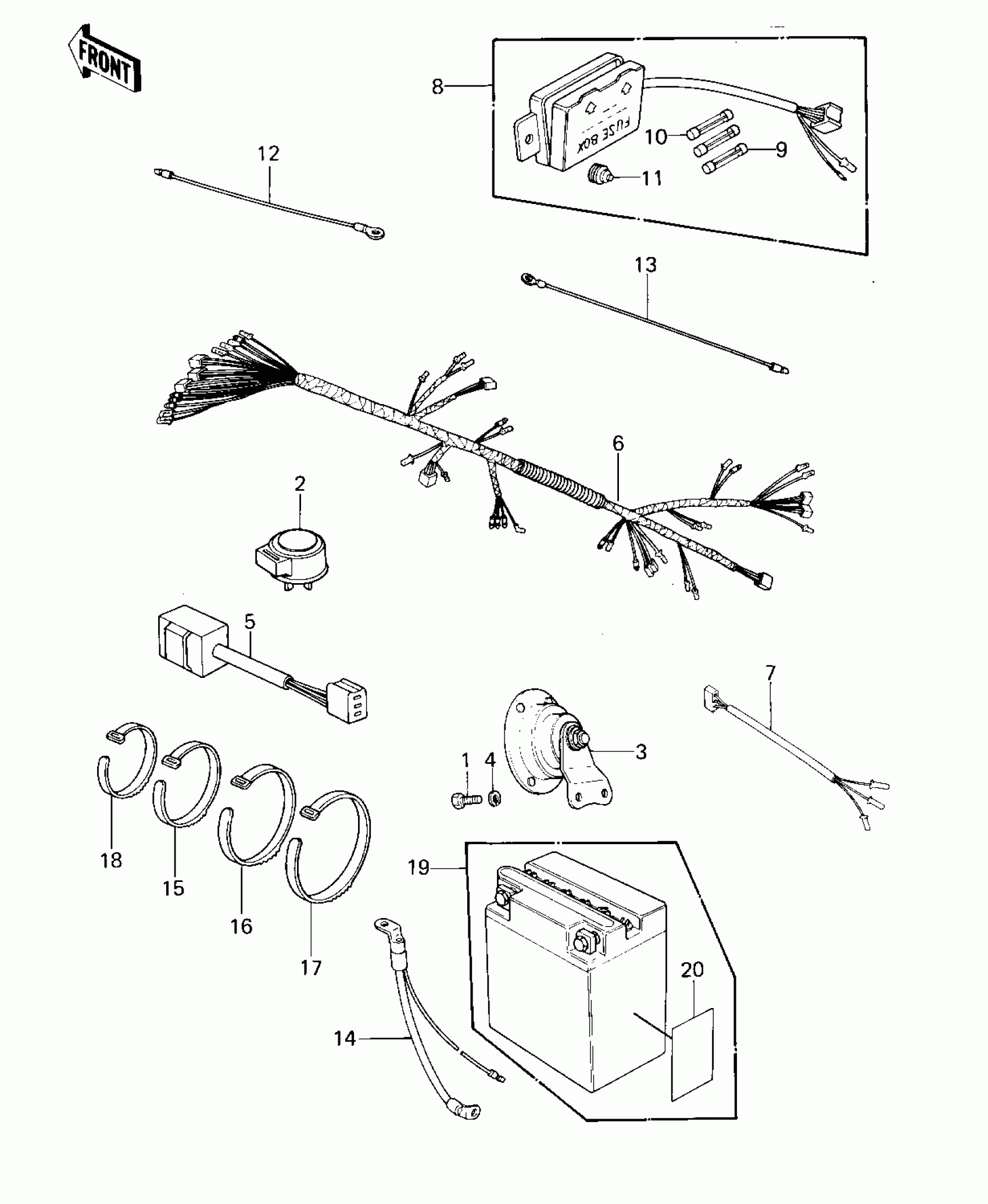

Kawasaki LTD Belt CHASSIS ELECTRICAL EQUIPMENT ('80 D1) Diagram

#

Description
Price

1

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

2

RELAY-ASSY,TURN SIGNAL

27002-011

$100.61

3

HORN

27003-1019

$145.18

4

WASHER SPRING 8MM

461F0800

Unavailable

5

SWITCH,BK LIGHT IND

28019-002

$66.29

6

HARNESS,MAIN

26001-1127

Unavailable

7

WIRING HARNESS,TL LMP

26002-046

Unavailable

8

FUSE-ASSY

26004-035

$75.54

9

FUSE,10A,L=25

26006-003

$4.72

10

FUSE,20A,L=25

26006-005

$5.06

11

DAMPER,FUSE

92075-279

$6.45

12

LEAD WIRE,SIGNAL LAMP

26011-063

$8.60

13

WIRE-LEAD,L=285

26011-095

$11.60

14

WIRE LEAD,BATTERY GRD

26011-1022

Unavailable

15

BAND,L=123

92072-030

$5.00

16

BAND,L=149

92072-031

$5.00

17

BAND,L=218

92072-032

$5.00

18

BAND,L=95

92072-067

Unavailable

19

FB BAT FB12A-A

26012-1004

$95.75

20

LABEL-WARNING,BATTERY

56040-1036

Unavailable
