1980 Kawasaki LTD Belt Battery Case Diagram

← All diagrams

Find the part on the Battery Case diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

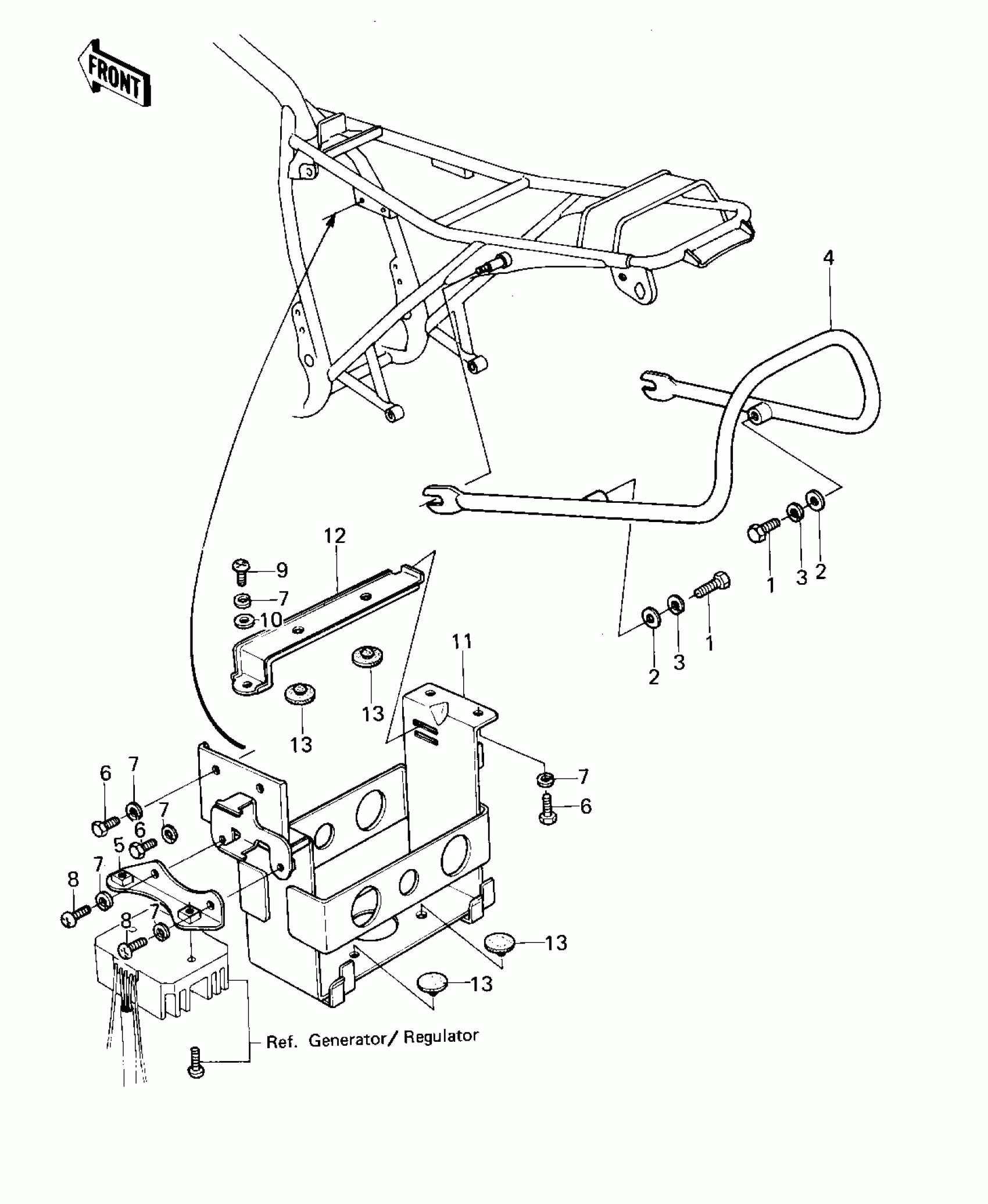

1980 Kawasaki LTD Belt Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

2

WASHER PLAIN 8MM

410B0800

1
Out of stock

3

WASHER SPRING 8MM

461F0800

1
Out of stock

4

STAY,REAR

35011-1033

1
Out of stock

5

BRACKET-A,REGULATOR

11036-1105

1
Out of stock

6

BOLT-UPSET,6X16

112G0616

1
Out of stock

7

WASHER SPRING 6MM

461F0600

1
Out of stock

8

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

9

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

10

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

11

CASE,BTTELY

32097-1022

1
Out of stock

12

BAND,BATTERY

92072-1034

1
Out of stock

13

DAMPER,RUBBER

92075-078

1
Out of stock
