1980 Kawasaki LTD Belt Ignition Switch/locks/reflectors ('80 D1 Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors ('80 D1 diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

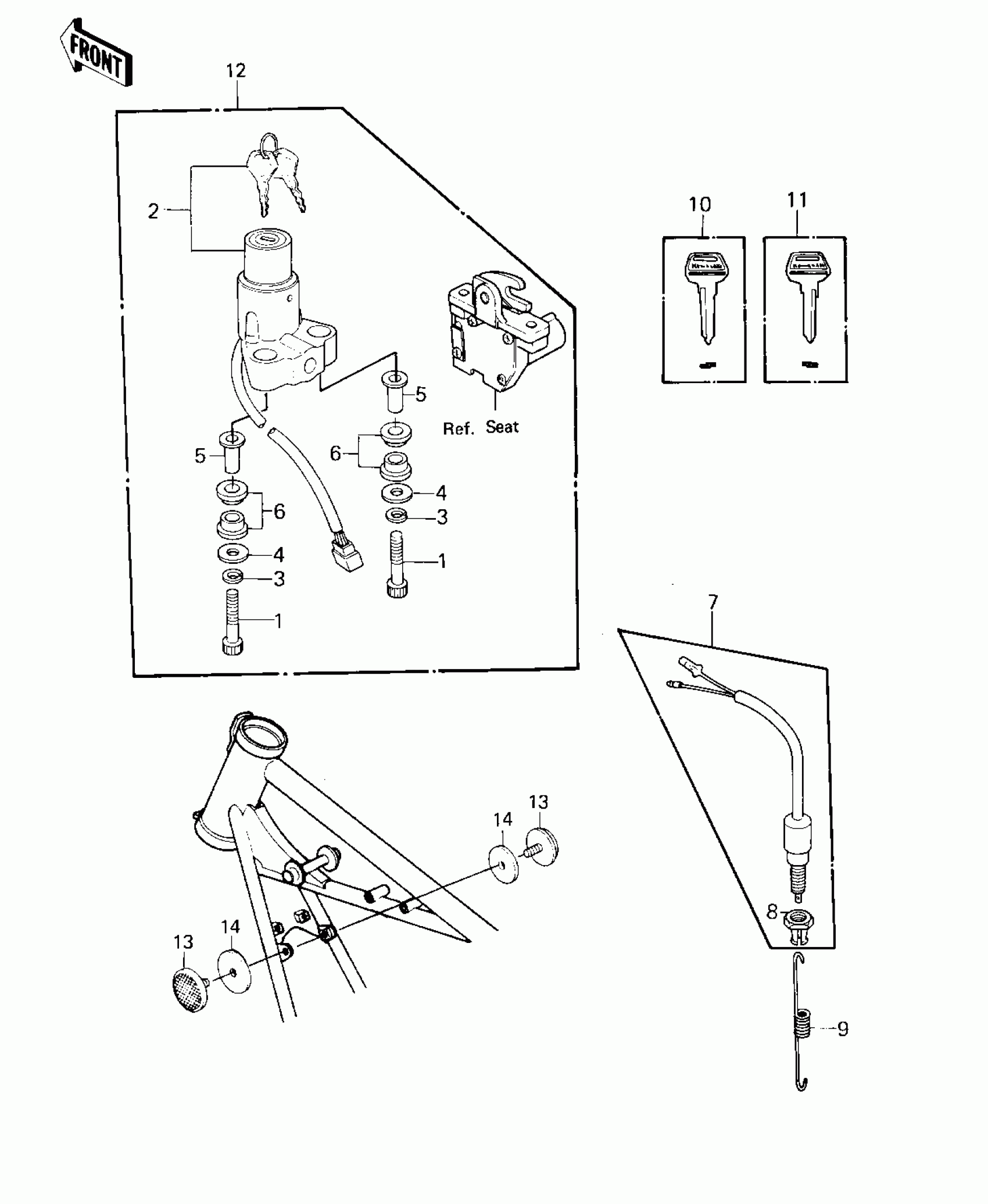

1980 Kawasaki LTD Belt Ignition Switch/locks/reflectors ('80 D1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,ALLEN,8X45

120P0845

1
Out of stock

2

SWITCH ASSY,IGNITION

27005-1033

1
Out of stock

3

WASHER SPRING 8MM

461F0800

1
Out of stock

4

WASHER,8.5X20X1.6

92022-1561

1

$3.43

In stock

5

COLLAR,IG SWITCH

92027-1135

1
Out of stock

6

DAMPER,IG SWITCH

92075-1119

1
Out of stock

7

SWITCH,BRAKE LAMP

27010-025

1

$27.60

In stock

8

1

$27.60

In stock

9

1

$23.12

In stock

10

KEY-LOCK,BLANK,#A

27008-1034

—

$17.63

In stock

11

KEY-LOCK,BLANK,#B

27008-1035

—
Out of stock

12

LOCK SET,KZ400B2

27004-5048

1
Out of stock

13

1

$21.56

In stock

14

DAMPER,REFLECTOR

92094-011

1

$4.08

In stock
