1980 Kawasaki LTD Belt Generator/regulator Diagram

← All diagrams

Find the part on the Generator/regulator diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

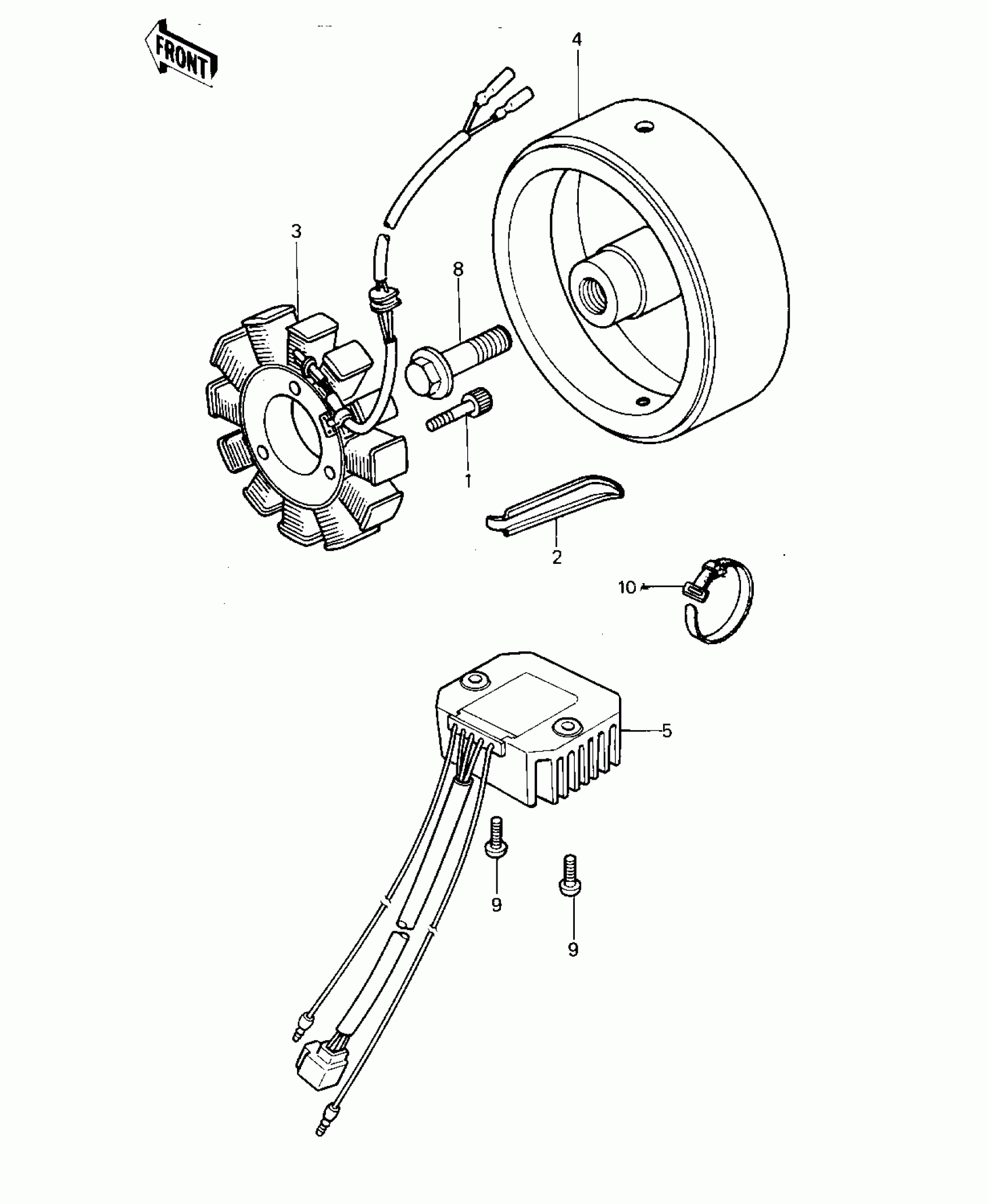

1980 Kawasaki LTD Belt Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-SOCKET,6X28

120P0628

1
Out of stock

2

PLATE,LEAD CLAMP

13169-1008

1
Out of stock

3

STATOR.ASSY,GENERATER

21003-1009

1
Out of stock

4

FLYWHEEL

21050-1004

1
Out of stock

5

REGULATOR,VOLTAGE

21066-1014

1
Out of stock

6

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

7

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

8

BOLT,10X40

92002-1303

1
Out of stock

9

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

10

BAND,L=123

92072-030

1
Out of stock
