2008 Suzuki LT-Z400 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2008 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

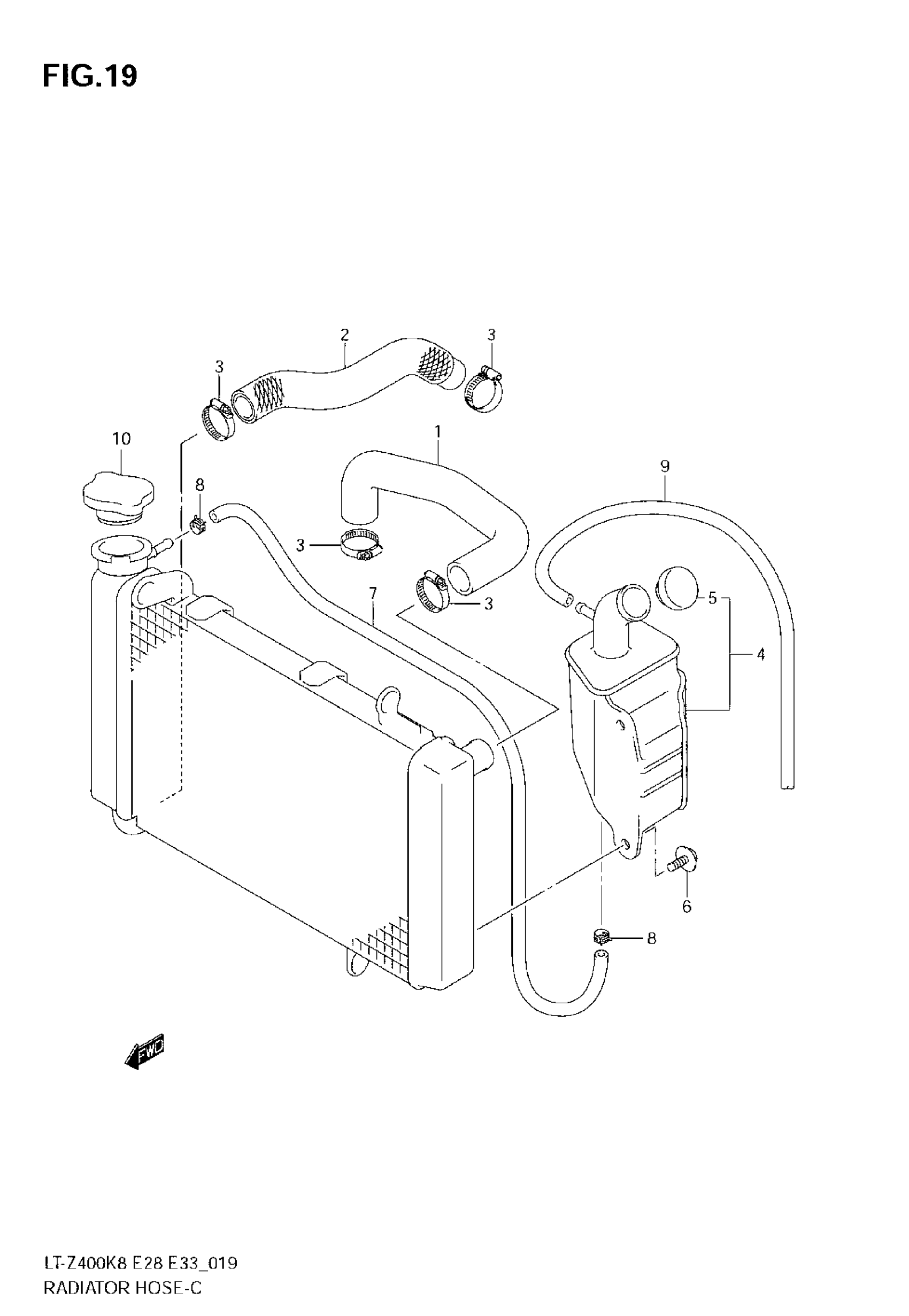

2008 Suzuki LT-Z400 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, RADIATOR INLET

17851-07G00

1
Out of stock

2

HOSE, RADIATOR OUTLET

17852-07G00

1
Out of stock

3

CLAMP

09402-32512

4
Out of stock

4

TANK ASSY, RESERVOIR | Includes Item(s) 5

17910-07G00

1
Out of stock

5

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

6

SCREW

09116-06168

2
Out of stock

7

HOSE, INLET

17981-45C00

1
Out of stock

8

CLIP

09401-08411

2
Out of stock

9

HOSE, OVERFLOW

17981-19F00

1
Out of stock

10

CAP

17730-14G00

1
Out of stock
