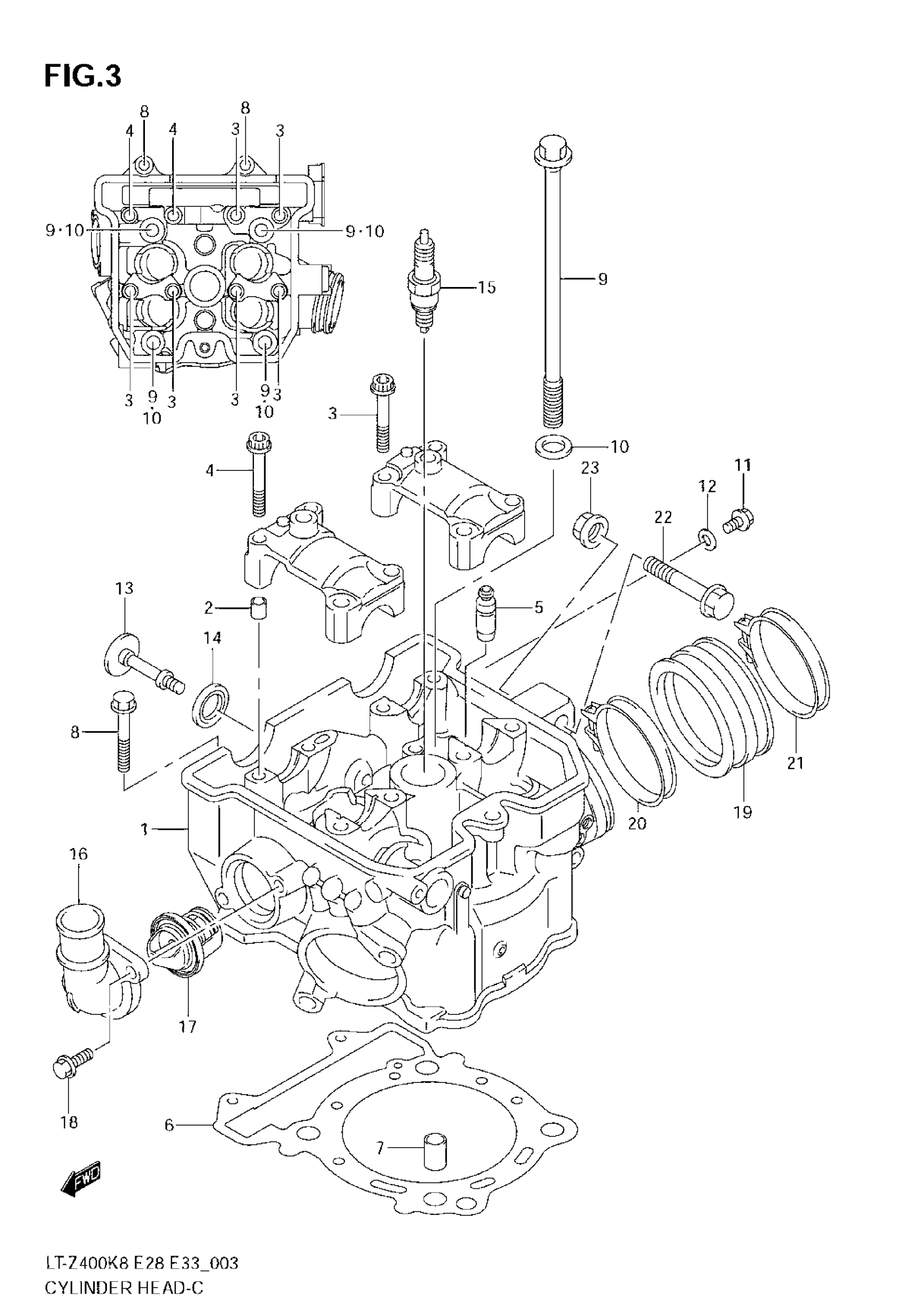

Suzuki LT-Z400 (2008) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 4

11100-07G00

Unavailable

2

PIN

09206-08001

$1.77

3

BOLT

07120-0640B

$3.04

4

BOLT

07120-0645B

$3.08

5

GUIDE, VALVE (OS.0.3) | OPT

11115-20E70

$30.22

6

GASKET, CYLINDER HEAD

11141-29F01

$37.97

7

PIN (L:18)

04211-13189

$2.19

8

BOLT (6X39)

09103-06504

$2.21

9

BOLT (10X175)

09103-10276

$14.44

10

WASHER (10.5X19X2)

09160-10082

$1.62

11

PLUG, OIL GALLERY

01550-0610B

$2.43

12

GASKET

09168-06023

$2.01

13

BOLT, CYLINDER HEAD SIDE FACE

11161-33E00

$9.32

14

WASHER, SIDE FACE BOLT

11191-13E00

$4.16

15

SPARK PLUG (NGK,CR7E)

09482-00516

$5.75

15

SPARK PLUG (DENSO,U22ESR-N)

09482-00515

$5.46

15

SPARK PLUG (NGK,CR6E) | OPT

09482-00528

$5.75

15

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$5.99

15

PLUG SPARK (CR9E) | OPT

09482-00458

$5.75

15

SPARK PLUG (DENSO,U20ESR-N) | OPT

09482-00529

$5.67

15

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$5.58

15

SPARK PLUG (DENSO,U27ESR-N) | OPT

09482-00459

$5.58

16

COVER, THERMOSTAT

17661-29F00

$46.25

17

THERMOSTAT WATER This part replaces 17670-33400.

17670-33401

$32.59

18

BOLT

01547-0616B

$2.43

19

PIPE,INTAKE This part replaces 13111-07G10.

13111-07G11

$14.35

20

CLAMP, HEAD

09402-58208

$4.84

21

CLAMP, CARB

09402-52208

$4.84

22

BOLT (10X50)

09103-10235

$6.15

23

NUT

09159-10115

$3.21
