2008 Suzuki LT-Z400 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2008 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

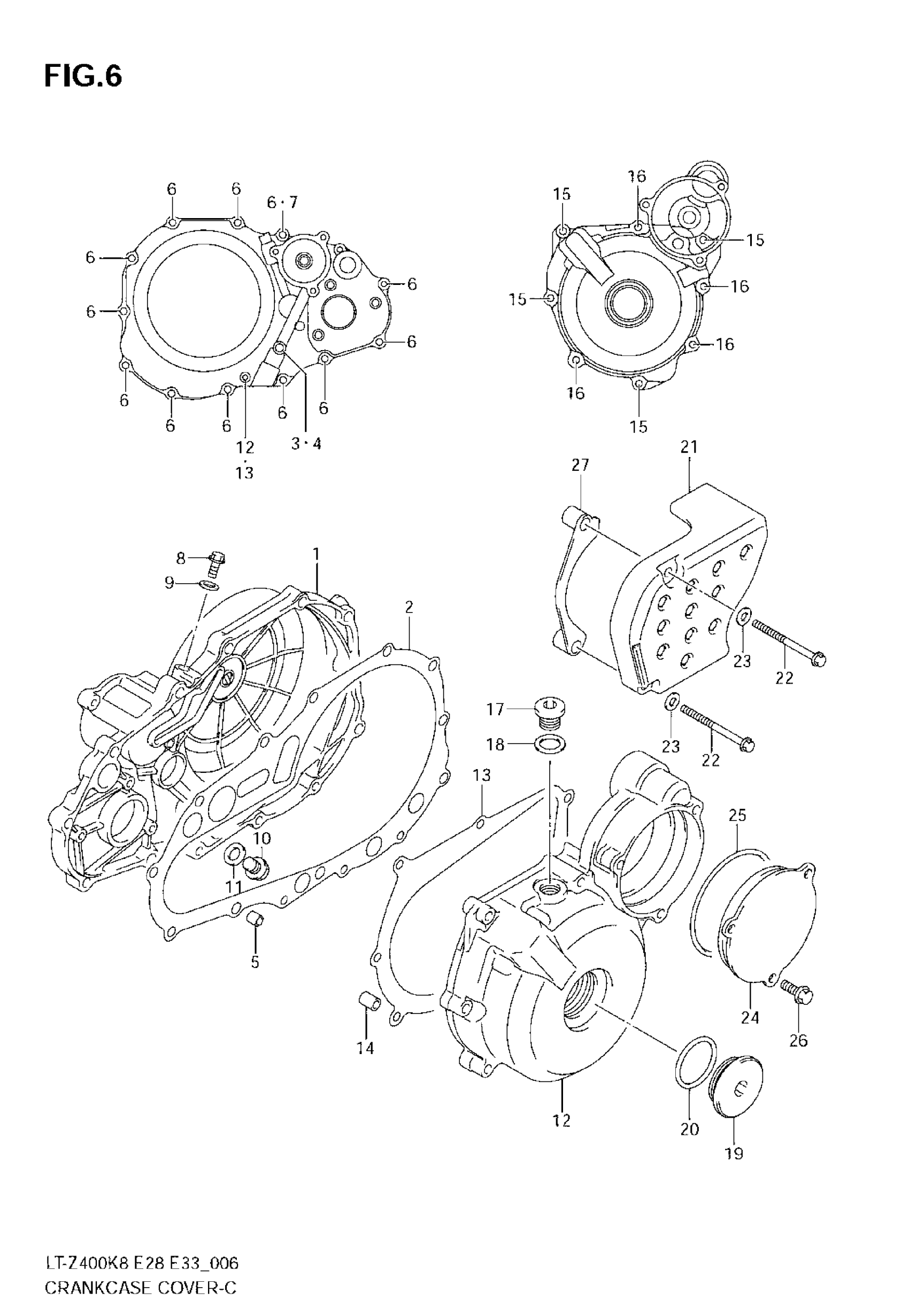

2008 Suzuki LT-Z400 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-07G20

1
Out of stock

2

GASKET, CLUTCH COVER

11482-07G00

1
Out of stock

3

PLUG, OIL GALLERY

09106-08116

1
Out of stock

4

GASKET (8.2X14X1)

09168-08016

1
Out of stock

5

PIN

04211-09149

2
Out of stock

6

BOLT

01547-0630B

12
Out of stock

7

GASKET

09168-06023

1
Out of stock

8

PLUG, OIL GALLERY

01547-0612B

1
Out of stock

9

GASKET

09168-06023

1
Out of stock

10

PLUG, OIL GALLERY (12X10)

09247-12006

1
Out of stock

11

GASKET (12.1X16.2X1.2)

09168-12002

1
Out of stock

12

COVER, MAGNETO

11351-07G10

1
Out of stock

13

GASKET, MAGNETO COVER

11483-07G00

1
Out of stock

14

PIN

04211-09149

2
Out of stock

15

BOLT

01547-0630B

4
Out of stock

16

BOLT

01547-0640B

4
Out of stock

17

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

18

GASKET (13.8X18.8X0.4)

09168-14002

1
Out of stock

19

PLUG, CRANK HOLE

09259-36016-20H

1
Out of stock

20

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

21

COVER, ENGINE SPROCKET

11360-07G00

1
Out of stock

22

BOLT

01547-0660B

2
Out of stock

23

WASHER (6.5X14X2.0)

09160-06126

2
Out of stock

24

COVER, STARTER IDLE GEAR

11352-29F50

1
Out of stock

25

O RING (D:2.6,ID:67.1)

09280-71008

1
Out of stock

26

BOLT

01547-0616B

3
Out of stock

27

PLATE, CHAIN GUIDE

27640-07G00

1
Out of stock
