Description

Price

1

CHAIN, CAMSHAFT DRIVE

12760-29F01

$93.01

2

GUIDE, CAM CHAIN NO.1

12771-29F00

$32.01

3

GUIDE, CAM CHAIN NO.2

12782-29F00

$28.03

4

TENSIONER,CAM C This part replaces 12811-07G00.

12811-07G01

$53.00

5

BOLT,CAM CHAIN TENSIONER

12812-35C00

$8.59

6

WASHER

08211-06181

$1.79

7

ADJUSTER ASSY, TENSIONER | Includes Item(s) 8 - 10

12830-07G00

$133.29

8

GASKET

12837-24F10

$4.57

9

PLUG

12833-05A00

$21.62

10

SPRING

12831-39F00

$5.67

11

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.11

12

BOLT

07130-0625B

$2.82

13

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

$4.53

14

SCREW

09126-06011

$2.09

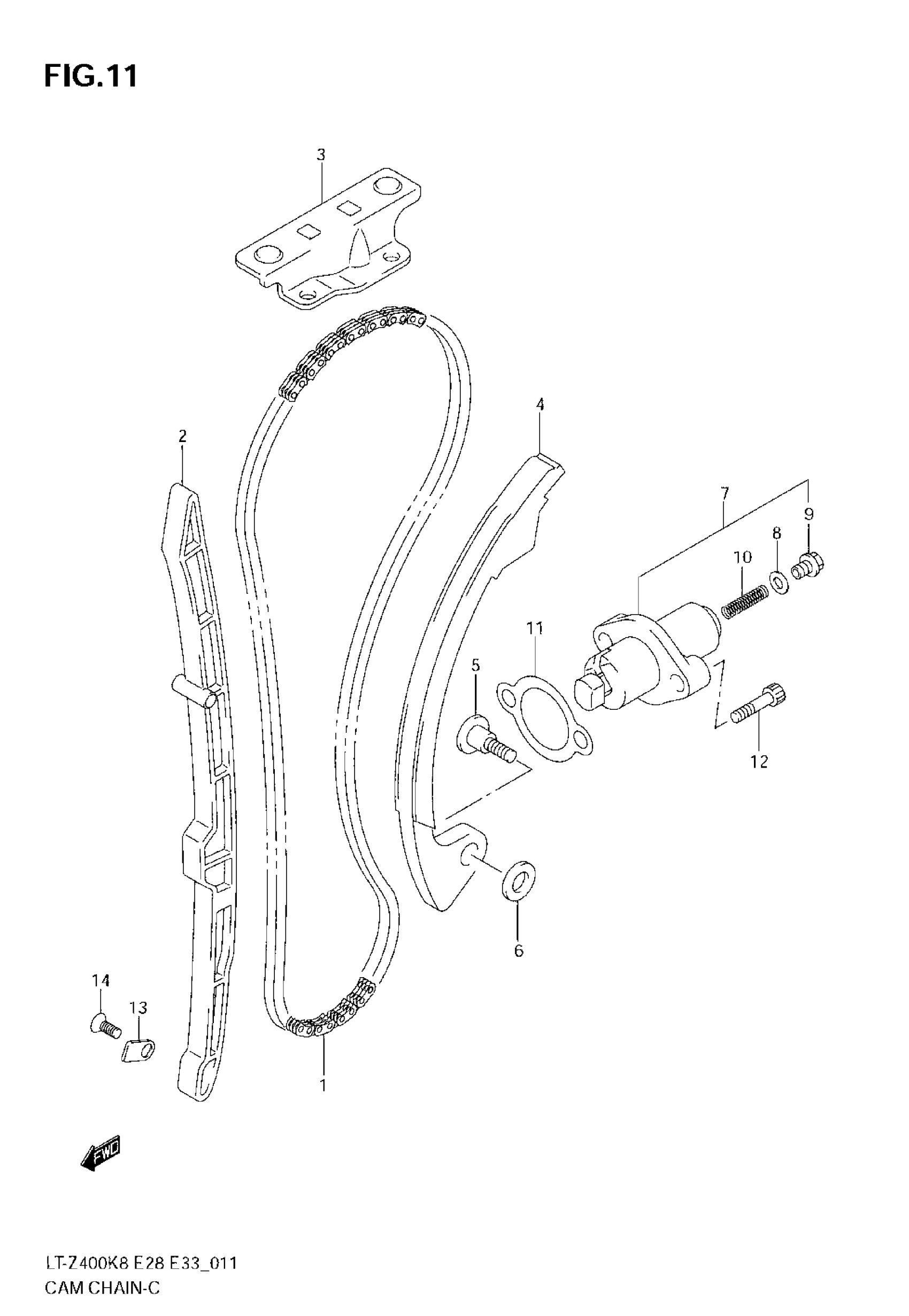

Suzuki LT-Z400 (2008) CAM CHAIN Diagram
