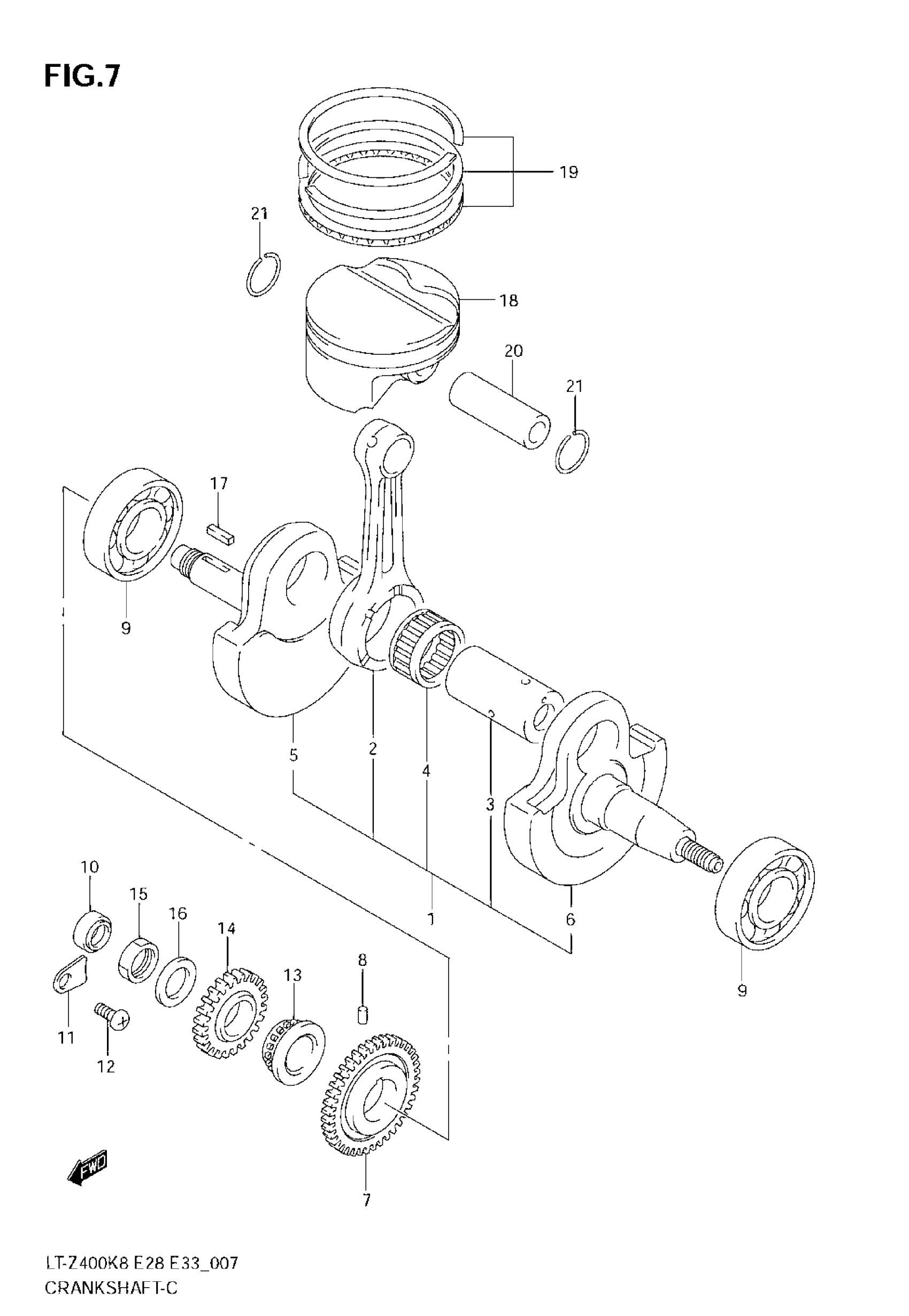

Find the part on the Crankshaft diagram for your 2008 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki LT-Z400 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6 This part replaces 12200-07G10.

12200-07G11

1
Out of stock

2

.CONNECTING ROD This part replaces 12160-29F01-0B0.

12160-29F10-0B0

1
Out of stock

3

.PIN, CRANK This part replaces 12210-29F10.

12210-29F20

1
Out of stock

4

.BEARING (35X43X22) This part replaces 09263-35041-0B0.

09263-35047-0B0

1
Out of stock

5

CRANKSHAFT, RH This part replaces 12221-07G00.

12221-07G01

1
Out of stock

6

CRANKSHAFT, LH

12261-07G00

1
Out of stock

7

GEAR, BALANCER DRIVE

12661-29F00

1
Out of stock

8

PIN

09261-05005

1
Out of stock

9

BEARING

09262-30100

2
Out of stock

10

OIL SEAL, RH (14X24X6)

09282-14003

1
Out of stock

11

RETAINER, OIL SEAL RH

24742-18A00

1
Out of stock

12

SCREW

02112-0612B

1
Out of stock

13

SPROCKET, CAM CHAIN DRIVE

12731-29F10

1
Out of stock

14

GEAR, PRIMARY DRIVE

21111-29F10

1
Out of stock

15

NUT

09140-18012

1
Out of stock

16

WASHER

09164-18008

1
Out of stock

17

KEY, GEAR

09421-05002

1
Out of stock

18

PISTON

12111-29F00-0F0

1
Out of stock

19

RING SET, PISTON

12140-29F00

1
Out of stock

20

PIN, PISTON

12151-24F10

1
Out of stock

21

CIRCLIP

09381-20004

2
Out of stock
