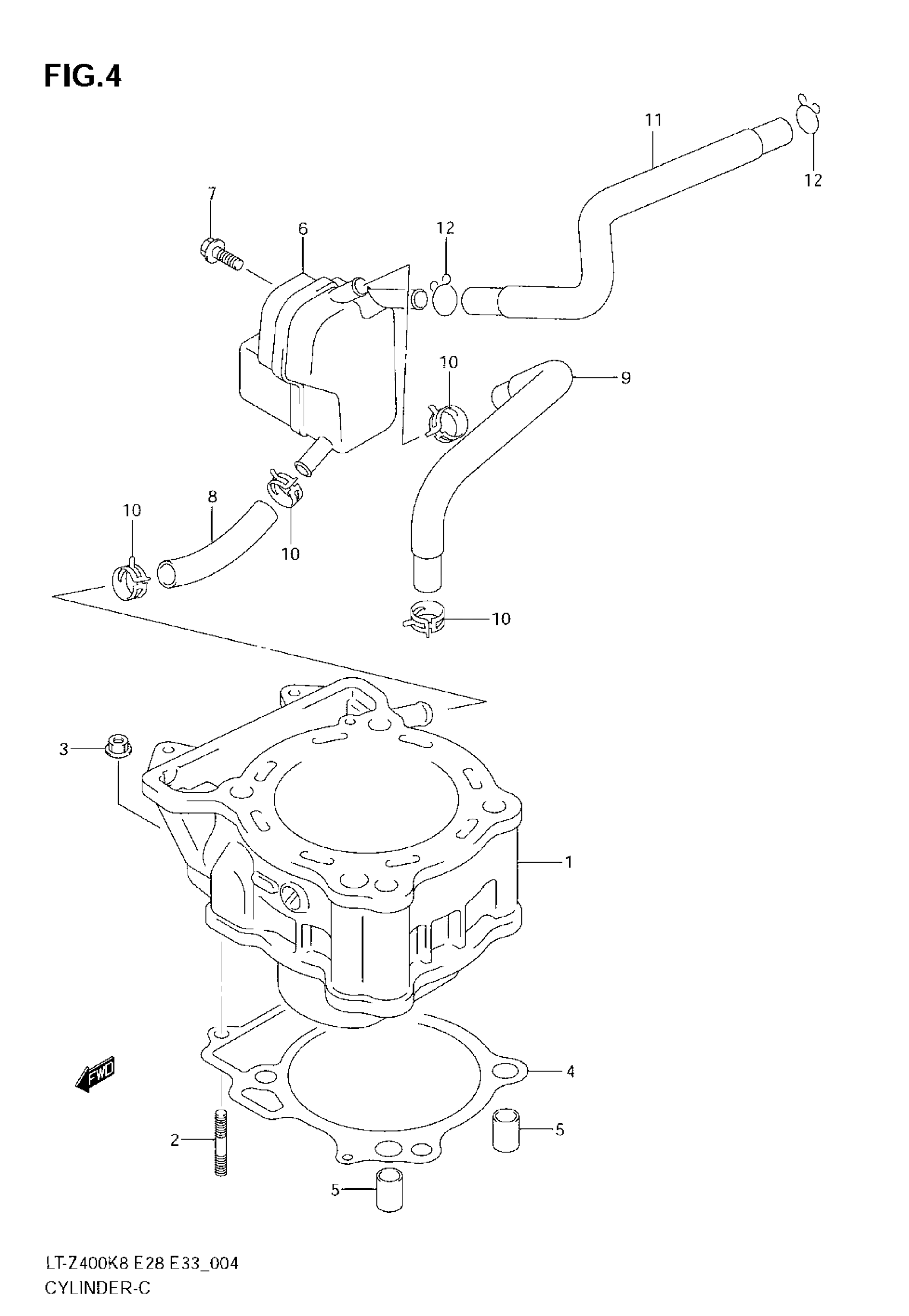

Suzuki LT-Z400 (2008) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-29F20-0F0

$1,061.57

2

BOLT,STUD

01421-0625B

$2.50

3

NUT

08316-1006B

$2.50

4

GASKET, CYLINDER

11241-29F11

$21.39

5

PIN

04211-13189

$2.19

6

TANK, OIL RETURN

11330-07G00

$82.08

7

BOLT

01547-0610B

$2.47

8

HOSE, BREATHER

11332-07G00

$10.25

9

HOSE, BREATHER

11333-07G00

$22.87

10

CLIP

09401-15404

$2.24

11

HOSE,BREATHER This part replaces 11334-07G00.

11334-07G01

$18.52

12

CLIP

09401-15101

$2.28
