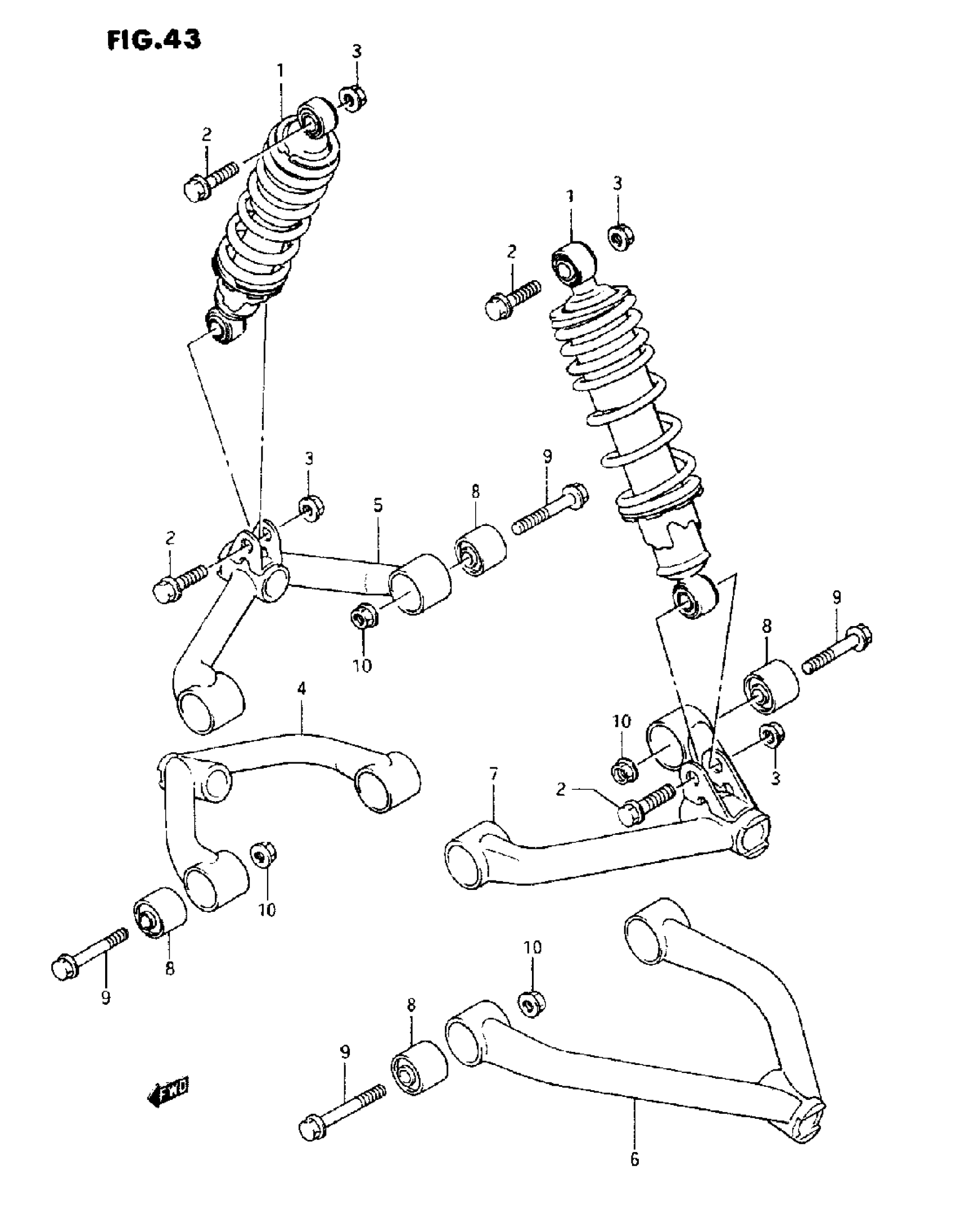

Find the part on the Suspension Arm diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-F250 Suspension Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-20B00-019

2
Out of stock

2

BOLT, SHOCK ABSORBER (10X37)

09103-10019

4
Out of stock

3

NUT This part replaces 08319-31103.

08319-3110A

4
Out of stock

4

ARM, SUSPENSION, LOWER RH

52410-20B00

1
Out of stock

5

ARM, SUSPENSION, UPPER RH

52430-20B00

1
Out of stock

6

ARM, SUSPENSION, LOWER LH

52420-20B00

1
Out of stock

7

ARM, SUSPENSION, UPPER LH

52440-20B00

1
Out of stock

8

BUSH, SUSPENSION ARM

09319-10055

8
Out of stock

9

BOLT, SUSPENSION ARM PIVOT (10X60)

09103-10107

8
Out of stock

10

NUT This part replaces 08319-31105.

08319-3110A

8
Out of stock
